MP3 Compatible Annunciator
RFV
MP3 Compatible Annunciator

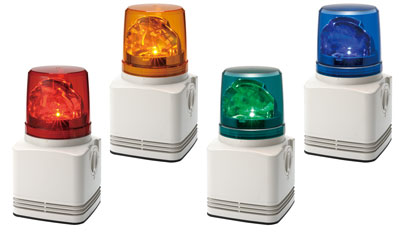

The RFV Series is a combination LED rotating beacon with a 4 channel, MP3 programmable sound unit.

Product Features

• Field programmable with SD card. (Sold separately)
Message capacity of up to 64 seconds (64kbit/s) can be played back by a bit input (4 channels) or binary input (15 channels).
• Volume is adjustable from 0 to 95dB (at 1m) to fit various environments.
• Safe for use at high vibration environments with a 4.5G vibration resistant design.
• CE, RoHS, IP54, (UL, c-UL pending)
• Unique features
1. Reduced maintenance with long service-life power LED that lasts over 5 years with 24/7 continuous operation.
2. High visibility with Special Optical Reflector.
3. Special gear driven mechanism provides reliable operation even after 10 years of no operation.
4. Tight Locking Dome will stay on even in high vibration situations.

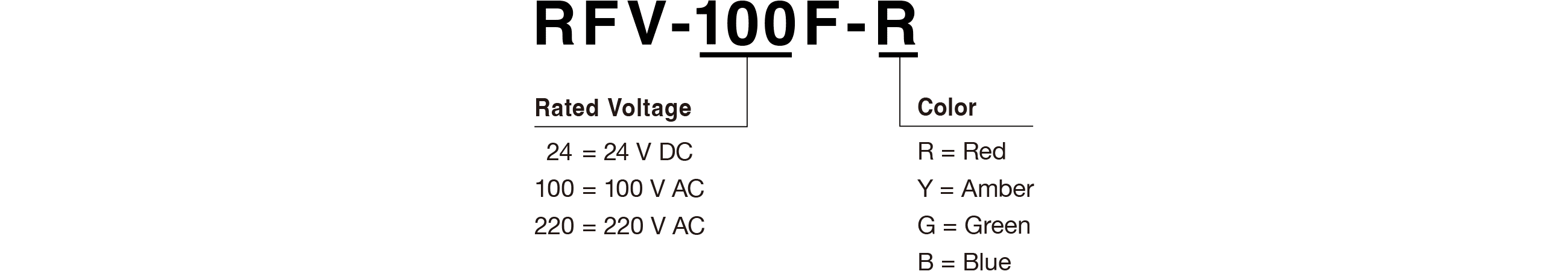

Model Specifications

DIMENSIONS - 100mm diameter
OPERATING VOLTAGES - 24V DC
- 100V AC
- 220V AC
AUDIBLE STYLE - 64 seconds total recording time: factory recorded with 4 channel bit input; or 15 channel binary input
* MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thompson Licensing
VOLUME - Maximum 95dB at 1 meter with adjustable volume control
BODY COLOR - Body: Beige
GLOBE COLOR - Red
- Amber
- Green
- Blue
GLOBE MATERIAL - Polycarbonate Resin
PROTECTION RATINGS - IP54

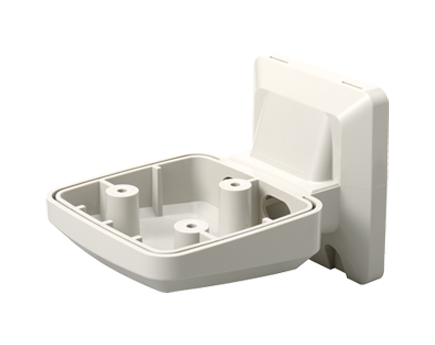

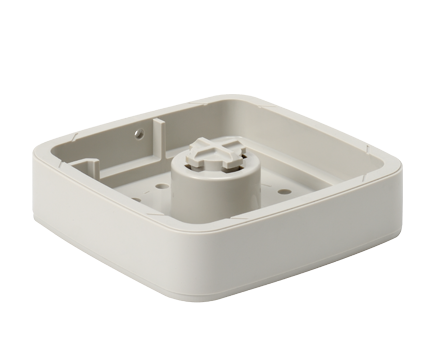

OPTIONS - RF-001
- RF-002
- SDV-128P
