100mm LED & Brushless Motor Revolving Warning Light
RHEM

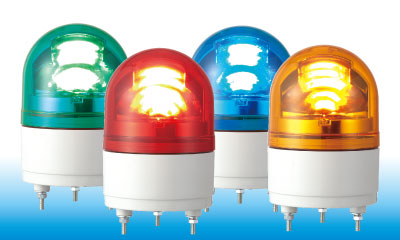

100mm LED & Brushless Motor Revolving Warning Light
The RHEM series is a compact LED + Brushless Motor revolving warning light featuring enhanced illumination with 1super bright LED chip. It has many advantages compared to a rotating beacon with incandescent bulb and standard motor.

Product Features

· Colors available in Red, Amber, Green and Blue.
· Uses a brushless motor
· Maintenance-free with super-bright, long-lasting LEDs.
· Impact and heat resistant dome lens made from polycarbonate resin material.
· Impact and heat resistant main body is made from ABS resin material.
· CE Compliant for 12V DC and 24V DC types only.

Model Specifications

SIZE - 100mm diameter
OPERATING VOLTAGES - 12V DC
- 24V DC
- M2 ( 100V~200V )
MOUNTING - Direct Mount
- Indoor: Upright, Inverted, Sideways
- Outdoor: Upright Only
BODY STYLE - Round base
- Round top, colored dome
- Optional SZ-200A gasket to increase the IP Rating
BODY COLOR - Body: Beige
GLOBE COLOR - Light Source: LED
- Dome Colors: Red / Amber / Green / Blue
GLOBE MATERIAL - Polycarbonate Resin
CONFORMITY STANDARDS - CE Marking
- RoHS Compliant
PROTECTION RATINGS - IP-23 without optional SZ-200A gasket
- IP-55 with optional SZ-200A gasket
OPTIONS - SZ-200A
