100mm LED & Brushless Motor Revolving Warning Light
RKEM

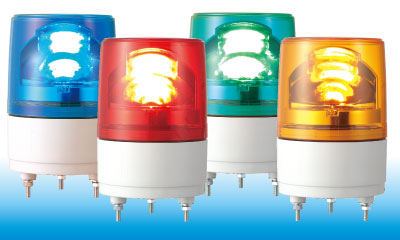

100mm LED & Brushless Motor Revolving Warning Light
The RKEM series is a compact LED + Brushless Motor revolving warning light featuring enhanced illumination with 1super bright LED chip, a squared-off shaped dome and an innovative light dispersion reflector system.

Product Features

· Colors available: Red, Amber, Green, Blue.
· Brushless Motor
· Energy-Efficient: Maintenance-free 1 chip super bright LED.
· Dome lens: Impact and heat resistant polycarbonate resin.
· Main Body: Impact and heat resistant ABS resin.
· CE Compliant (12V DC, 24V DC type only).

Model Specifications

SIZE - 100mm diameter
OPERATING VOLTAGES - 12V DC
- 24V DC
- M2 ( 100V AC ~ 200V AC )
MOUNTING - Direct Mount
- Indoor: Upright, Inverted, Sideways
- Outdoor: Upright Only
BODY STYLE - Round base
- Flat top, colored dome
- Optional SZ-200A gasket to increase the IP Rating
BODY COLOR - Body: Beige
GLOBE COLOR - Light Source: LED
- Dome Colors: Red / Amber / Green / Blue
GLOBE MATERIAL - Polycarbonate Resin
CONFORMITY STANDARDS - CE Marking
- RoHS Compliant
PROTECTION RATINGS - IP-23 without optional SZ-200A gasket
- IP-55 with optional SZ-200A gasket
OPTIONS - SZ-200A
