PATLITE Beacons New Model Conversion Tool

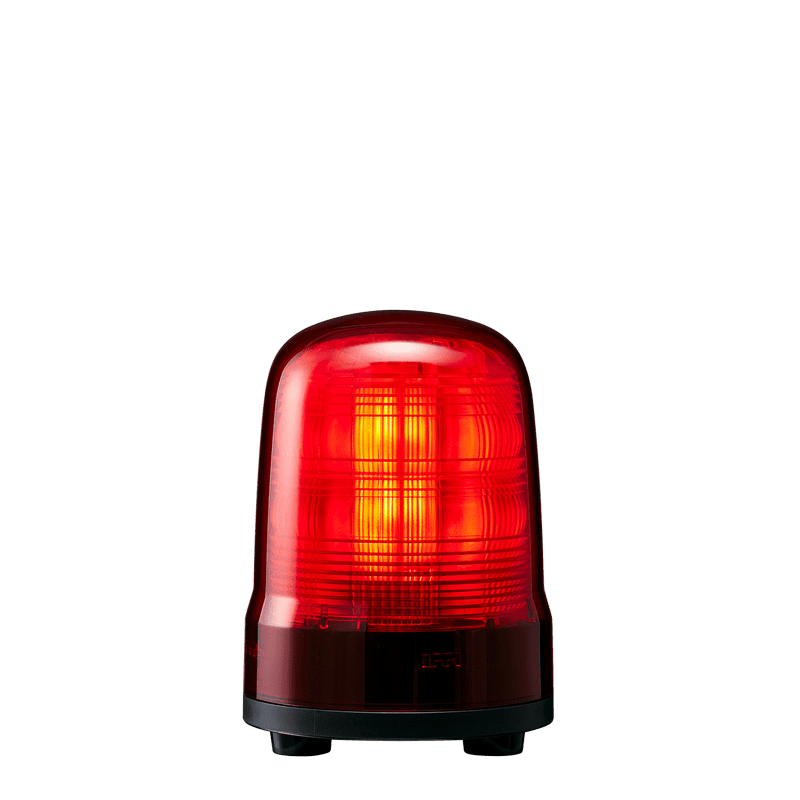

  • Multi-function Beacons SF
Series SF
function Multi-function Beacons SF
size 100 mm
Rated voltage 12-24V DC
Mounting method 3-screw
Wiring method Cable
Globe color Red
buzzer No
Mounting pitch 70
Material (Glove / Body) PC
Degree of protection IP23, IP65
Applicable standards UL/cUL, CE , KC, EAC
Remarks When used with rubber mounting (SZW-103), the IP rating will become IP65. The rubber mounting is required to maintain waterproofing when used with mounting brackets. Please note that globe is colored on the SF series.
Compatible Mounting Options
