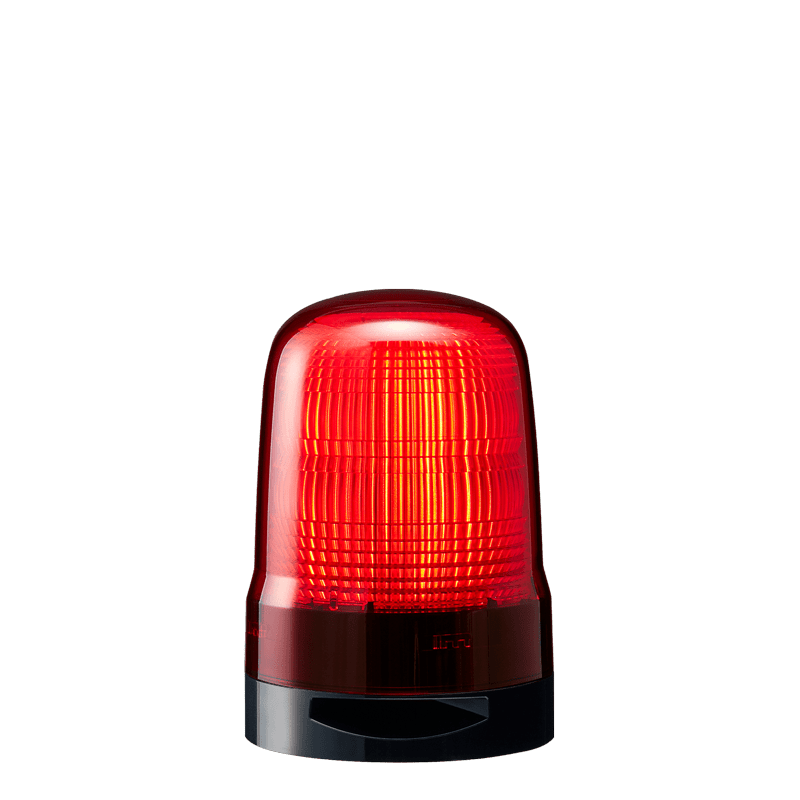

SL10-M2KTB-R
| Series | SL |
|---|---|
| function | Flashing Beacons SL |
| size | 100 mm |
| Rated voltage | 100-240V AC |
| Mounting method | 2-point Hole |
| Wiring method | Terminal Block |
| Globe color | Red |
| buzzer | Yes |
| Mounting pitch | 55 |
| Material (Glove / Body) | PC |
| Degree of protection | IP66, NEMA TYPE 4X / 13 |
| Applicable standards | UL/cUL, CE , KC, EAC |
| Remarks | If switching from PEW series (with buzzer), please note that the successor model does not support 3-point hole type mounting. The 2-point mounting pitch width is changed to 55mm. It will also be changed to terminal block wiring. |
