The PATLITE Playlist Editor2 for MP3 Models

Download the PATLITE Playlist Editor2 by clicking here.

Download Manual
PATLITE Playlist Editor2
Model Series Corresponds to legacy SD Card voice products and the EHV Series
Supported OS Windows XP; Windows Vista 32bit/64bit; Windows 7 32bit/64bit; Windows 8 32bit/64bit
Supported Languages Japanese / English (Selected during installation)
Number of Registerable Channels Maximum of 1023 Channels
Number of Setting Frames 16 frames
CSV File Output Yes
Tagged Data onto Voice File None
Functions Voice Message Data Registration Yes
Text Data Registration No
Message Repeat Capability Yes
Volume Settings Yes
High/Low Volume Setting ○ (Available for some models)
Message Interval Setup Yes
Channel Playback from Application Software ◎ (Channel/Frame)
Copy ◎ (Channel Cells. Operates the same as Excel)
Cut ◎ (Channel Cells. Operates the same as Excel)
Paste ◎ (Channel Cells. Operates the same as Excel)
Delete ◎ (Channel Cells. Operates the same as Excel)
Memory Size Indicator ◎ (To monitor the built-in memory capacity according to the product model)
Channel Assignment Function Yes
Automatic MP3 Tag Remover Yes

(※1) No guarantee for the operation of Operating Systems outside what's listed.
(※2) Language is distinguished automatically when the OS is recognized. OS other than Japanese OS will convert to an English display.
(※3) Copy, Cut-off, attach, and delete can be done.

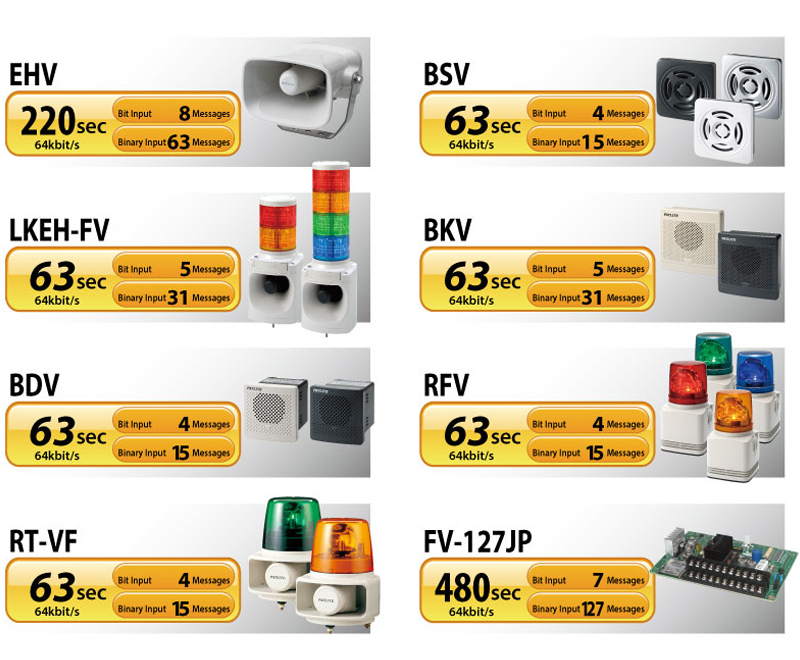

The model corresponding to a PATLITE Playlist Editor2

Object model


- 128 or more channels cannot be edited in the PATLITE Playlist Editor2.
- Please ask your Patlite Sales Representative about the PATLITE Playlist Editor2.
- Changing messages requires the PATLITE Playlist Editor2 and the SDV-128P (optional).
