80mm sq., 32 sound BD
BD
80mm sq., 32 sound BD
The panel-mount BD Series stores 32 different melody sounds (sound groups from "A" to "P") conveniently arranged for playback, suitable for noisy factories. The "P" sound group can be re-programmed using any of the 32 pre-installed sounds (optional SD card required).

Product Features

Maximum output level of 90dB at 1m is suitable for use in a noisy factory.
· 32 sounds are pre-recorded in one unit which can be used for various applications.
· Sound output level and sound group can be selected by rotary switches stored behind the front panel for easier operation even after installation.
· Select one sound group from A to P to playback 4 pre-recorded sounds.
· A new sound group can be created from the 32 sounds by using an optional
SD Card (sold separately).
· RoHS compliant.

※PATLITE Corporation has not applied for permission to use certain copyrighted music or songs recorded in BD-A, C and D types outside of Japan. For additional information regarding this issue, please contact your local PATLITE sales representative.

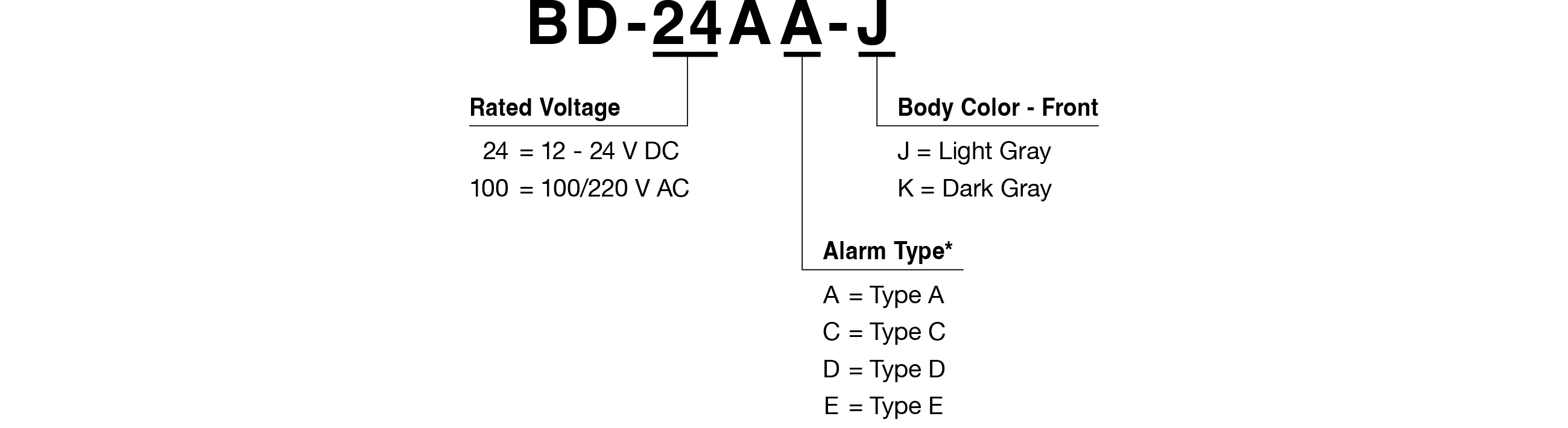

Model Specifications

DIMENSIONS - 80mm square (front)
- 67.5mm square (back)
OPERATING VOLTAGES - DC 12-24V
- AC100V/220V
AUDIBLE STYLE - Alarms / Chimes / Melodies
- Pre-installed
MOUNTING - Upright position
- Indoors only
BODY COLOR - Beige
- Dark Gray
VOLUME - Maximum 90dB at 1 meter
- Volume adjustable from zero
SOUND STORAGE - A total of 32 sounds stored (See Specifications for list)
- Arranged in 8 selectable groups of sounds
- Each group has 4 pre-arranged sounds
CHANNEL SELECTION - Select one of 8 sound groups by rotary switch
- Select any of 4 sounds in chosen groups by signal input
- Re-program last sound group from sounds stored in the unit (optional sound card required)
SOUND CHART - Open the BD-E Specifications page for the complete list of sounds installed
- Only the BD-E sounds are available for replay in the "Sound Samples" link above
CONFORMITY STANDARDS - CE Marking
- UL Component Recognition (US)
- c-UL Component Recognition (Canada)
- RoHS
PROTECTION RATINGS - IP-54 (panel-mounted, front direction only)
REMARKS - Dry contact closure such as switches or relay contacts
- Open-collector transistor (NPN)
FUNCTIONS - Sound only plays during contact closure
- Sound stops when contact is Open
OPTIONS - SD Card
