WEP
37.5mm Profile

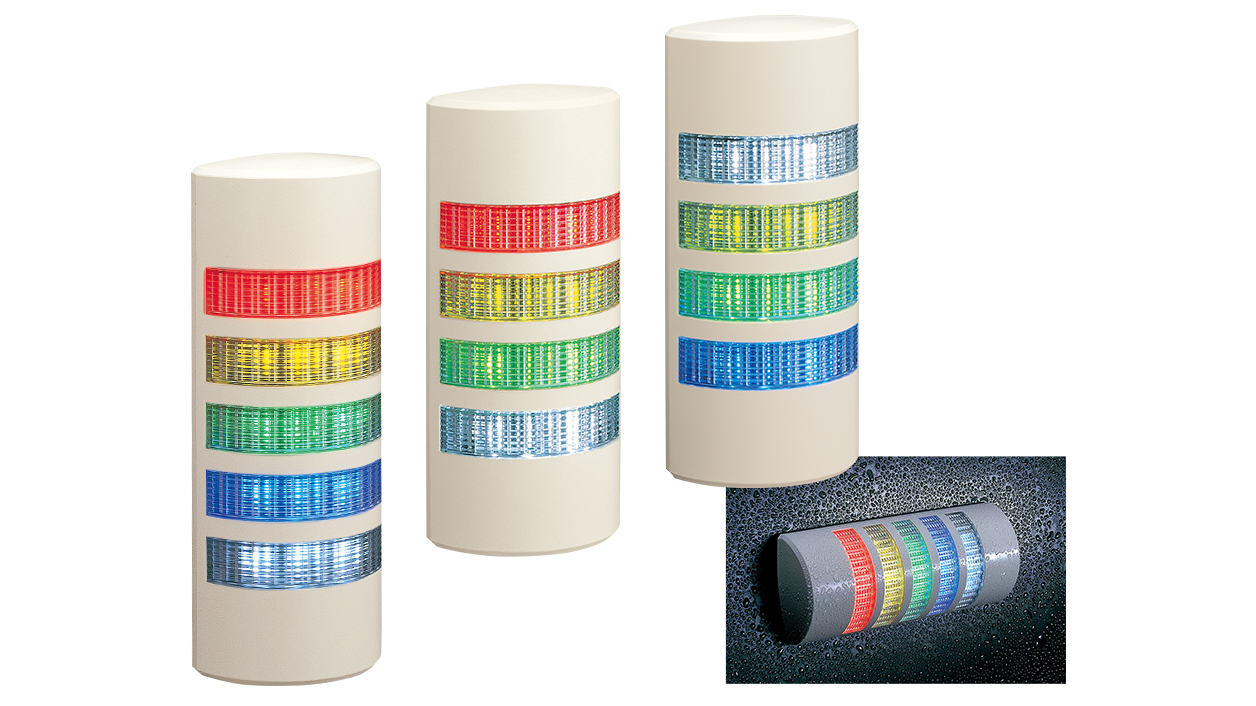

The WEP Series is an ivory colored, slim-styled body "half-moon" signal tower to integrate seamlessly with equipment.

37.5mm Profile

Download related files

37.5mm Profile
  • Products Overview
  • Frequently Asked Questions
  • Catalog Request
  • Contact Us
  • Accessories

Product Features

· Clear Vertical Cut Lens: For enhanced illumination over a wide perspective.
· FB type: Built-in audible alarm with 90dB at 1m.
· Installation: Vertical and horizontal.
· Body Color: Chrome plated or ivory white.
· Lens: Superior impact and heat resistant polycarbonate resin for superior durability and light transmission.
· NPN/PNP Compatible: Direct connection to PLC (24V DC ONLY)
· Lighting Pattern: Flashing and Continuous.
· Dust-proof and waterproof IP65 (except for FB type: IP54).
· Available Colors: Red, Amber, Green, Blue, Clear/White.

Model Specifications

DIMENSIONS - 37.5mm profile
OPERATING VOLTAGES - 24V AC/DC
FUNCTIONS - Continuous Only
- Continuous, Alarms
MOUNTING - Wall Mount
BODY STYLE - Pre-assembled, pre-wired
BODY COLOR - Body: Beige
STACKABLE TIERS - Available from 3 to 5 tier versions
MODULE COLORS - Red
- Amber
- Green
- Blue
- Clear
AUDIBLE STYLE - Alarm 1: selectable, single-tone, intermittent (fast beep) alarm, 85dB (at 1m)
- Alarm 2: selectable, single-tone, intermittent (slow beep) alarm, 85dB (at 1m)
CONFORMITY STANDARDS - UL Listed (E215660)
PROTECTION RATINGS - IP-23
