Φ100 LED Signal Light
If you use from a personal computer available and useful functions download various files.
LFH

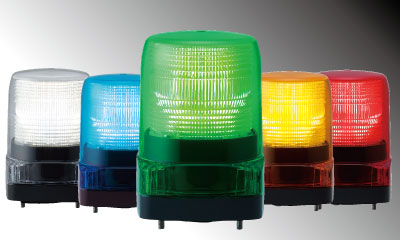

Φ100 LED Signal Light
Patlite’s new indoor/outdoor LED Signal Light has superior visibility, even in daylight, with a night-time visibility of 492 feet (150m). The long-life LED offers low maintenance for placement in hard-to-service locations.
The Model LFH LED Signal Light provides about 110 flashes per minute with a triple-flash pattern. It also is designed to resist water (IP66) and is durable for mounting on machinery with its vibration resistance of 9G.
Available with UL certification in 12VDC, 24VDC, 48VDC and 90-250VAC, the LFH has CE markings for the 12VDC, 24VDC and AC90-250VAC types.

Product Features

- Available in 12VDC, 24VDC, 48VDC and 90-250VAC
- Five Dome Colors of Red, Yellow, Green, Blue and Clear/White
- Triple Flash (110 fpm ±10%)
- Indoor/Outdoor Use
- IP66 (IEC60529)
- Vibration Resistance of 9G (90m/s2)
- RoHS Directive
- CAN/ULC-S526-M87
- CE Marking (Excluding 48VDC Model)
- UL 1638
- FCC Part 15 Subpart B Class A (Excluding 48VDC Model)

Movie

Model Specifications

SIZE - φ100 diameter
OPERATING VOLTAGES - DC 12V
- DC 24V
- DC 48V
- AC 90 - 250V
FUNCTIONS - Dimming
- Triple-flash (110 fpm ±10%)
MOUNTING - Direct or use optional brackets
BODY STYLE - For Indoor or Outdoor Use
BODY COLOR - Black Body
LIGHT SOURCE - High-power LED
CONFORMITY STANDARDS - CAN/ULC-S526-M87
- CE (Excluding 48V Model)
- UL 1638
- FCC Part 15, Subpart B Class A (Excluding 48V Model)
-RoHS Directive
PROTECTION RATINGS - IP66 (IEC60529)
REMARKS Colors Available:
- Red
- Amber
- Green
- Blue
- Clear/White
OPTIONS - SZ-007 Standard Mounting Bracket
- SZ-170 High-vibration Resistant Mounting Bracket
