LS7-9
LED Signal Tower

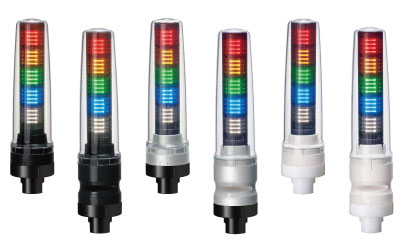

The LS7-9 Series Signal Light Tower features an elegant, smooth surface design that is IP69K rated to withstand high-pressure and high-temperature washdown operations. Additionally, with no exposed screws, shafts or other metal components, the LS7-9 is ideally suited for sanitary environment applications such as the food, beverage and pharmaceutical industries. The M12 Quick-disconnect version significantly simplifies installation and can reduce costs by eliminating the need for a separate relay box.

LS7-9 Series Signal Light Towers feature a state-of-the-art inner lens design that emits a sharper and more efficient LED light in comparison to other signal tower designs. Models are available in three or five light tier configurations. A durable shock-resistant polycarbonate lens ensures long life and reliable operation. An optional 2000 Hz to 3000 Hz alarm emits a sound that can "cut through" the sound from operating machinery that would normally drown out other buzzer sounds.

  • The LS7-9 is only available in the North, Central and South American Territories.
LED Signal Tower
LED Signal Tower
  • Products Overview
  • Frequently Asked Questions
  • Catalog Request
  • Contact Us
  • Accessories

Product Features

・IP69K ingress protection for high-pressure, high-temperature wash-down
・A smooth-surfaced body which does not expose any metal
・The lens cover is made of shock-resistant polycarbonate.
・A buzzer sound heard through various environments
・High-contrast visibility
・Remarkable display in ANY environment
・M12 connector wiring & stackable construction
・Easy installation with 1/2-inch NPT fittings
・All plastic body with Delrin bracket

Movie

Model Specifications

DIMENSIONS - 70mm Diameter
OPERATING VOLTAGES - 24V DC
MOUNTING - 1/2" NPT Socket
BODY STYLE H-type
- Pre-assembled, pre-wired
C-type
- M12 Connector
BODY COLOR - Off-white body with off-white bracket
- Dark gray body with black bracket
- Silver body with black bracket
STACKABLE TIERS - 3 Tiers
- 5 Tiers
MODULE COLORS - Red
- Amber
- Green
- Blue
- Clear/White
AUDIBLE STYLE Buzzer 1:
- Lead Wire Type (Intermittent beep1)
- M12 Conector Type (Continuous Beep) 82dB (at 1m)
Buzzer 2:
- Lead Wire Type (Intermittent beep2)
- M12 Conector Type (None) 85dB (at 1m)
CONFORMITY STANDARDS - CE
- RoHS
PROTECTION RATINGS - IP-69K (Illumination Type)
- IP-69K (Buzzer Type)
