116mm square Revolving Light
KJT

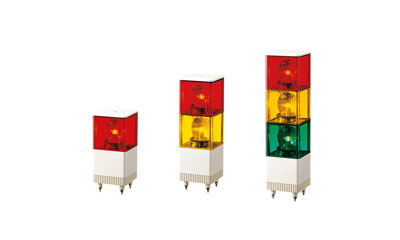

116mm square Revolving Light
The KJT Series combines highly visible multi-tiered rotating lights with sound. It offers doubly effective warning signals.
Azure function description

Product Features

※PATLITE Corporation has not applied for permission to use certain copyrighted music or songs recorded in KJT-A, C and D types outside of Japan. For additional information regarding this issue, please contact your local PATLITE sales representative.

Model Specifications

DIMENSIONS - 116mm square
RATED VOLTAGE - 24V AC/DC, 25mA
- 100V AC, 40mA
- 200V AC, 30mA
AUDIBLE STYLE - Rotating (each alarm and each light can be operated separately or together)
- Dry contact closure cush as switches or relay contacts
- Open-collector transistor (NPN)
- Direct voltage control
SOUND SELECTION - 32 pre-recorded alarm sounds
- High quality digital recording
VOLUME - Maximum 90dB at 1 meter
BODY STYLE - Pre-assembled, pre-wired only for module colors specified, lens interchangeable after purchase
BODY COLOR - Body: Light gray
STACKABLE TIERS - 1-3 lights may be stacked
GLOBE COLOR - Red
- Amber
- Green
- Blue
GLOBE MATERIAL - Acrylic Resin
PROTECTION RATING - IP-23
OPTIONS - SZ-008
