100mm - Modular

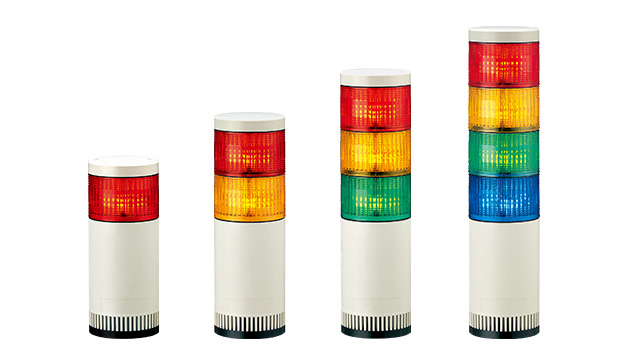

LGE
100mm - Modular
The large diameter of the LGE offers a modular design and with its increased visibility at distances, is suitable for large machines.

Product Features

路 PATLITE's large prism cut lens: For enhanced downward illumination
(cut lens: 桅100mm x 60mm high).
路 Newly developed triple-reflection system: For enhanced visibility and low power consumption.
路 Lighting Pattern: Flashing and continuous.
路 FB type: Built-in buzzer with volume up to 85dB at 1m.
路 Installation: Direct mount.
路 Interchangeable Modules: No re-wiring even after installation.
路 Lens: Superior impact and heat resistant polycarbonate resin for superior durability and light
transmission.
路 NPN/PNP compatible: 24V DC type; 100/220V AC compatible with NPN only.
路 CE Compliance: 24V AC/DC type ONLY.
路 Available Colors: Red, Amber, Green, Blue and Clear/White

Model Specifications

DIMENSIONS - 100mm diameter
RATED VOLTAGE - 24V DC
- 100V AC
- 200V AC
FUNCTIONS - Continuous Only
- Continuous, Flashing, Alarms
MOUNTING - Component style, pre-wired
- Interchangeable and stackable modules after purchase
BODY STYLE - Up to 4 modules can be stacked
BODY COLOR - Body: Light Gray
MODULE COLORS - Red
- Amber
- Green
- Blue
- Clear
AUDIBLE STYLE - Selectable two-tone alarm, 85dB (at 1m)
CONFORMITY STANDARDS - CE Marking
PROTECTION RATING - IP54
SIZE 1
