EmbeddedCPU Embedded CPU and simple programming offers a variety of control

]An internal Multi-function Switch is added.
Among other features, pressing the built-in switch can adjust the alarm sound for "Loud" (about 85dB) -> "Middle" (about 80dB) -> "Low" (about 75dB) -> Alarm Sound "Off".
A new lens design optimizes visibility.
The newly developed lens design efficiently diffuses LED light so that it is unmistakably visible, even from great distances.
]The alarm has a total of 11 sounds to match various applications.
A newly developed compact sized loudspeaker structure with added water resistant performance, to clearly transmit sounds to a maximum of 85 dB (at 1m).
An alarm can be set up with every display pattern when the unit is set to "Smart Mode."
(Only three of the 11 alarm patterns can be selected in the "Signal Tower" mode.)

AlarmSamples
Use the free editing software to freely change the luminescence colors and patterns.
Upload colors and patterns to the signal tower via a USB cable.*
* The USB cable is sold separately (USB microB type with Charging/ Data Transfer capability).

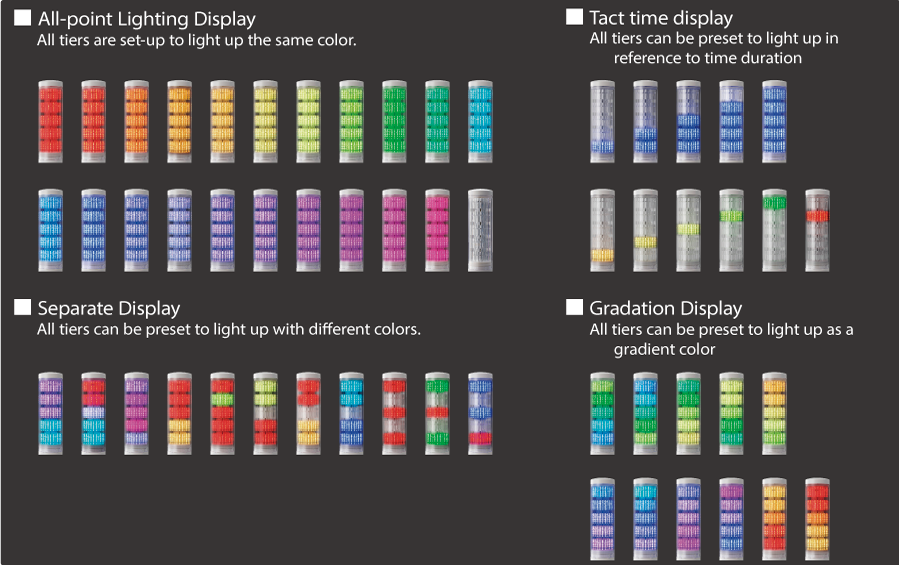

LightPatterns

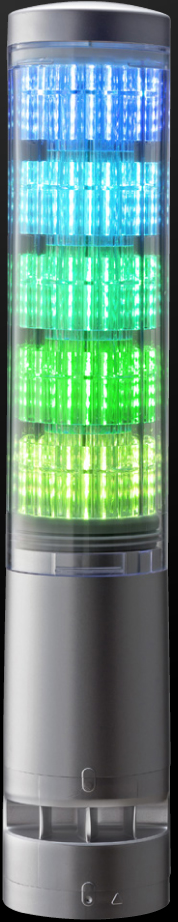

Signal Tower LA6

Voltage    DC24V
Screwless Buss Terminal (TN)
Cable (LJ)
Direct Mount w/Cable (WJ)

  Spec Icons




Voltage    DC24V
Screwless Buss Terminal (TN)
Cable (LJ)
Direct Mount w/Cable (WJ)





Alarm    11 Sounds

Specs-Dims    Wiring

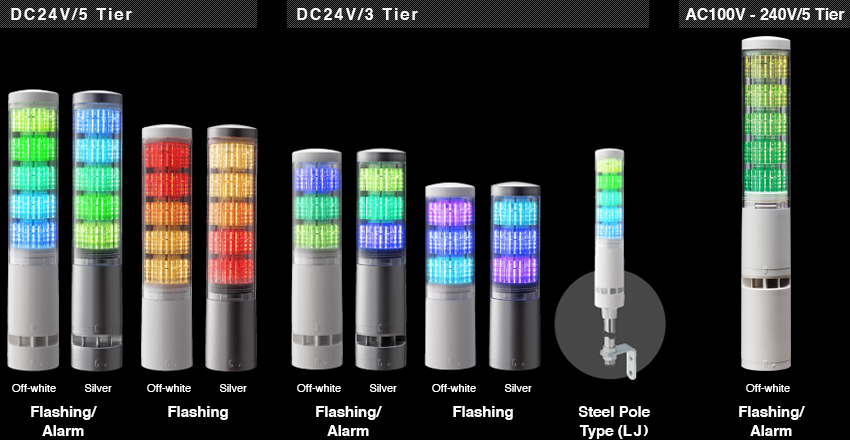

DC 24V / 5 Tier    DC24V / 3 Tier    DC100 - 240V / 5 Tier

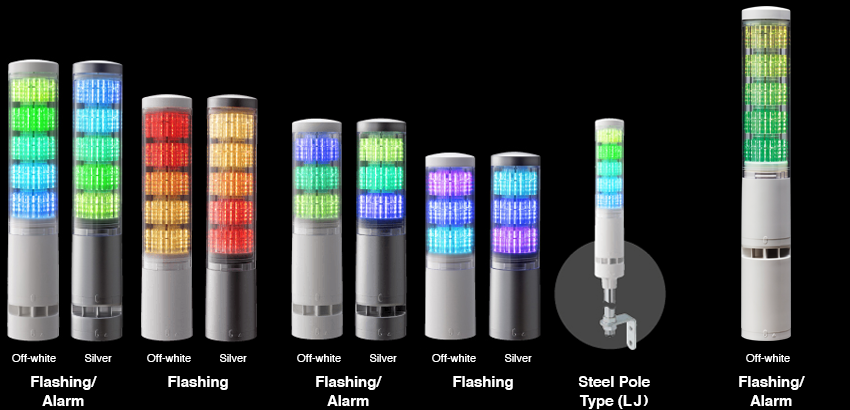

LA6 Lineup


■ Option Parts

Photo:AttachPoleSZ-70L
Attachment Pole:
SZ-70L
Photo:CirclePoleBaseSZ-010
Circular-mount Base:
SZ-010
Photo:CircleMountBaseSZ-016A
Circular-mount Base:
SZ-016A
Photo:Wall-mountBracketSZ-028
Wall-mount Bracket:
SZ-028

■ Replacement Parts

Photo:Headcover
Headcover
Photo:USBcover
USB Cover
Photo:WaterproofRingB
Waterproofing Ring B
Photo:PoleBracket(Off-white)
Pole Bracket (Off-white only)
(Pole waterproof ring & screw attachment)

※ The pole waterproof ring is also sold seperate.
