25mm
ME-A
25mm
Features a super slim-profile design with a 25mm (.98") diameter and a 200mm body length for easy installation in tight spaces.
NetShopURL Azure function description

Product Features


  • Super slim design with superior visibility

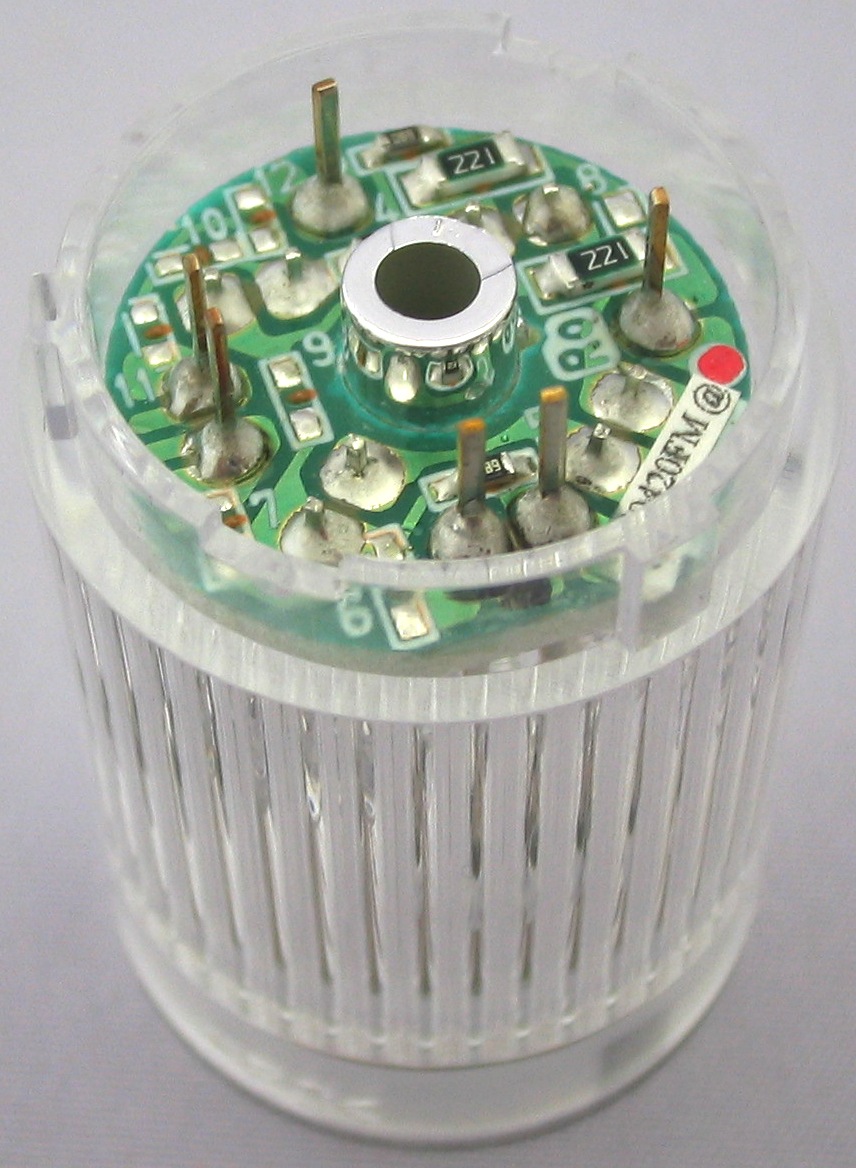

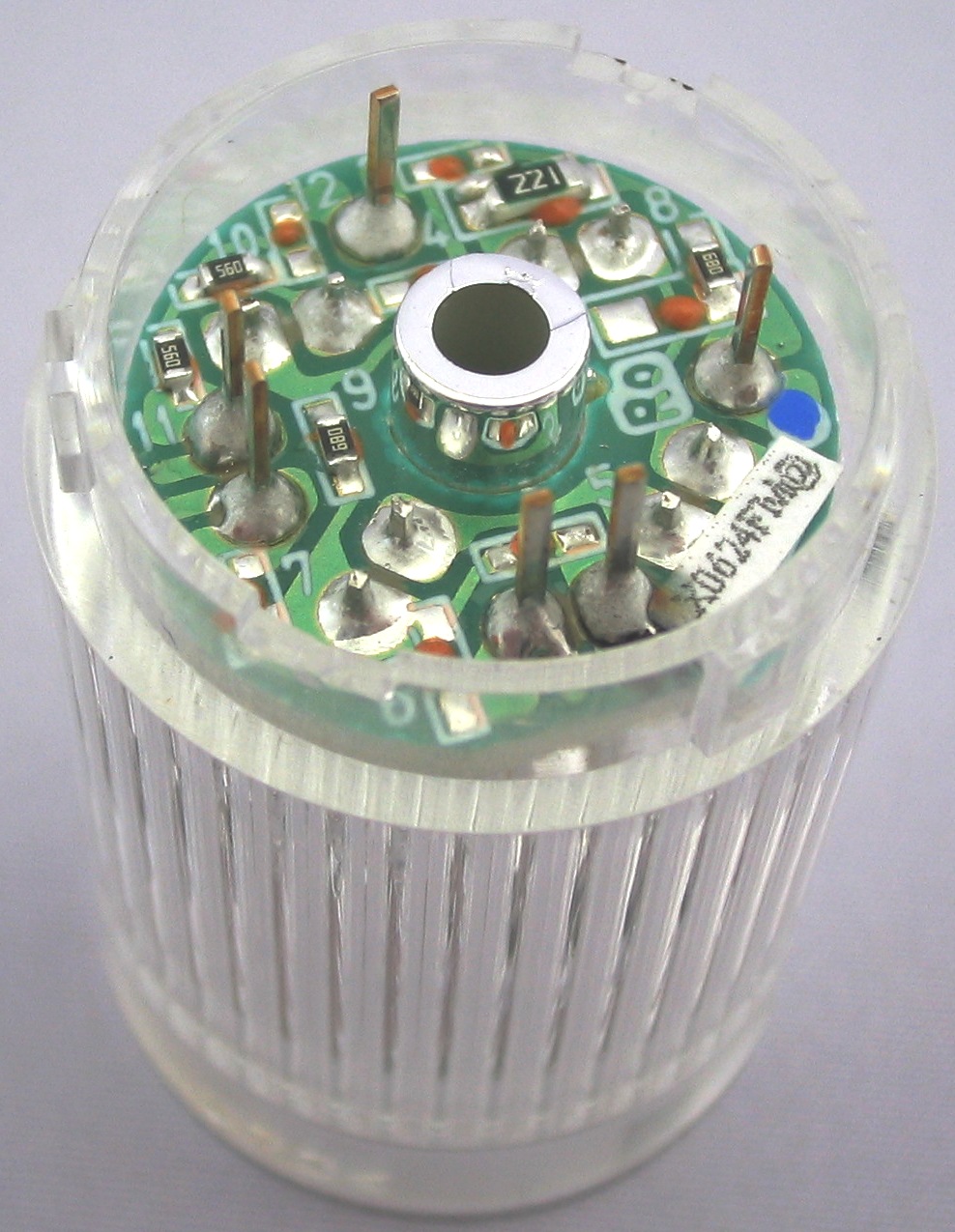

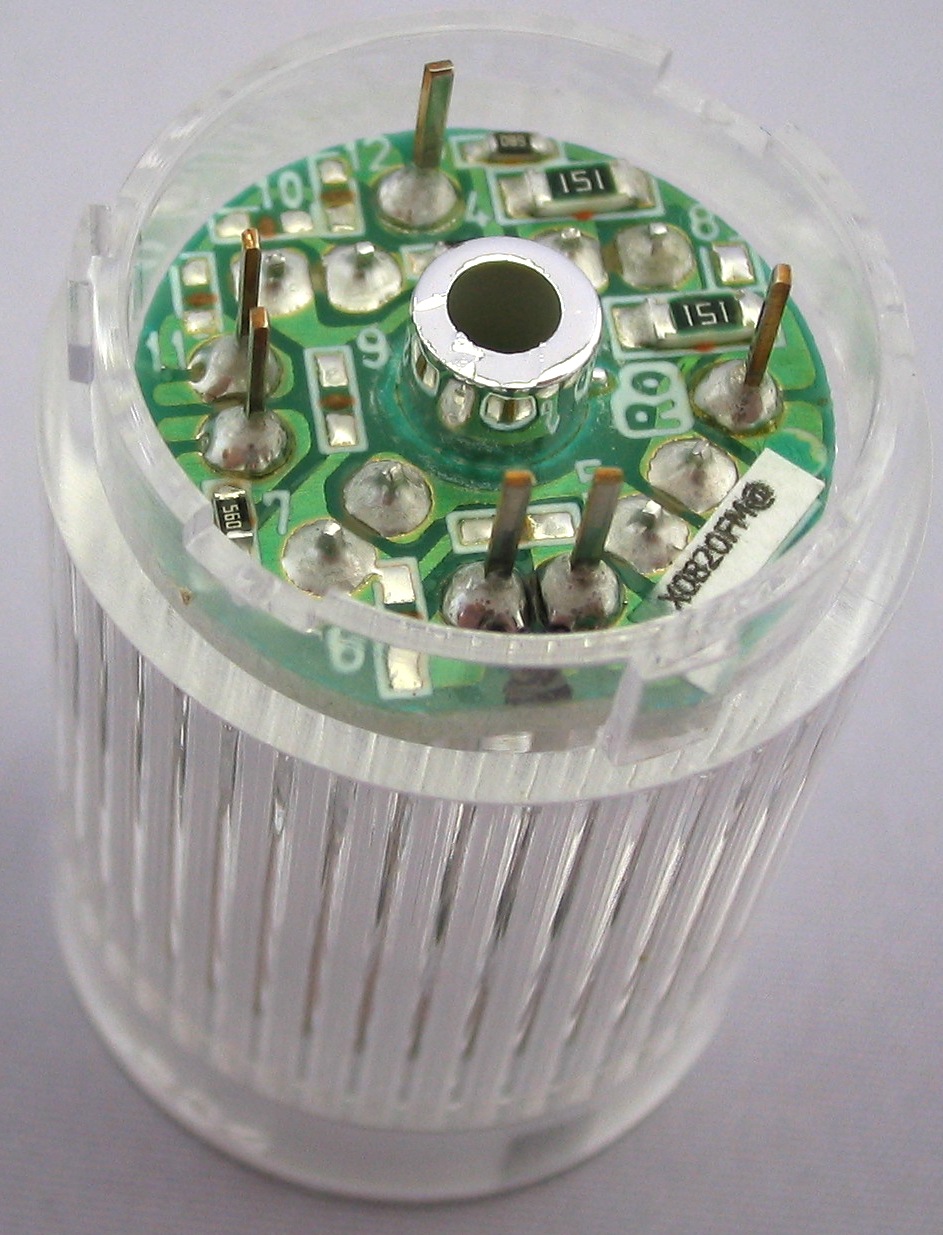

  • Rearrange LED modules without having to rewire

  • Corrosion resistant aluminum body and impact, heat resistant polycarbonate lenses

  • LED units appear clear when off to prevent false indication from ambient light

  • IP65 water and dust resistance
  • NPN/PNP open-collector









Specifications

DimensionsΦ25mm
Rated Voltage24V DC
FunctionsContinuous Only
Body ColorSilver
Body StylePre-assembled, pre-wired
Interchangeable and stackable module after purchase
Stackable TiersUp to 5 LED units
Module ColorsRed
Amber
Green
Blue
Clear
Conformity StandardsCE Marking
UL Recognized Component (US)
c-UL Recognized Component (Canada)
RoHS
Protection RatingIP42
IP65 (PNP type)

Accessories

L-bracket
SZL-001
L-bracket

Related Products

25mm LED Signal Tower
MES-A
25mm LED Signal Tower
