Φ25mm LED Signal Tower
MES-A

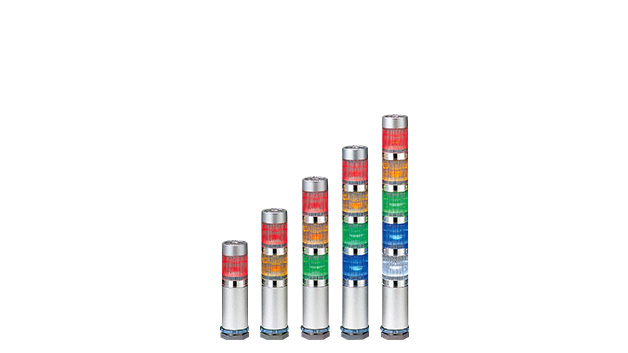

Features a ultra compact design with a 25mm (.98") diameter and a 40mm body length for easy installation in tight spaces.
- I/O Control
- Signal Tower
- Φ25
- Continuous on
- Indoor
- IP42
- Red
- Amber
- Green
- Blue
- White
Product Features
- Ultra compact design with superior visibility
- Rearrange LED modules without having to rewire
- Corrosion resistant aluminum body and impact, heat resistant polycarbonate lenses
- LED units appear clear when off to prevent false indication from ambient light
- IP65 water and dust resistance
- NPN/PNP open-collector

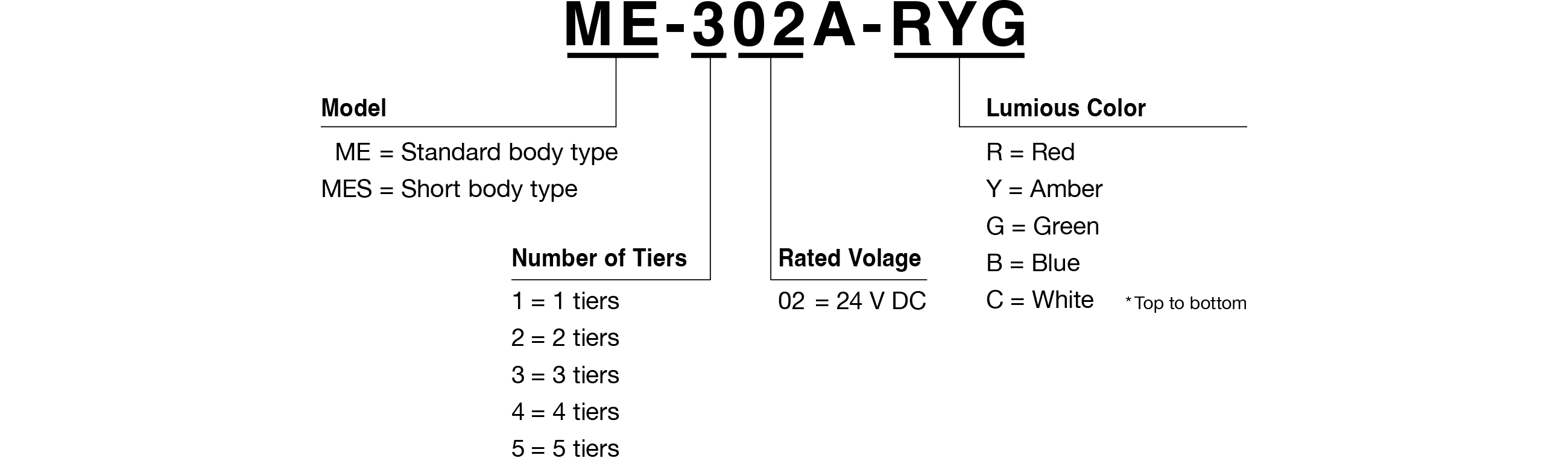

Specifications
Dimensions | Φ25mm |
Rated Voltage | 24V DC |
Body Color | Silver |
Body Style | Pre-assembled, pre-wired Interchangeable and stackable module after purchase |
Stackable Tiers | Up to 5 LED units |
Module Colors | Red Amber Green Blue Clear |
Conformity Standards | CE Marking UL Recognized Component (US) c-UL Recognized Component (Canada) RoHS |
Protection Rating | IP42 IP65 (PNP type) |
WEB Catalog
Instruction Manual/Specifications/Outside Drawing
(*) The download service of the data on this site is deemed to have agreed to the following "".
File Downloads
(*) The download service of the data on this site is deemed to have agreed to the following "".
Instruction manual
2D CAD / 3D CAD
Product Specifications
repair parts
MES-A
MES-A
Replacement Parts
Category | No. | Part Name | Part Number | Required Qty | Specification | Approximate time of replacement |
---|---|---|---|---|---|---|
|
B32310020-F1 | 1 | ||||
|
B72100223-1F1 | 1-5: Depends on the number of tiers. | ||||
|
B72100223-2F1 | 1-5: Depends on the number of tiers. | ||||
|
B72100115-3F1 | 1-5: Depends on the number of tiers.。 | ||||
|
B72100115-4F1 | 1-5: Depends on the number of tiers. | ||||
|
B72100115-7F1 | 1-5: Depends on the number of tiers | ||||
|
S33552110-0346F1 | 1 |
Includes flat washer |
|||
|
S33552110-0376F1 | 1 |
Includes flat washer |
|||
|
S33552110-03108F1 | 1 |
Includes flat washer |
|||
|
S33552110-03138F1 | 1 |
Includes flat washer |
|||
|
S33552110-03168F1 | 1 |
Includes flat washer |
