30mm LED Signal Tower
MP

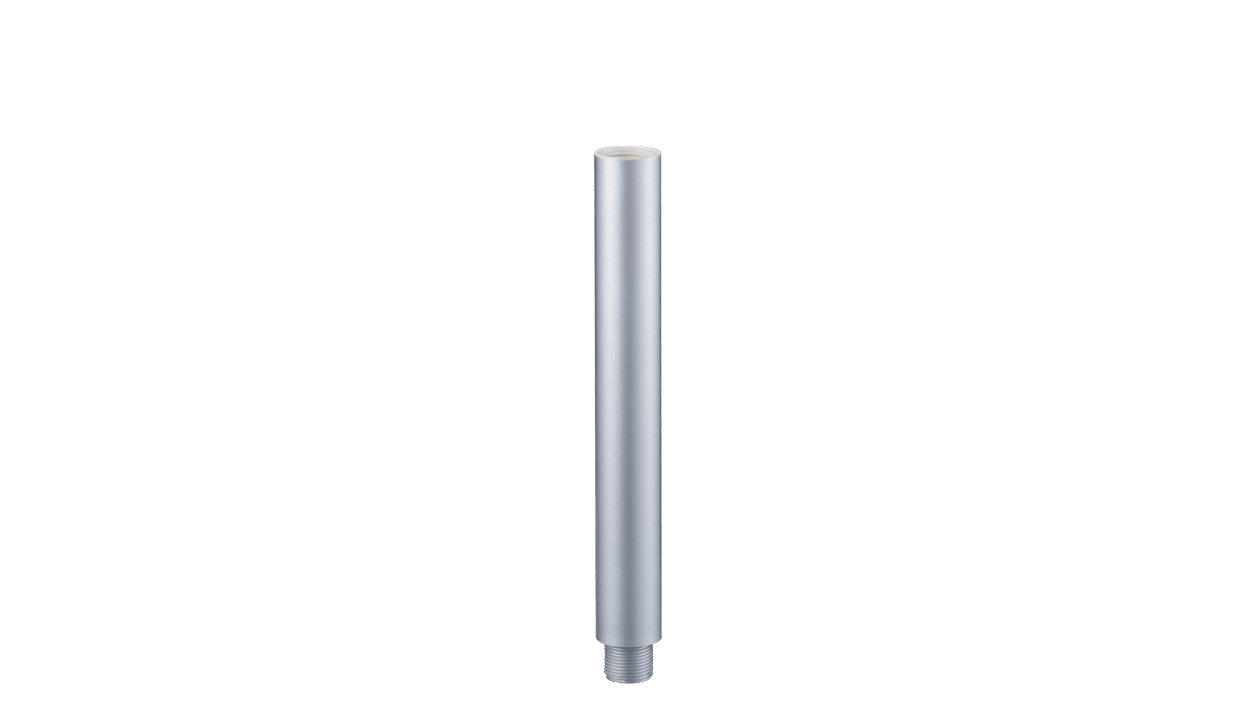

30mm LED Signal Tower
Features a slim-profile design with a 30mm (1.25") diameter and a 220mm body length for easy installation in tight spaces.
NetShopURL

Product Features


  • Rearrange LED modules without having to rewire

  • Double insulation for enhanced durability and safety

  • Heat resistant ABS resin for superior impact resistance

  • IP65 water and dust resistance

  • NPN/PNP open-collector

  • CompaM12 quick disconnect and a single drill hole configuration for easy installation (MP-C only)

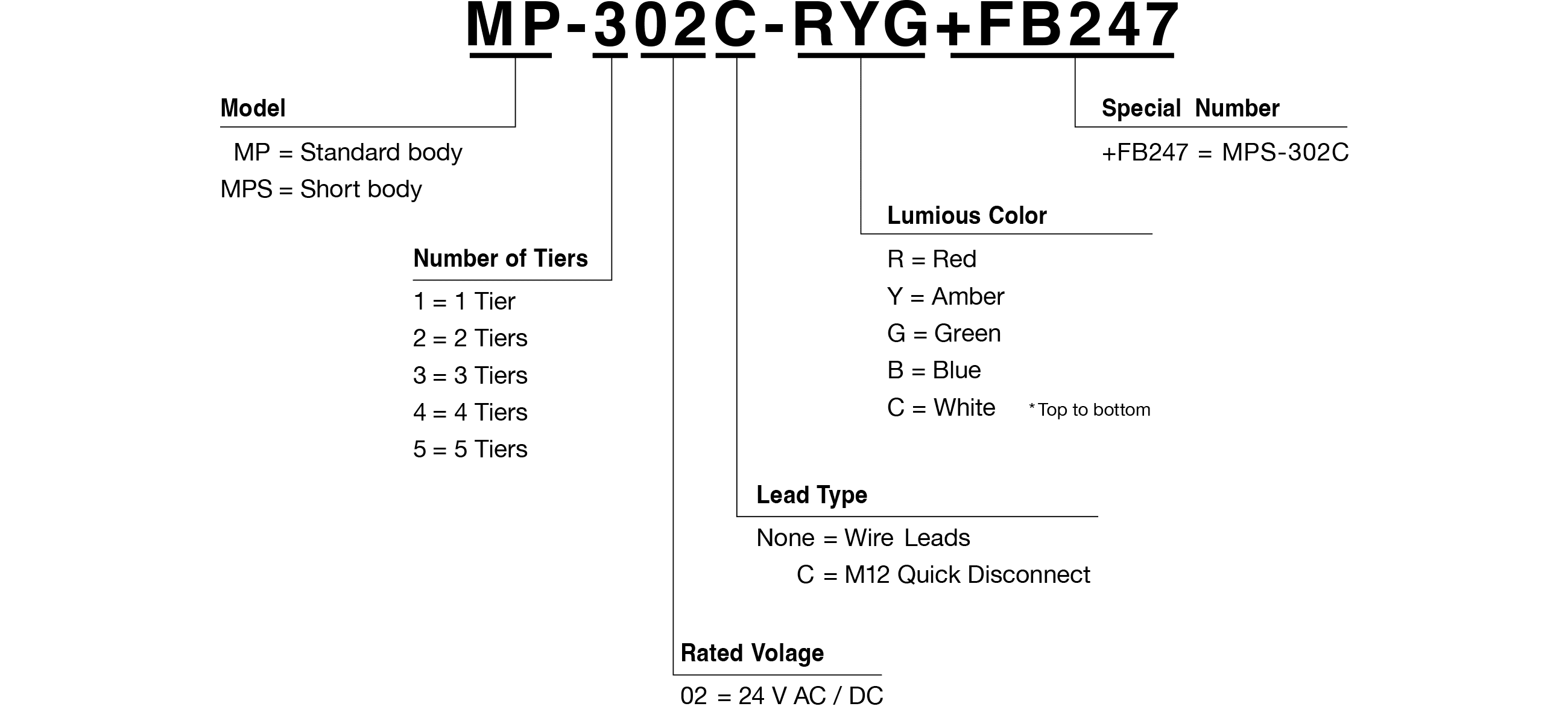

Model Specifications

DIMENSIONS - 30mm diameter
RATED VOLTAGE - 24V AC/DC
FUNCTIONS - Continuous Only
- Dry contact closure such as switches or relay contacts
- Open-collector transistor (NPN or PNP) for 24V DC
- Direct voltage control
MOUNTING - Direct mount only: includes M22 mounting nut and sealing gasket
BODY STYLE - Pre-assembled, pre-wired
- Interchangeable and stackable module after purchase
BODY COLOR - Body: Silver
STACKABLE TIERS - Up to 5 modules can be stacked
MODULE COLORS - Red
- Amber
- Green
- Blue
- Clear/White
CONFORMITY STANDARDS - CE Marking
- UL Component Recognition (US)
- c-UL Component Recognition (Canada)
- RoHS
PROTECTION RATING - IP65
