Wireless Data Acquisition System LME Transmitter
Wireless Data Acquisition System LME Transmitter

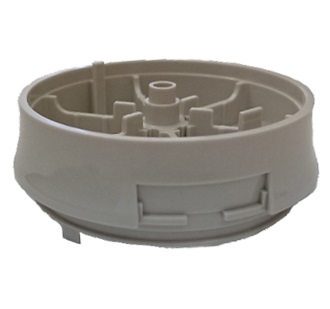

Transmitter attachment for the LME Signal Tower to enable wireless data transmission.

Product Features

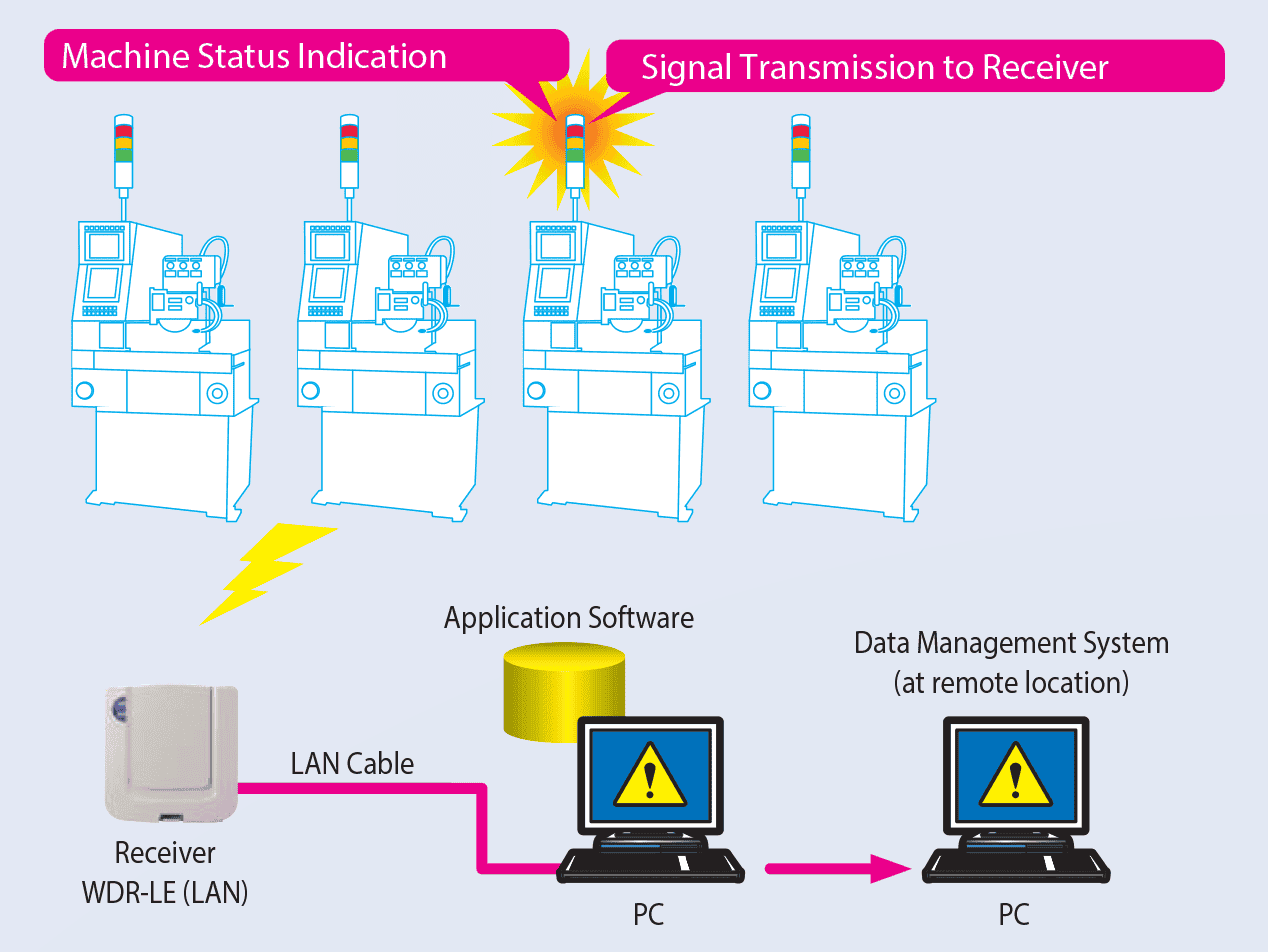

The Wireless Data Acquisition System is a cost-effective, IIoT-enabled add-on for select PATLITE Signal Towers. This system allows signal towers to wirelessly transmit equipment status changes to a host PC for real-time monitoring and data analysis. Identify production bottlenecks, enhance supervisory control, optimize productivity, and improve Overall Equipment Effectiveness (OEE) with this complete, networked solution.

Model Specifications

DIMENSIONS - φ65×36.9mm
OPERATING VOLTAGES - Rated Voltage: DC24V (Non-polar)
-Operating Voltage Range: DC21.6V to DC26.4V
PROTOCOLS - Description: Signal Tower LME Transmitter
- Maximum Relay Connections: 5 Relays
- Protection Ratings: Conforms to LME Standards
FUNCTIONS - Operating Temperature Range:-10℃ to 60℃ (No Condensation )
- Operating Humidity Range: 85% RH or less(No Condensation)
- Storage Temperature Range:-20℃ to 70℃(No Freezing)
- Installation: Upright Position(Indoor Only)
BODY STYLE - Description: Signal Tower LME Transmitter
BODY COLOR - Body: Beige
