MP3 Voice Annunciator Horn
EHV

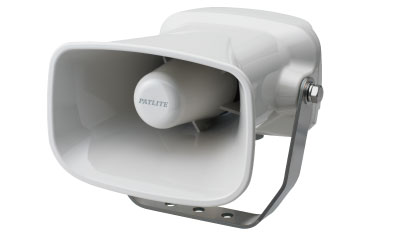

The EHV MP3 Voice Annunciator Horn delivers an industry-leading sound output of 110 dB at 1 m, making it ideal for noisy industrial settings. Users can select between two sound profiles—Signal Mode for high-impact alerts or Information Mode for softer messaging. Designed with high vibration resistance, it features three volume levels, terminal block and cable types, and four playback modes for versatile applications. The M1 version supports both NPN and PNP transistor outputs, and an SD card allows easy message and melody updates (up to 220 seconds).

  • I/O Control
  • MP3 Annunciator
  • Tones
  • Melody
  • Voice
  • 110dB
  • Indoor
  • Outdoor
  • IP65
  • MP3 Voice Annunciator Horn EHV

Product Features

  • 30% More Compact compared to the previous EWH model, allowing for space-efficient installation.
  • Enhanced Vibration Resistance rated up to 4.5G.
  • Delivers sound output up to 110 dB at a distance of 1 meter, despite its reduced size.
  • Supports both Cable Connection and Terminal Block Connection options.
  • Equipped with 4 Playback Modes, selectable via input signal configuration:
  • Compatible with both PNP and NPN transistor-driven inputs.
  • RoHS compliant in accordance with European environmental directives.
  • IP65-rated enclosure for dust and water protection (refer to manual for application details).
  • Messages are stored and managed via SD card, allowing on-site updates.
  • UL Listed for safety (certified by Underwriters Laboratories).
  • CE marking applies to DC-powered models.



Playback Modes

  • Normal
  • Input Priority
  • Hold
  • Memory

Command Modes

  • Sound Reduction
  • Factory
  • Public Address
  • Bit/Binary
  • MP3 ON/OFF
  • Forced Playback
  • Group Selection

Terminal Input Assignment

  • Playback
  • Stop
  • Clear
  • Sound Reduction



Video

Specifications

Rated Voltage - 12–24 V DC
- 12–48 V DC
- 100–240 V AC
Audible Output - 63 selectable tones
Mounting Method - Bracket mount (included)
Body Color - Light gray
Sound Pressure Level - Up to 110 dB at 1 m
Sound Storage - Up to 63 sounds (refer to specifications)
- 4 selectable playback modes
Channel Selection - Bit Mode: 8-channel input
- Binary Mode: 63-channel input
Certifications - UL 464
- CSA C22.2 No. 205-M1983
- FCC Part 15 Subpart B Class A
- CE (DC models)
- RoHS compliant
Ingress Protection - IP65
Key Functions - Sound attenuation
- MP3 file playback (SD card based)
- Terminal block or cable interface
- PNP/NPN input support
- Uses MPEG Layer-3 audio codec licensed from Fraunhofer IIS and Thomson
Remarks - Vibration tolerance: 4.5G

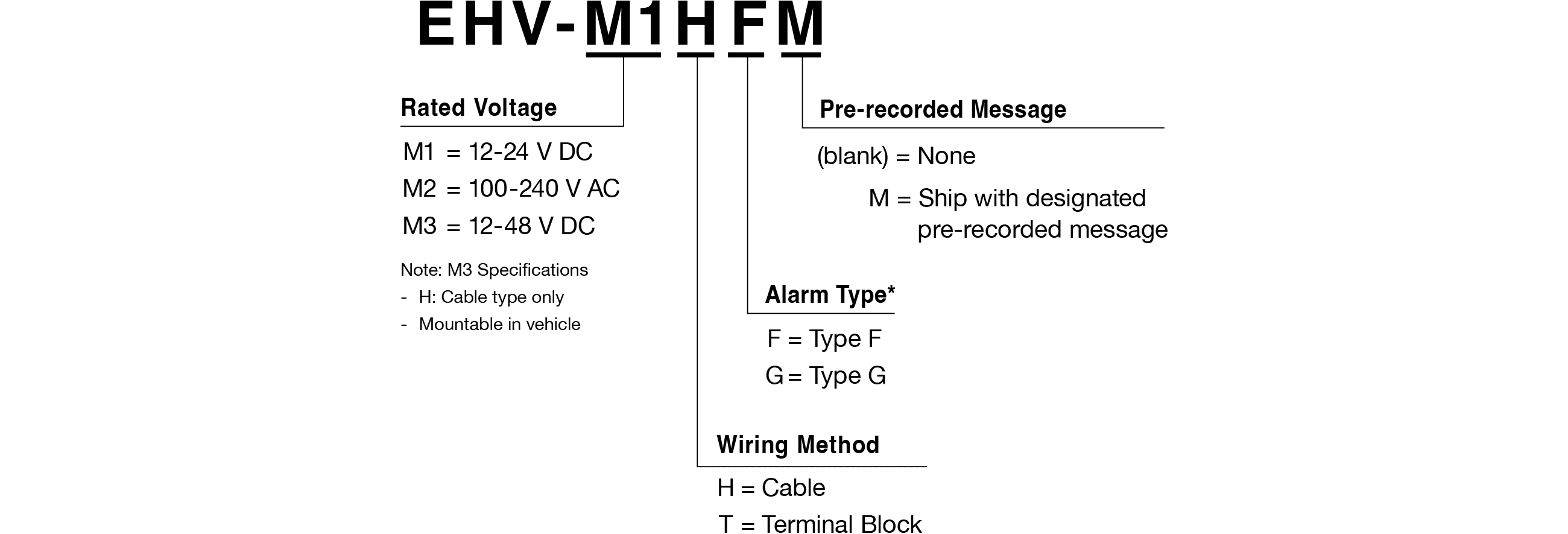

Model Code

Model Code

Please refer to the Alarm Sound Selection Chart in the General Catalog for details.

Product List

Model Number Rated Voltage Wiring Method Alarm Type Pre-recorded Message
EHV-M1H □ 12 - 24V DC Cable F / G -
EHV-M1T □ 12 - 24V DC Terminal Block F / G -
EHV-M2H □ 100~240V AC Cable F / G -
EHV-M2T □ 100~240V AC Terminal Block F / G -
EHV-M1H □ M 12 - 24V DC Cable F / G
EHV-M1T □ M 12 - 24V DC Terminal Block F / G
EHV-M2H □ M 100~240V AC Cable F / G
EHV-M2T □ M 100~240V AC Terminal Block F / G
EHV-M3H □ 12~48V DC Cable F / G -
EHV-M3H □ M 12~48V DC Cable F / G

(*) The download service of the data on this site is deemed to have agreed to the following "".

(*) The download service of the data on this site is deemed to have agreed to the following "".

EHV  

EHV  

Replacement Parts

Category No. Part Name Part Number Required Qty Specification Approximate time of replacement

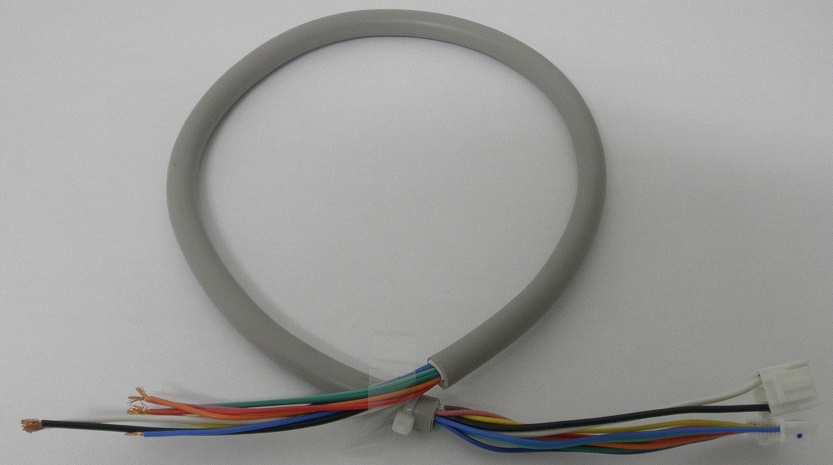

Cable
V13100076-F1 1

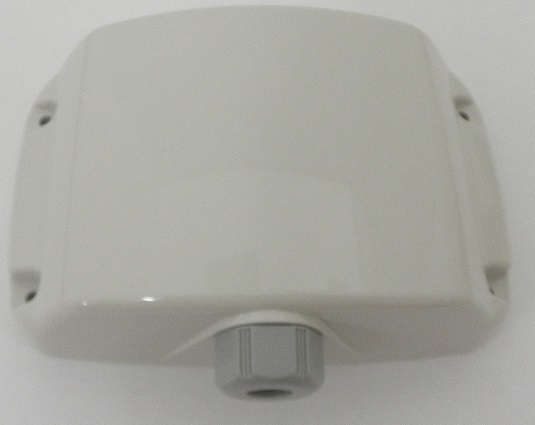

Cover
V21100522-F1 1

With pan head machine screw 4×14 with flat spring washer.
