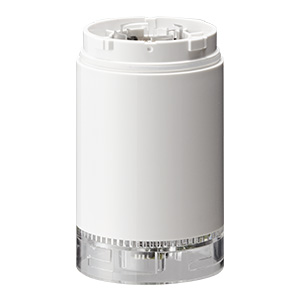

Wireless Data Acquisition System LR5 Transmitter

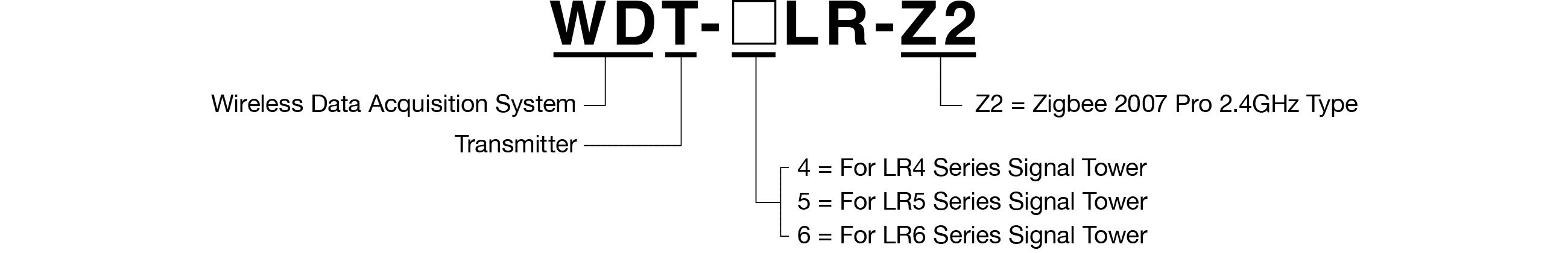

WDT-5LR-Z2
Wireless Data Acquisition System LR5 Transmitter
Transmitter attachment for the LR5 Signal Tower to enable wireless data transmission.
Azure function description

Product Features

The Wireless Data Acquisition System is a cost-effective, IIoT-enabled add-on for select PATLITE Signal Towers. This system allows signal towers to wirelessly transmit equipment status changes to a host PC for real-time monitoring and data analysis. Identify production bottlenecks, enhance supervisory control, optimize productivity, and improve Overall Equipment Effectiveness (OEE) with this complete, networked solution.




WDS

Model Specifications

RATED VOLTAGE - DC19.0V to DC26.4V
PROTOCOLS - Telecommunication Protocols: IEEE-802.15.4
γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€(Wireless Communications)
FUNCTIONS - Connected Model: LR5 type Tiered Signal Tower Body unit top attachment
- Communication Frequency: 2405 MHz - 2480 MHz (16 channels)
- Communication distance: About 30m from source
γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€ (Reference Value)
- Number of Available Contacts: Six points
γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€(red, amber, green, blue, white, buzzer)
CONFORMITY STANDARDS - Radio Law Authorized Country: Japan (ARIB STD-T66)
γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€United States (FCC)
γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€γ€€Europe (CE)

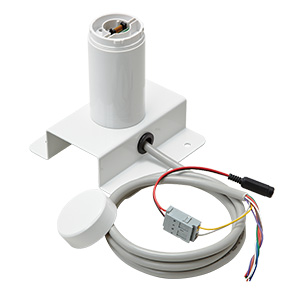

Accessories
