60mm LED Signal Tower with M12 Connector
LR6-WC

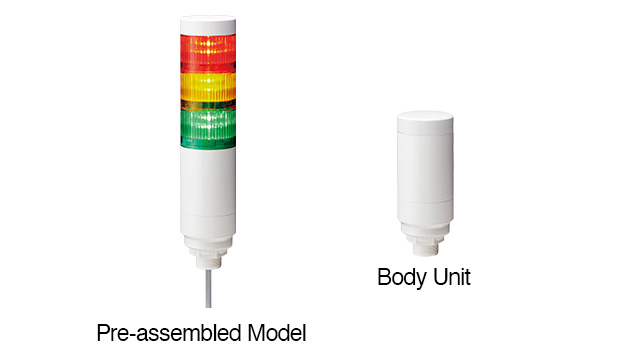

60mm LED Signal Tower with M12 Connector

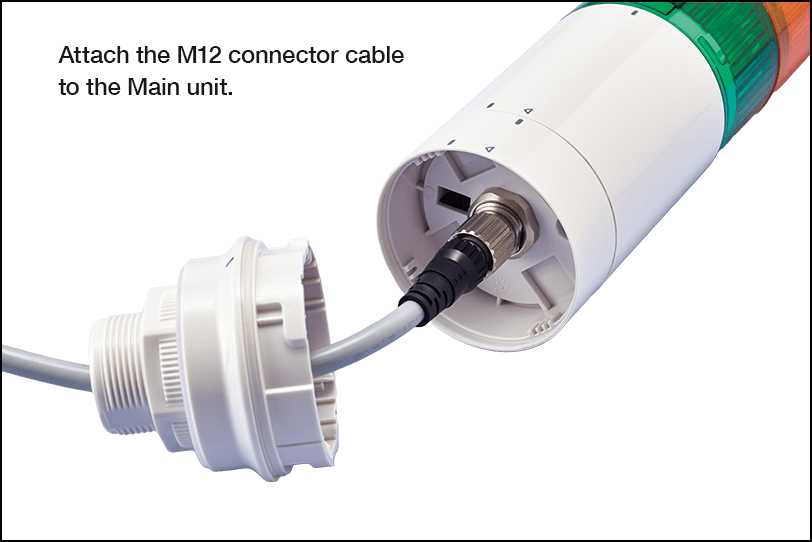

Featuring a built-in M12 connector for simplified installations and disconnects and dual mounting options.

Product Features

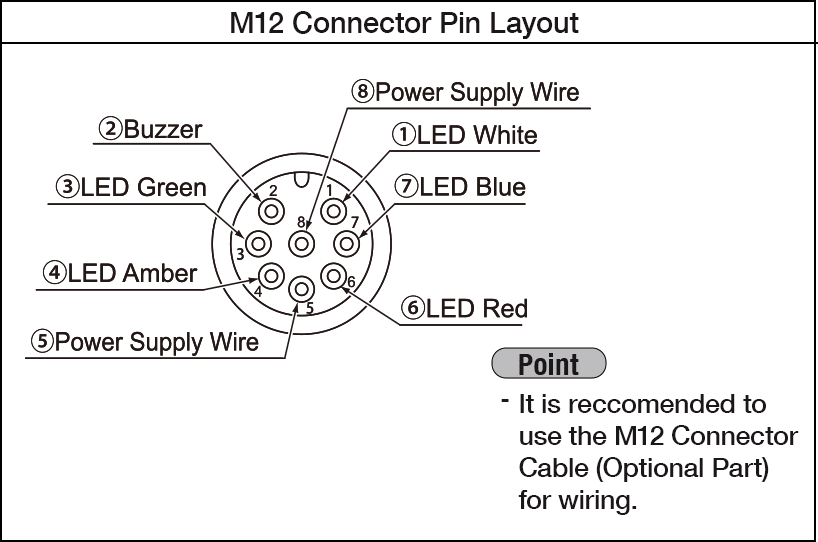

  • 8-pin M12 Connector

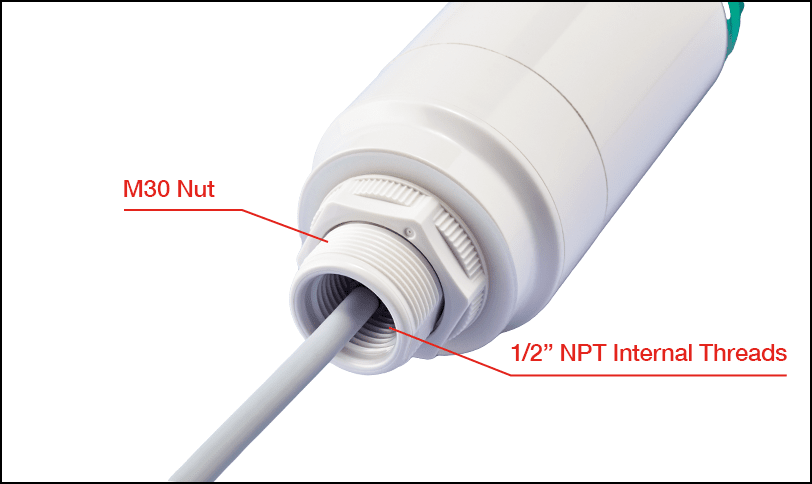

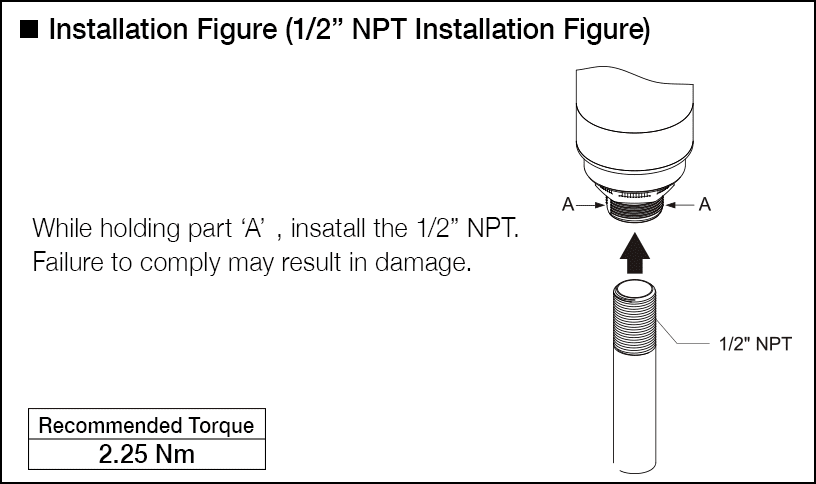

  • Direct mount through 30mm mounting hole or pole mount with ½” NPT pipe

  • Rated voltage: DC24V

  • Off-white body




LR-WC Application

Model Specifications

DIMENSIONS - 60mm diameter
OPERATING VOLTAGES - 24V DC
BODY COLOR - Off-white
MODULE COLORS - Red
- Amber
- Green
CONFORMITY STANDARDS - CE
- UL Component Recognition (US)
- c-UL Component Recognition (Canada)
- RoHS
- FCC
- KC
PROTECTION RATINGS - IP65(IEC 60529) / NEMA TYPE 4X,13
