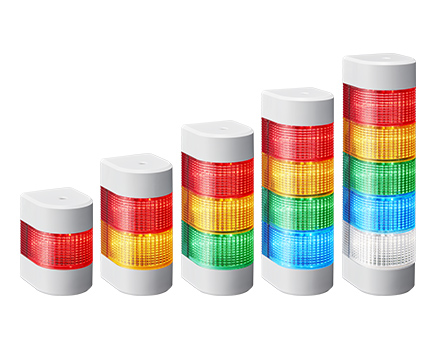

Wall Mount Signal Tower (80.2mm Profile)
WME-D
Wall Mount Signal Tower (80.2mm Profile)
Flush-mounted LED Signal Tower easily installs and is designed to withstand accidental impacts. Upgraded with ultra-bright LEDs, louder alarm and a more durable outer shell.
NetShopURL Azure function description Azure function description

Product Features


  • FB type: Built-in audible alarm up to 93dB (at 1m).

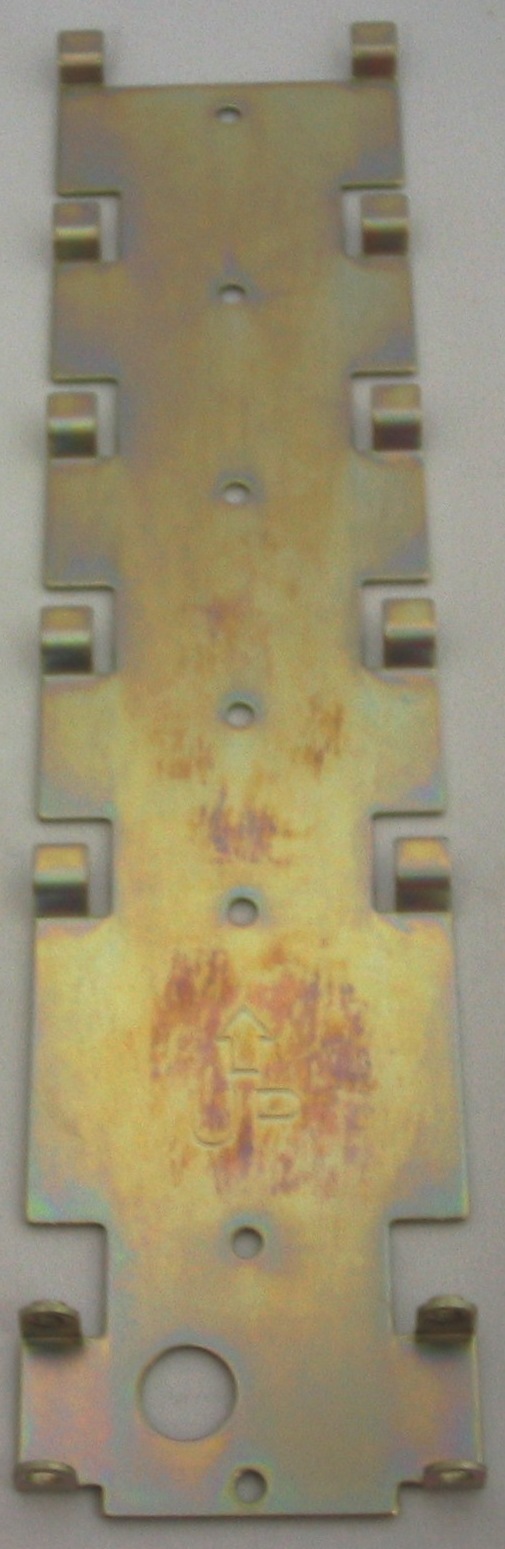

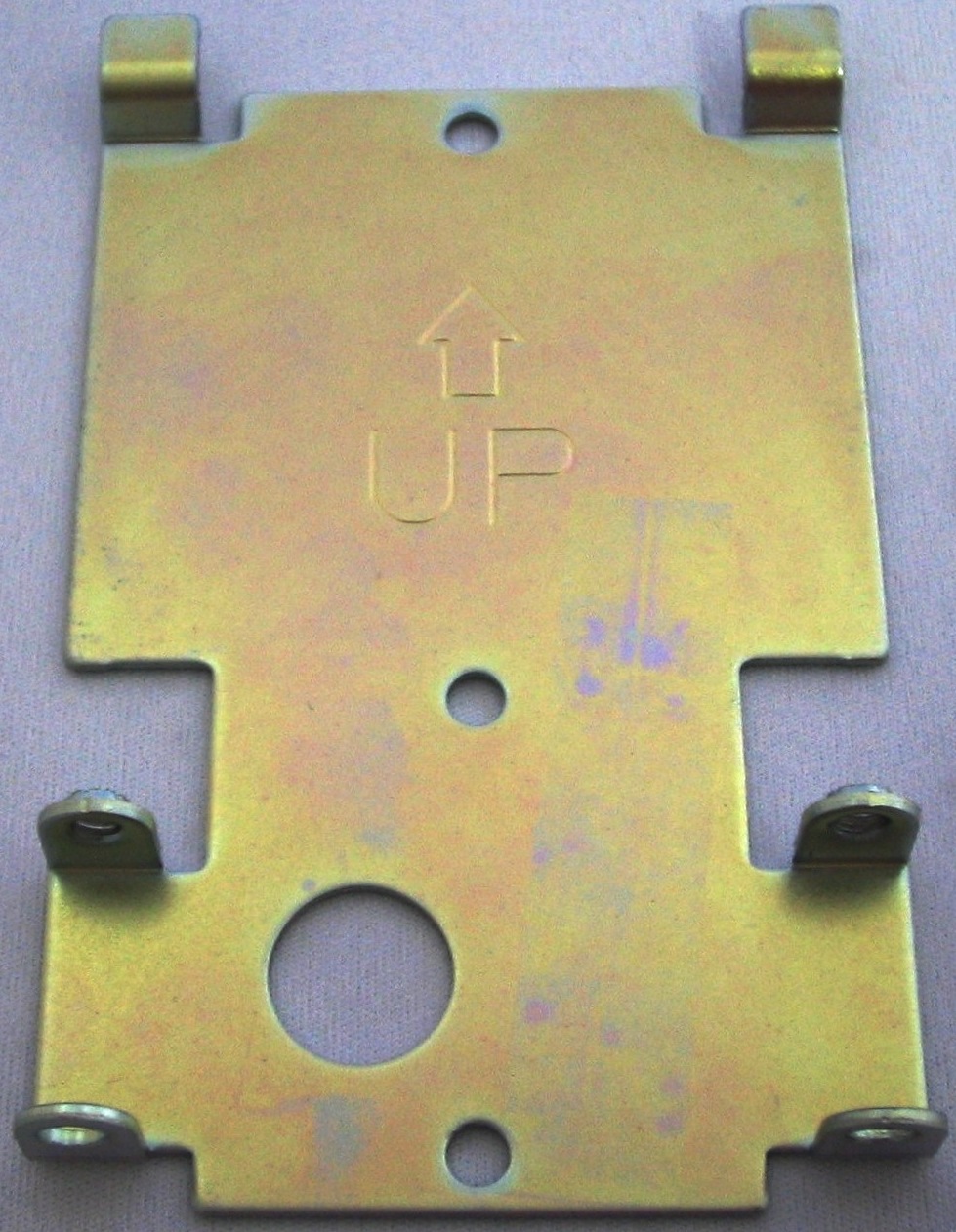

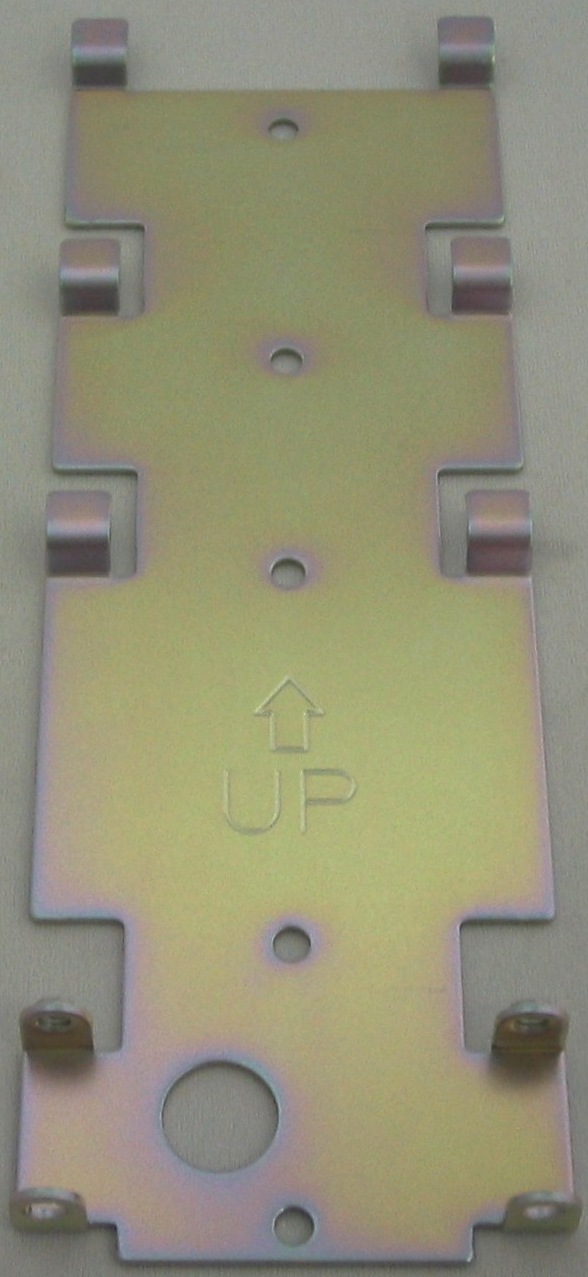

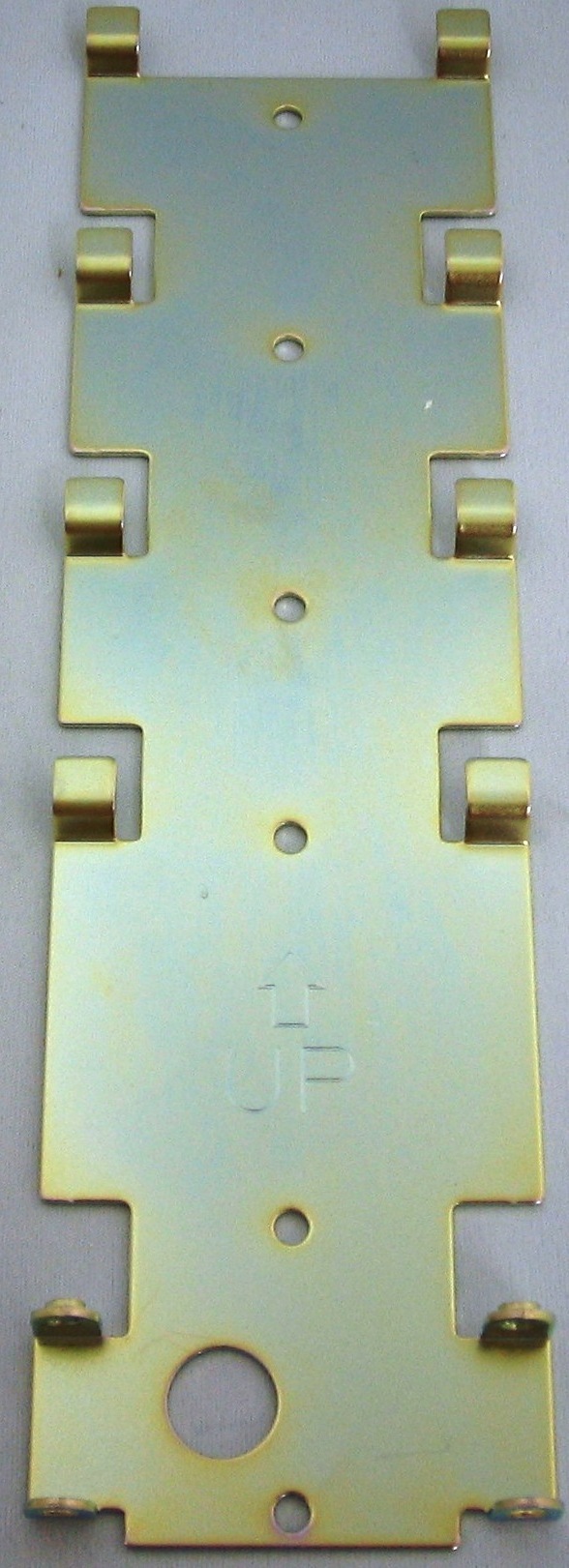

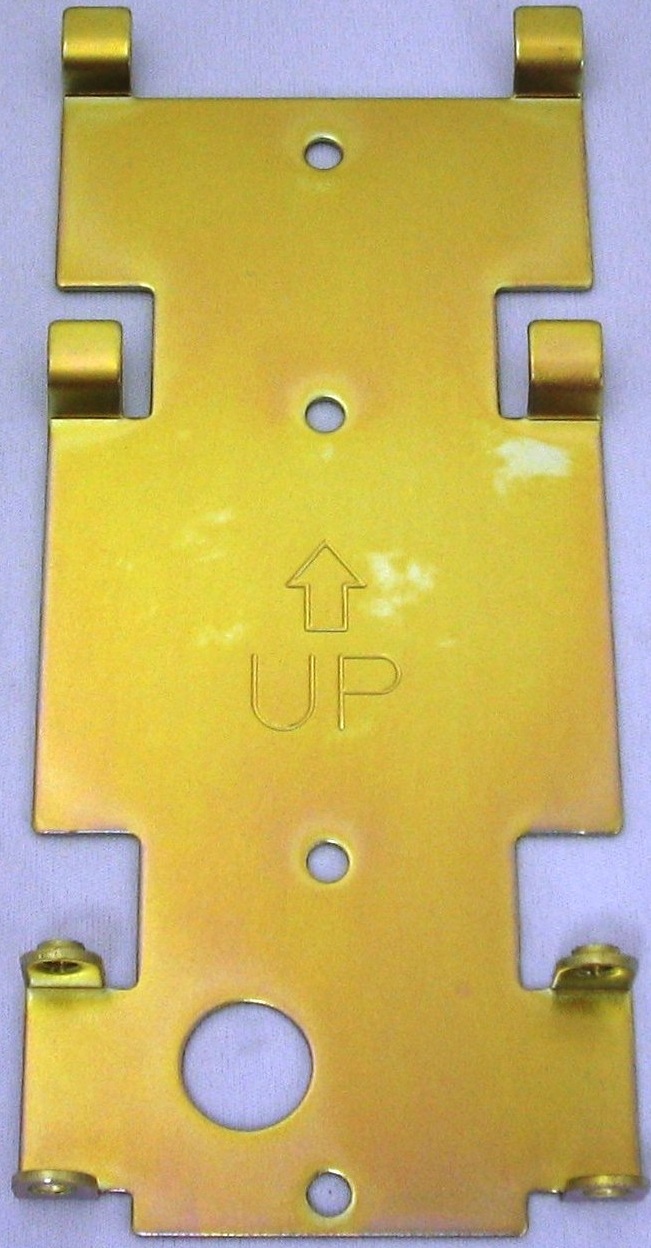

  • Installation: Easy vertical and horizontal installation with mounting bracket.

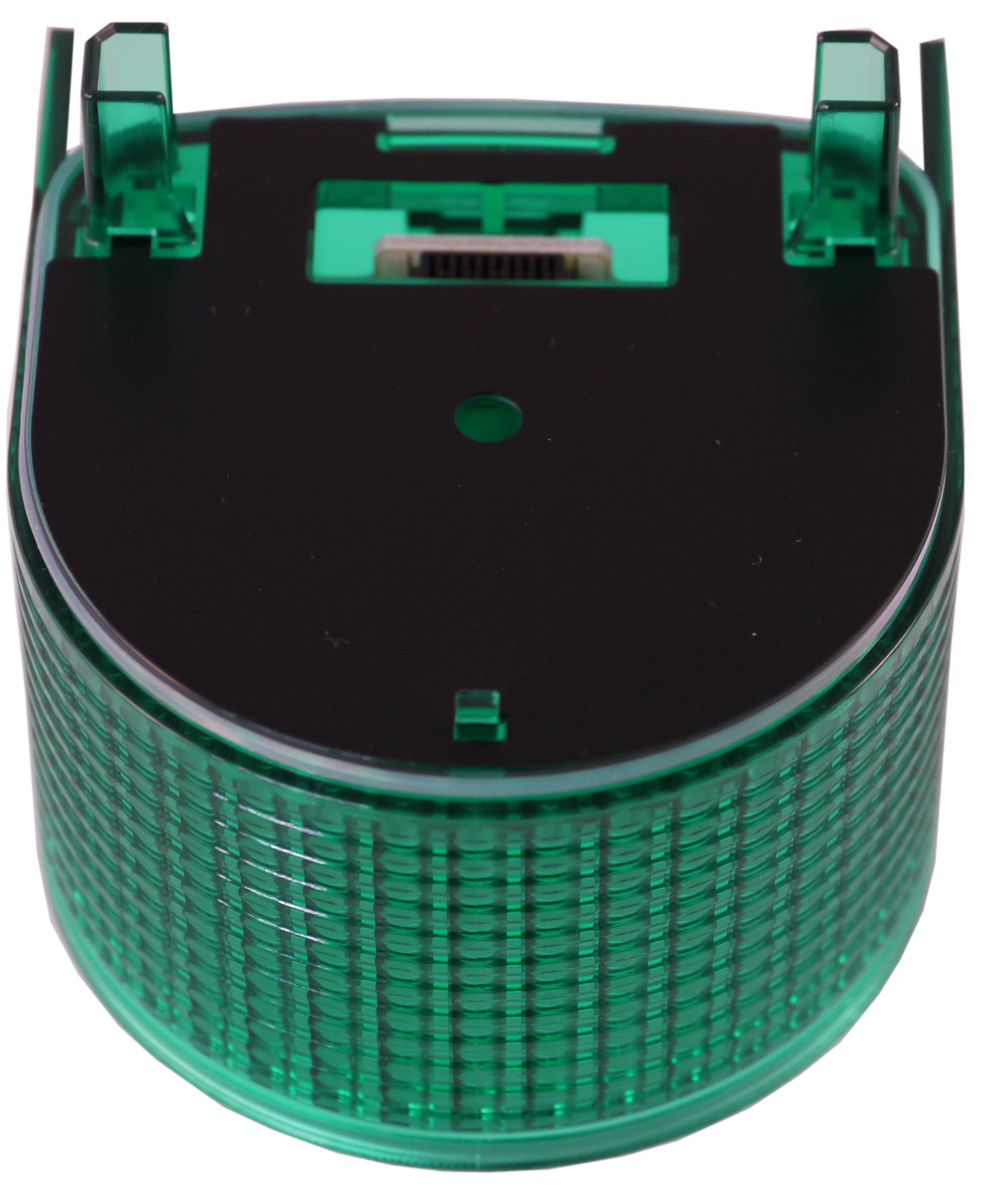

  • Interchangeable Modules: No re-wiring even after installation.

  • Main body: Made of PC resin.

  • Lens: Superior impact and heat resistant polycarbonate resin for superior durability and light transmission.

  • NPN/PNP Compatible: 24V DC type ONLY.

  • LED Module Colors: Red, Amber, Green, Blue, White.



WME





Specifications

Dimensions80.2mm profile
Rated Voltage24V DC
100V-240V AC
FunctionsContinuous Only
Continuous, Flashing, Alarms
Mountingpre-assembled, pre-wired
Lenses are interchangeable
Body ColorOff-White
Body StyleWall mount only: includes mounting bracket
Stackable TiersAvailable in 1, 2, 3, 4 or 5 tier versions
(Tiers cannot be added or subtracted after purchase.)
Module ColorsRed
Amber
Green
Blue
White
Audible StyleTwo selectable Alarms: Buzzer1 (Fast intermittent)
           : Buzzer2 (Slow intermittent)
Sound Pressure Level: 93dB (at 1m)
Conformity StandardsCE Marking
UL Component Recognition (US)
c-UL Component Recognition (Canada)
RoHS
KC
Protection RatingIP54(Normal)
