IO-Link Signal Beacon
NE-IL

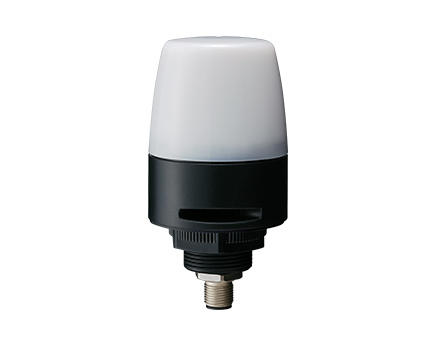

IO-Link Signal Beacon
The IO-Link Indicator Series seamlessly installs into IO-Link masters and features multi-color LEDs with a touch sensor and rugged housing.
NetShopURL Azure function description

Product Features


  • Capacitive touch sensor enables real-time status confirmations

  • Equipped with a Digital/Analog input function for connecting devices not compatible with IO-Link. The NE-IL acts as an I/O hub, able to send data from sensors to the IO-Link master

  • Features an M12 connection for quick and easy installations

  • Status indicator devices connected to an IO-Link master can be controlled collectively

  • Real-time notification of equipment abnormalities enables operators to perform maintenance right away, reducing bottlenecks and downtime

  • Up to 7 colors can be emitted to indicate different equipment conditions

  • High protection rating for operation in harsh environments

  • Frosted lens displays evenly distributed light for unambiguous indication

  • Click here for an IO-Link connection guide with OMRON Corporation "NX Series IO-Link Master Unit"
    (Please contact OMRON Corporation for inquiries regarding this document)






Model Specifications

 ModelNE-ILNN-M



NE-ILNB-M

With buzzer

NE-ILTN-M

With touch
sensor
NE-ILTB-M

With buzzer
and touch sensor
NE-ILXB-M

With buzzer, touch sensor,
and digital / analog input
Sizeφ56mm
Rated Voltage24V DC
Mounting Location/ Mounting DirectionIndoors, Upright
Protection RatingIP65 NEMA TYPE 4X, 13
LED ColorMulti-color (Red, Amber, Green, Blue, White, Purple, Cyan)
LED Unit ModesContinuous / Flashing
Sound PressureTyp. 88 dB
[8 sound types (Selectable)]
Typ. 88 dB
[8 sound types (Selectable)]
Conformity Standards●EMC Directive (EN 61000-6-4, EN 61000-6-2) ●RoHS Directive (EN 50581)
●UL 508, CSA-C22.2 No. 14 ● FCC Part 15 Subpart B Class A
● KC (KN 61000-6-4, KN 61000-6-2)
ConnectionM12 connector 5 pins A codeM12 connector 8 pins A code

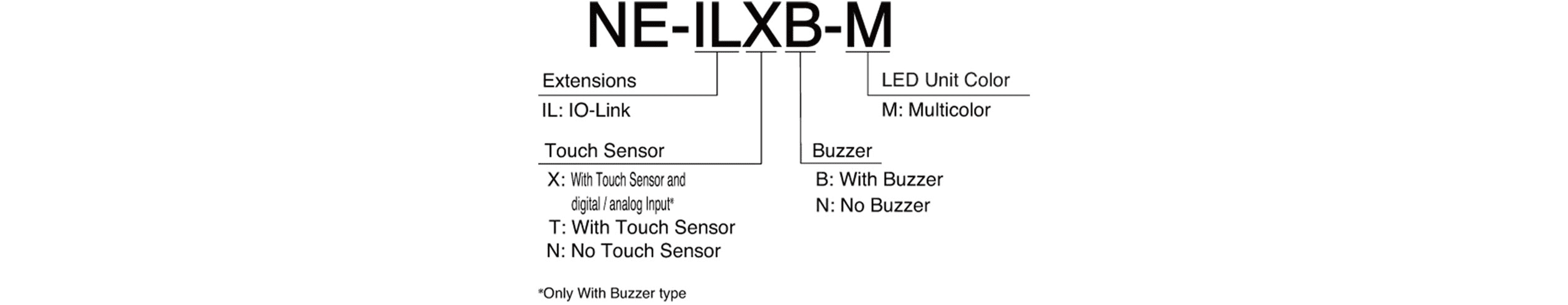

Model Number Configuration

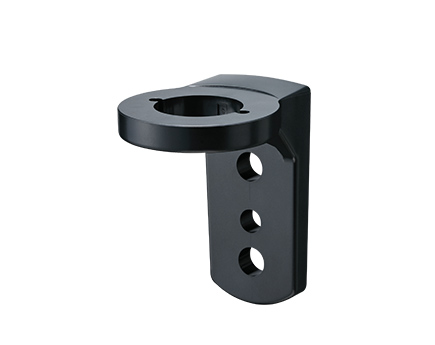

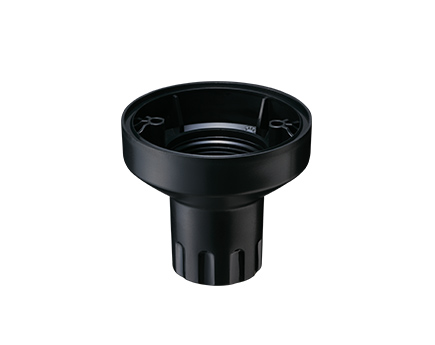

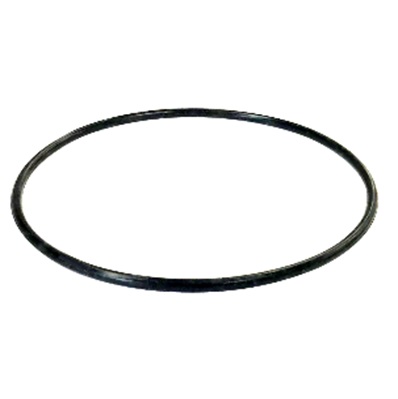

Accessories
