LED Work Light
CLN-A

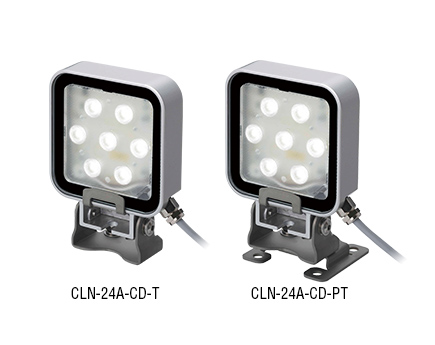

LED Work Light
The newly-designed LED Work Light model CLN outshines is predecessor, the CLM. With a thickness of 22.2mm, a brightness of 820lx, IP ratings of 66G/67G, 69K, two LED Colors of Daylight (6500K), or Warm White (2700K) and mounting flexibility with a flexible angle adjustment of 180 degrees, the CLN can be attached anywhere, even for the food industry.

Product Features


  • Resistant to Water, Oil and Coolants
  • Special design disperses heat radiation with illumination to surpass a 40W light bulb.

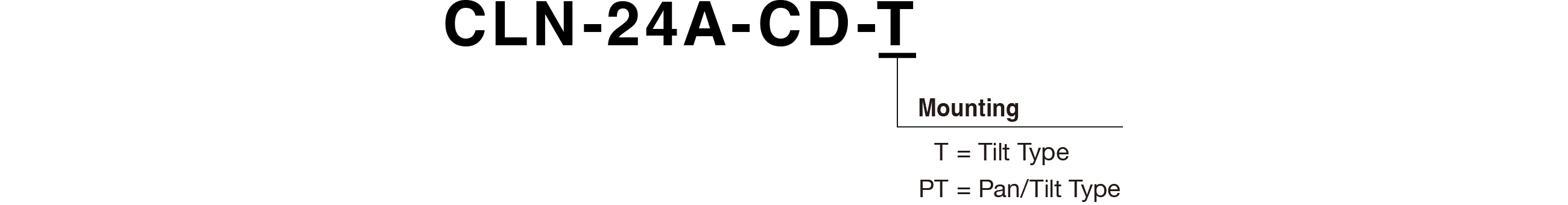

  • Two bracket options (Tilt, Pan-tilt),

  • Two directions (Up-down, Swivel) for attachment to adapt to various scenarios.

  • Two colors (Daylight, Warm White),

  • Operating temperature range of -40 to +60°C allows installation in sub-freezing temperature environments, such as cold storage warehouses.

  • Conforms to the CE requirements.

  • UL Listed (File No. E306141).






Specifications

DIMENSIONS・ Refer to Specification Sheet
RATED VOLTAGE24V DC ±10%
BODY STYLE・ Aluminum Alloy
LENS MATERIAL・ Tempered Glass
CONFORMITY STANDARDS・ RoHS Conformityc
・ UL Listed
・ IEC62471-2
・ CE Conformity<
PROTECTION RATING・ IP66G
・ IP67G
・ IP69K
