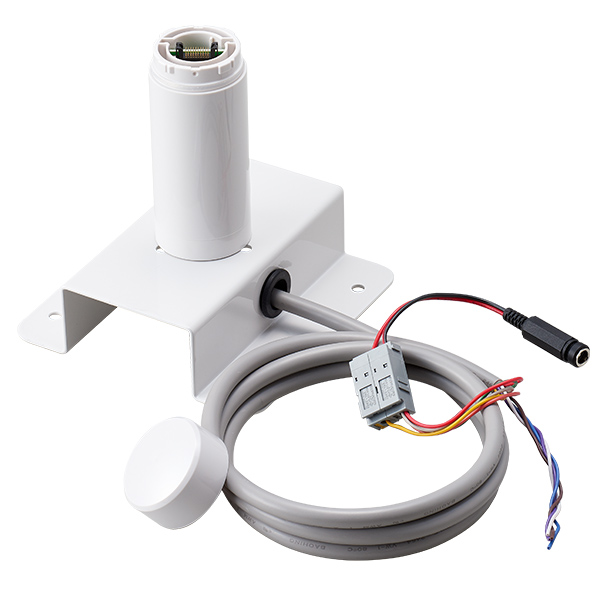

Wireless Data Acquisition System LR Transmitter
WDT-4LR-Z2
Wireless Data Acquisition System LR Transmitter
Transmitter attachment for the LR4 Signal Tower to enable wireless data transmission.

Product Features


The Wireless Data Acquisition System is a cost-effective, IIoT-enabled add-on for select PATLITE Signal Towers. This system allows signal towers to wirelessly transmit equipment status changes to a host PC for real-time monitoring and data analysis. Identify production bottlenecks, enhance supervisory control, optimize productivity, and improve Overall Equipment Effectiveness (OEE) with this complete, networked solution.





WDS




Model Specifications

Rated Voltage- 24V DC
Protocols- Telecommunication Protocols: IEEE-802.15.4 (Wireless Communications)
Functions- Connected Model: LR4 type Tiered Signal Tower Body unit top attachment
- Communication Frequency: 2405 MHz - 2480 MHz (16 channels)
- Communication distance: About 30m from source (Reference Value)
- Number of Available Contacts: Six points (red, amber, green, blue, white, buzzer)
Conformity Standards- Radio Law Authorized Country: Japan (ARIB STD-T66)
               United States (FCC)
               Europe (CE)
