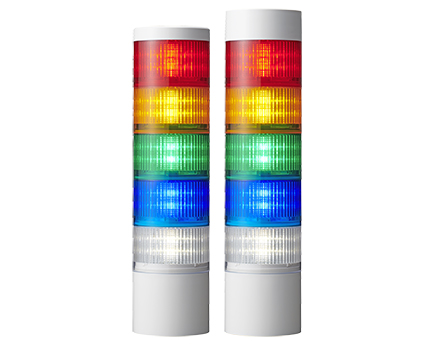

Signal Tower(Φ100)

Signal Tower with various light patterns and outdoor compatibility

  • I/O Control
  • M12 connector
  • Signal Tower
  • Φ100
  • Continuous on
  • Blinking
  • Flashing (Strobe)
  • Rotating
  • Alarm
  • 92dB
  • Indoor
  • Outdoor
  • IP66
  • IP69K

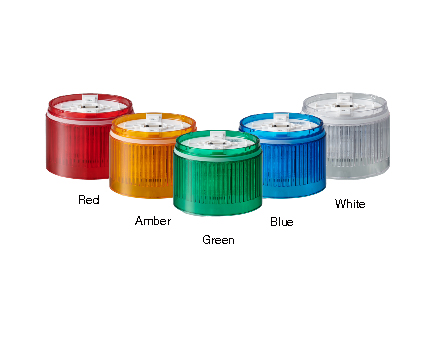

  • Red
  • Amber
  • Green
  • Blue
  • White
  • Signal Tower(Φ100) LR10
  • Various light patterns
    Continuous, Blinking, Flashing, and Rotating

    In addition to continuous and blinking, which are available with standard Signal Towers, flashing and motorless rotation were added.
    Optimal lighting method can be chosen depending on your requirements.
    Click here for video showing lighting patterns.

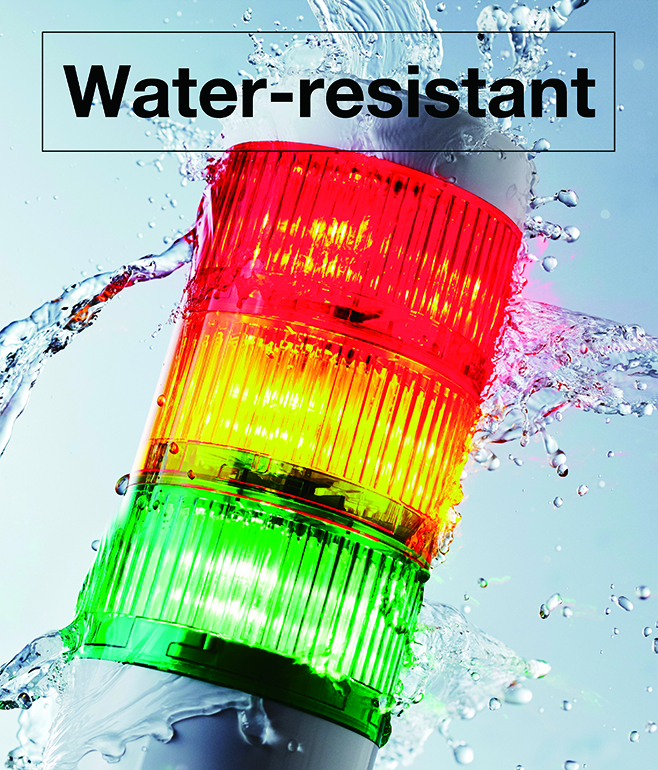

  • Meets IP66/69K
    Reliable even in harsh environments

    Highest class of waterproof and dustproof performance for Signal Towers.
    Not only can it be used outdoors, but it can also be used safely in food factories and other facilities.

    《Protection Rating》

    IP6X: Dust-resistant type (completely prevents dust from entering.)
    IPX6: Protect against Violent jet (Powerful jets of water with nozzles from all directions)
    IP69K: There should be no water ingress when a test unit is subjected to hot water at 80℃
       discharged through a nozzle of specified shape at a water pressure of 80-100 BAR and
       a flow rate of 14-16 liters/minute. Additionally, the distance between the test unit and nozzle
        is 10-15 cm, and water is discharged for 30 seconds in each direction, 0, 30, 60 and 90
       degrees, while the test unit rotated on a horizontal plane.

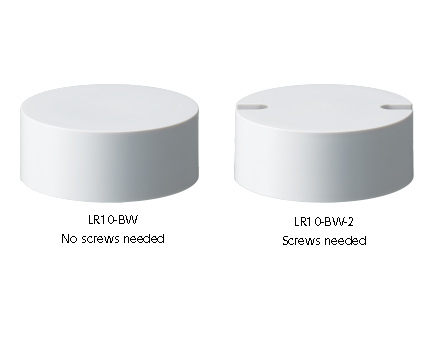

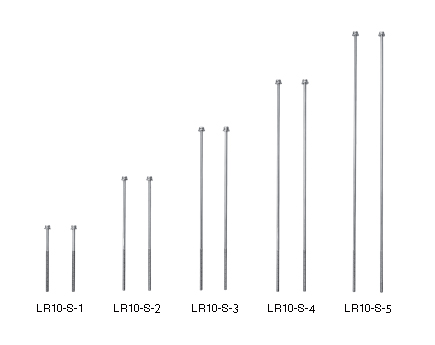

  • Screw-secured Head Cover and Buzzer Unit are available as options.

    Optional Head Cover and Buzzer Unit that are secured with screws are
    available to prevent them from falling off.
    Screws used in the pre-assembled unit can be used, so only the top unit needs
    to be replaced.

 Contact your dealer for different color combinations.




Product List

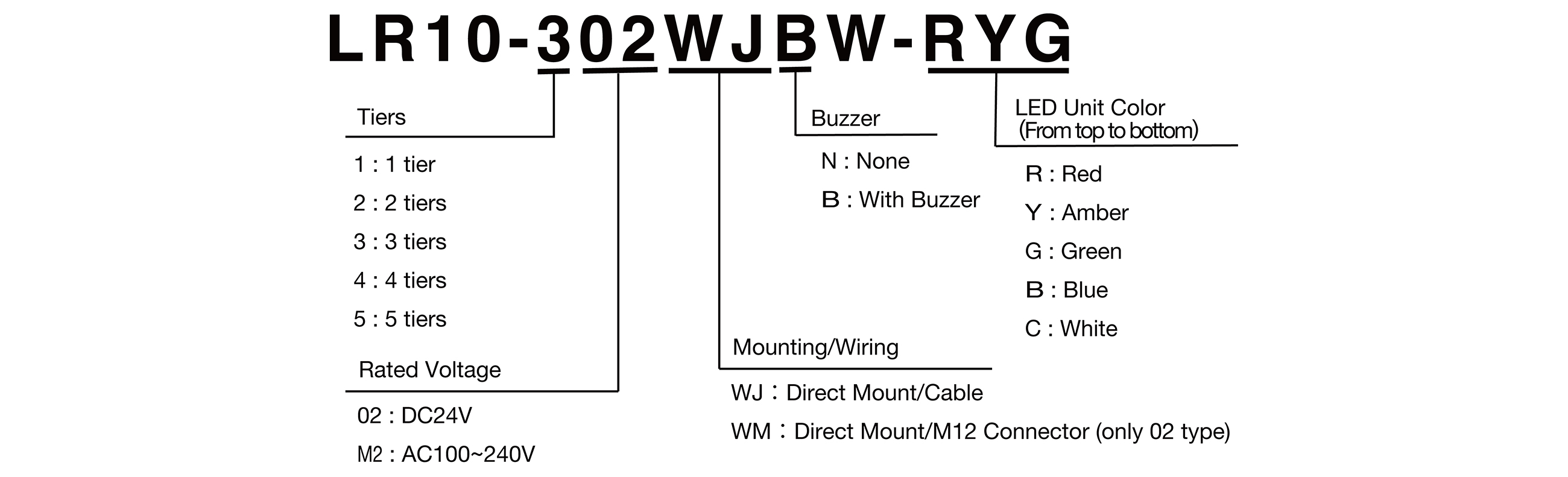

Model Number
of Tiers
Rated Voltage Buzzer Luminous Color
LR10-102WJNW-R/Y/G 1 DC24V None Red /Amber / Green
LR10-202WJNW-RY/RG 2 Red・Amber / Red・Green
LR10-302WJNW-RYG 3 Red・Amber・Green
LR10-402WJNW-RYGB 4 Red・Amber・Green・Blue
LR10-502WJNW-RYGBC 5 Red・Amber・Green・Blue・White
LR10-1M2WJNW-R/Y/G 1 AC100-240V Red /Amber / Green
LR10-2M2WJNW-RY/RG 2 Red・Amber / Red・Green
LR10-3M2WJNW-RYG 3 Red・Amber・Green
LR10-402WJBW-RYGB 4 Red・Amber・Green・Blue
LR10-502WJBW-RYGBC 5 Red・Amber・Green・Blue・White
LR10-102WJBW-R/Y/G 1 DC24V With Buzzer Red /Amber / Green
LR10-202WJBW-RY/RG 2 Red・Amber / Red・Green
LR10-302WJBW-RYG 3 Red・Amber・Green
LR10-402WJBW-RYGB 4 Red・Amber・Green・Blue
LR10-502WJBW-RYGBC 5 Red・Amber・Green・Blue・White
LR10-1M2WJBW-R/Y/G 1 AC100-240V Red /Amber / Green
LR10-2M2WJBW-RY/RG 2 Red・Amber / Red・Green
LR10-3M2WJBW-RYG 3 Red・Amber・Green
LR10-4M2WJBW-RYGB 4 Red・Amber・Green・Blue
LR10-5M2WJBW-RYGBC 5 Red・Amber・Green・Blue・White
LR10-302WMNW-RYG 3 DC24V
(M12 Connector)
None Red・Amber・Green
LR10-02WJNW 0 DC24V None None
LR10-M2WJNW 0 AC100-240V None None
(M12 Connector)
None None

(*) The download service of the data on this site is deemed to have agreed to the following "".

(*) The download service of the data on this site is deemed to have agreed to the following "".



Replacement Parts

Category No. Part Name Part Number Required Qty Specification Approximate time of replacement
GA0001577-F1 1

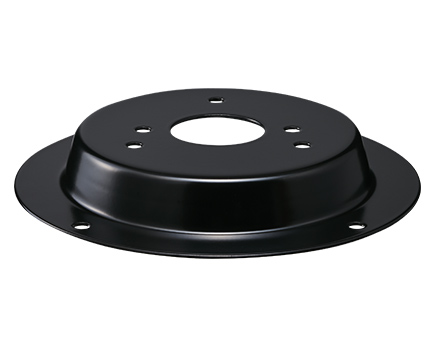

Mounting Gasket
