LED Work Light – Rugged & Hygienic
CLA-02

ECOLAB®

Ideal for control panels, food, beverage, and pharmaceutical facilities, this LED Work Light is IP67/IP69K rated and ECOLAB certified, built to withstand high-pressure washdowns, chemical cleaning, and sanitization processes.



*Units include SZW-301 brackets

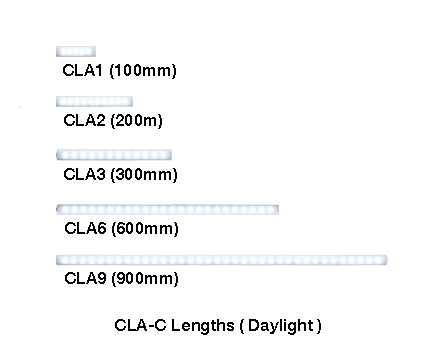

  • 100/200/300/600/900
  • LED Lighting
  • Indoor
  • IP66
  • IP67
  • IP69K
  • Daylight
  • Amber

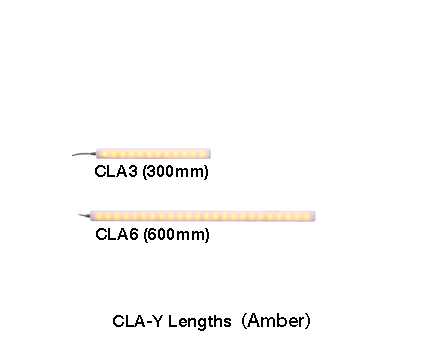

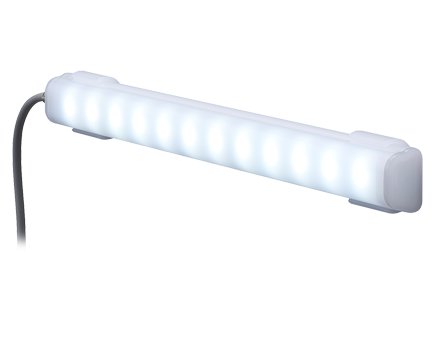

  • LED Work Light – Rugged & Hygienic CLA-02
  • LED Work Light – Rugged & Hygienic CLA-02
  • LED Work Light – Rugged & Hygienic CLA-02
  • LED Work Light – Rugged & Hygienic CLA-02
  • LED Work Light – Rugged & Hygienic CLA-02
  • LED Work Light – Rugged & Hygienic CLA-02
  • LED Work Light – Rugged & Hygienic CLA-02

Brighter and More Energy Efficient

Rugged Build with Excellent Light Distribution

Wide illumination coverage

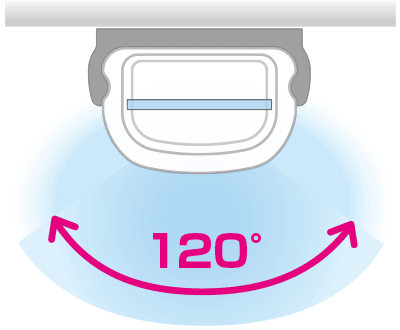

Compared to prior models, the luminous flux is increased by 65%, and the illuminance is increased by 71%. The seamless milky-white housing delivers uniform brightness across a 120° area. Luminous efficacy has also been improved, making CLA-02 both bright and energy efficient.
(*for 300mm daylight model)

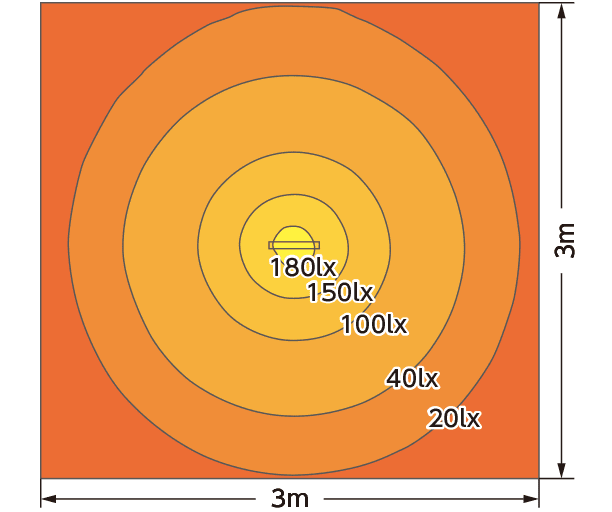

Illuminance Distribution (CLA3, at 1 m)

Illuminance distribution chart

Calculated values; actual results may vary.

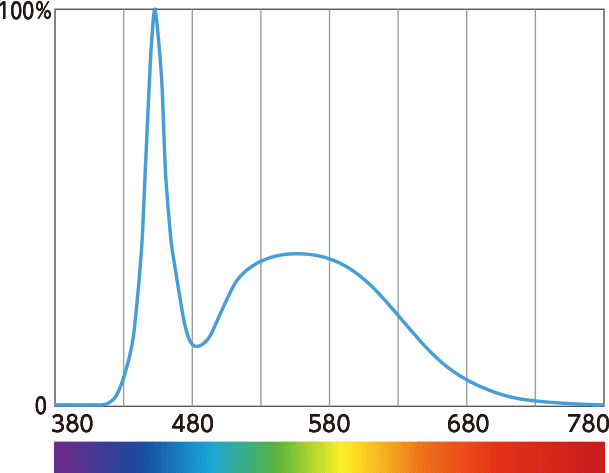

Spectral Distribution
(Relative Intensity)

Spectral distribution (relative intensity)

Wavelength (nm)

High Durability and Hygienic Design

Withstands High-Pressure/High-Temperature Washdown, Chemical Disinfection, and Sterilization

IP67/IP69K

IP67/IP69K

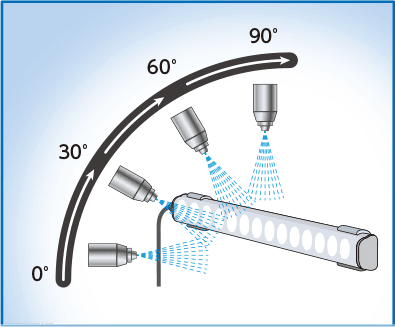

Impact-resistant polycarbonate body prevents breakage and foreign-object ingress. Operating range −40°C to +60°C. IP69K rating suits cold storage and equipment requiring high-temp cleaning.

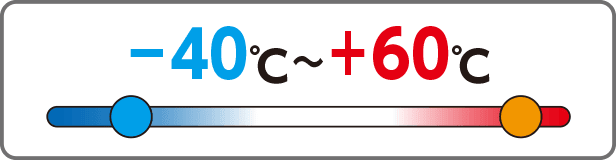

−40°C to +60°C
  • Passed ECOLAB evaluation test*
  • H2O2 resistant

Resistant to common cleaning agents and hydrogen peroxide spray sterilization

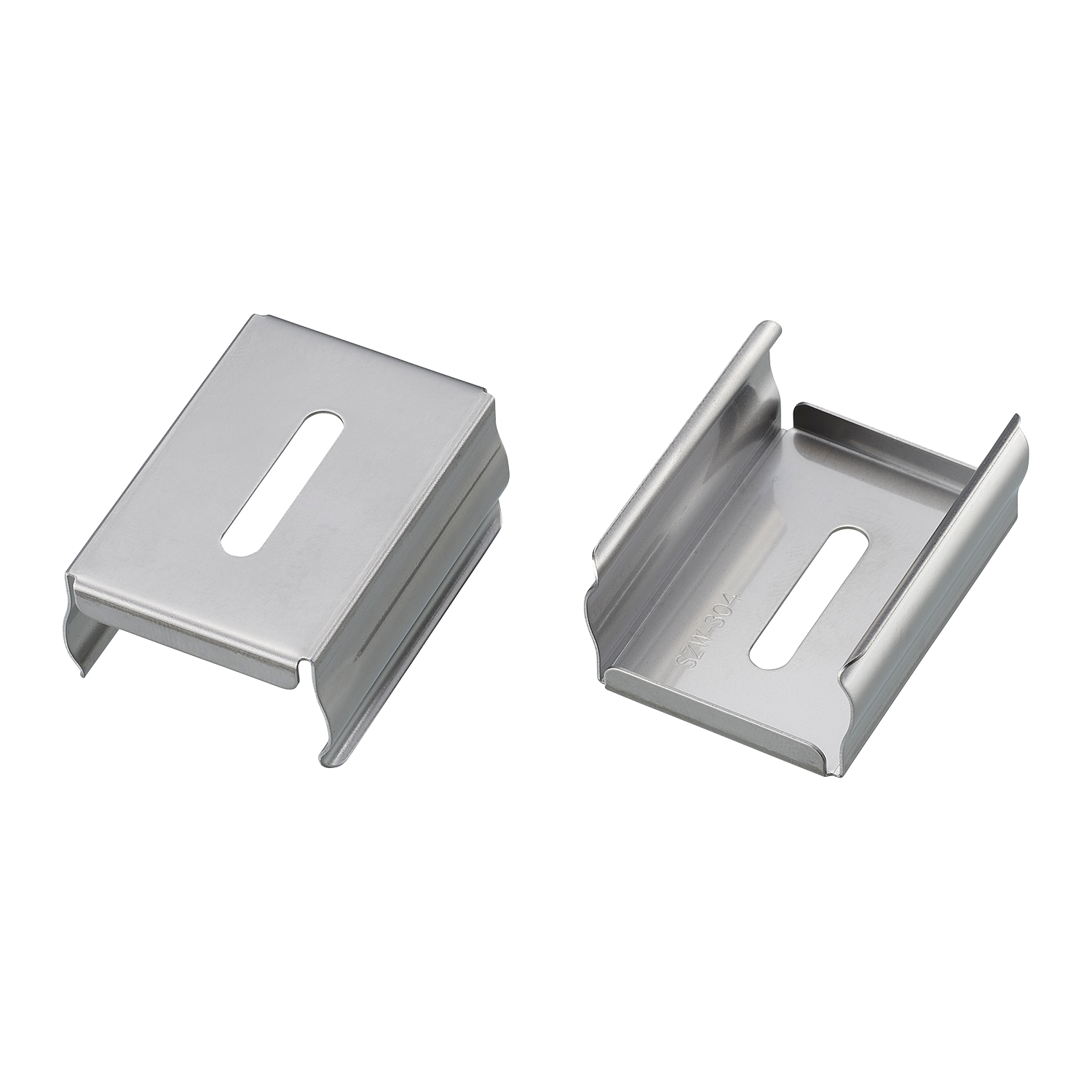

Tested and passed with the agents below (with SUS bracket SZW-304)

Category Product Concentration
Alkaline detergent Topaz MD6 5%
Acidic detergent Topactive 500 6%
Chlorine-based alkaline detergent P3-Topax 66 3%
Acidic, oxidizing disinfectant Topactive OKTO 3%
Neutral detergent P3-Topax 990 3%

Fast Installation, Less Wiring

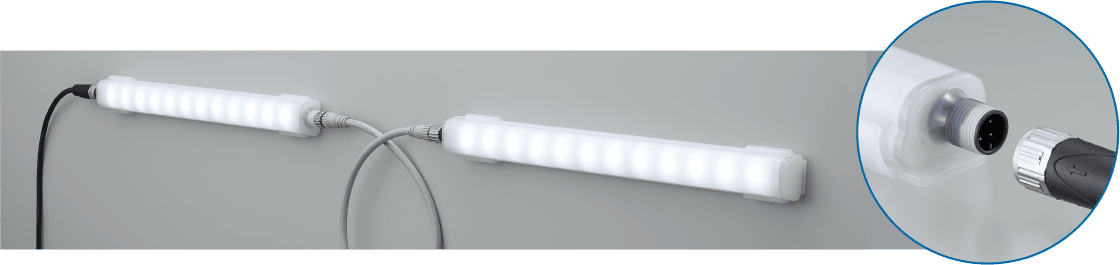

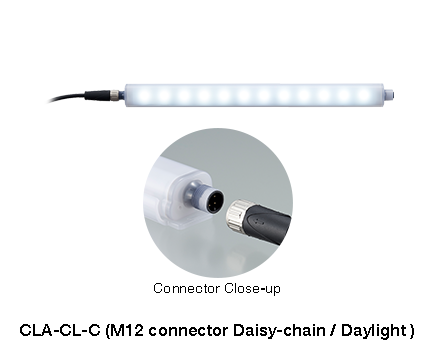

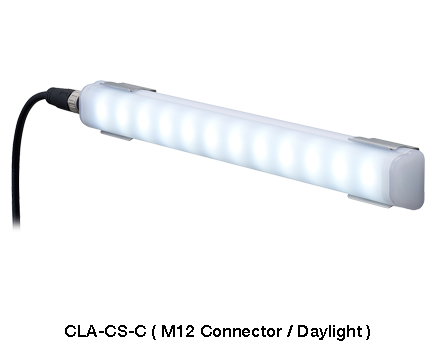

In addition to the cable connection (JS type), the CLA-02 offers an M12 connector (CS type) and an M12 connector daisy-chain option (CL type) to reduce wiring errors and labor.

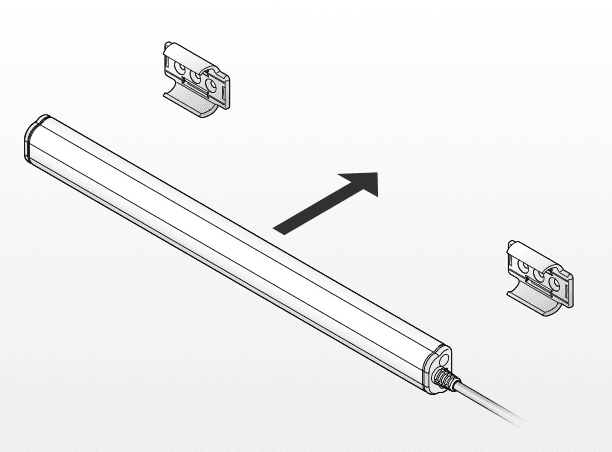

Bracket mounting diagram

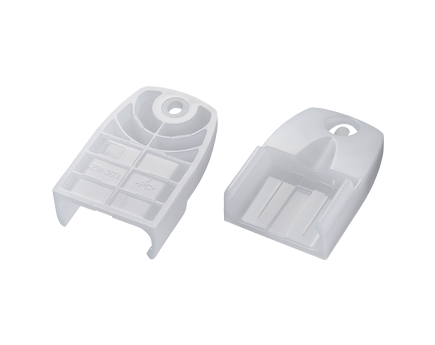

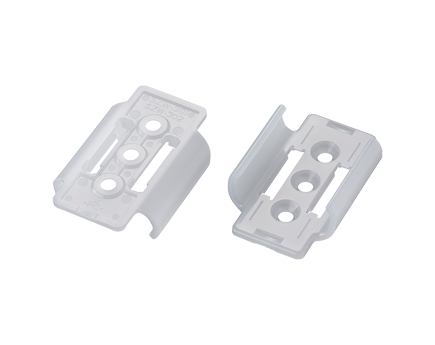

Slim housing mounts easily with the rear bracket (SZW-301) included with the CLA-02 unit. Optional magnetic and SUS brackets are available separately.

Amber LED for Semiconductor Use

The CLA-02 Amber model is optimized for semiconductor photolithography, featuring a peak wavelength of 590 nm with negligible blue light output (430–490 nm), making it suitable for cleanroom lighting.

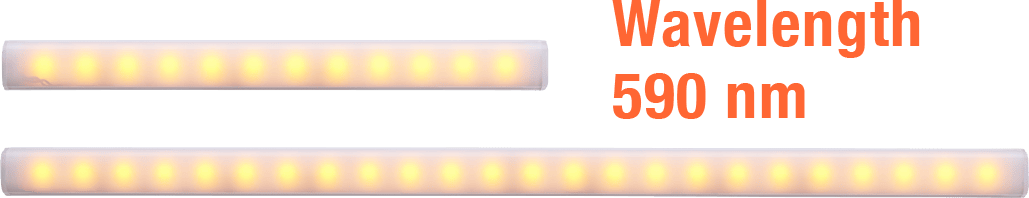

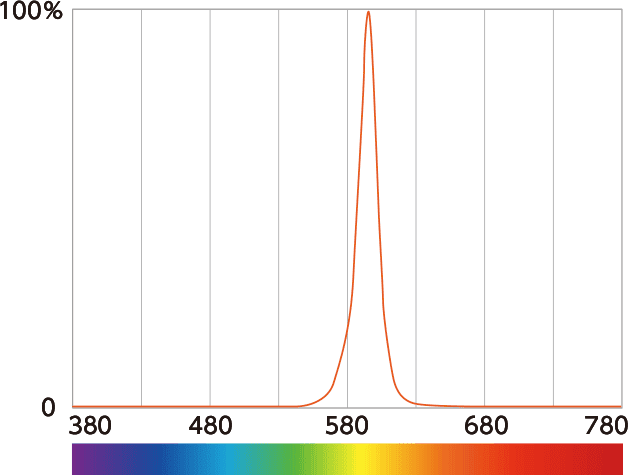

CLA-02 Amber with 590 nm peak wavelength spectrum

Spectral Distribution
(Relative Intensity)

Spectral distribution (relative intensity)

Wavelength (nm)

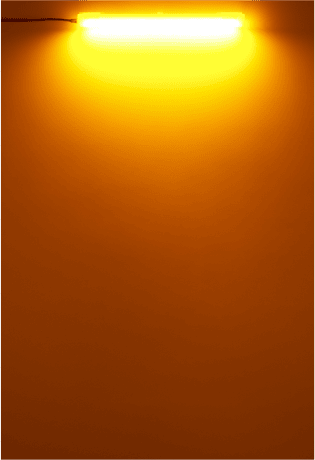

Amber illumination image

Applications

Uniform Illumination Boosts Productivity

Control Panel

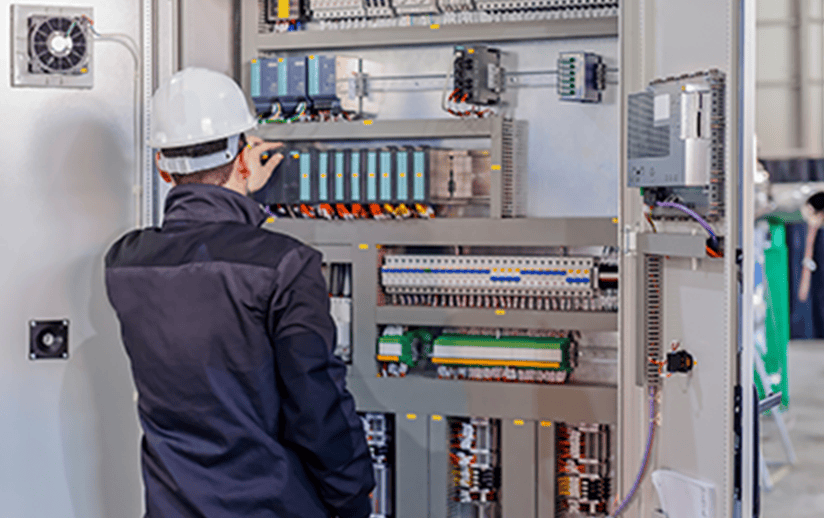

Control panel
  • Milky-white housing provides uniform light distribution
  • Less wiring with M12 connector daisy-chain

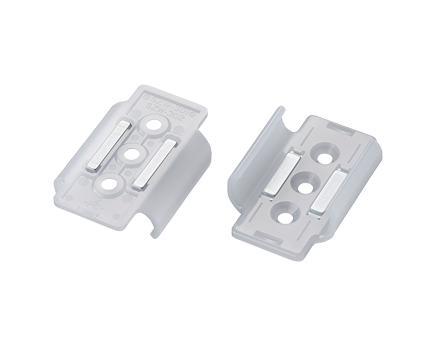

  • Quick panel installation with optional magnetic bracket SZW-302

Durable Lighting Ensures Hygiene

Food Processing Line

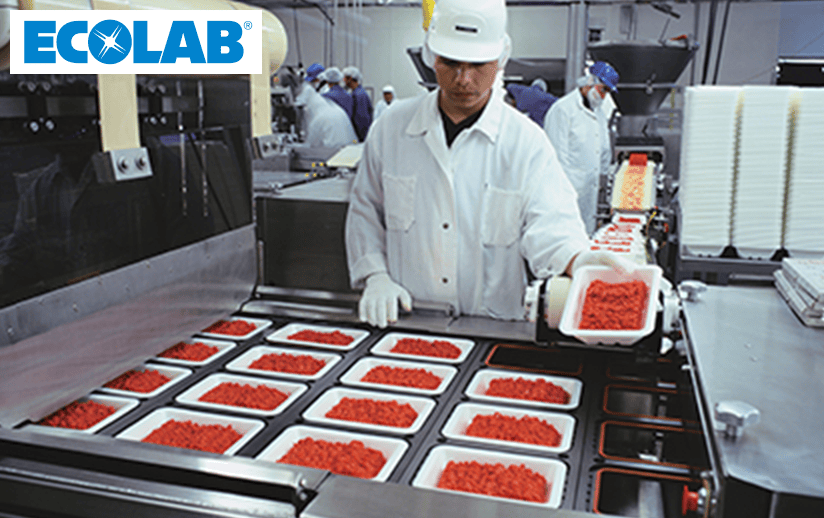

Food processing line
  • IP69K rating for high-pressure, high-temp washdown
  • H2O2 resistance

If using alkaline detergents, confirm compatibility before use.

Prevents Unwanted Exposure in Lithography

Semiconductor Factory

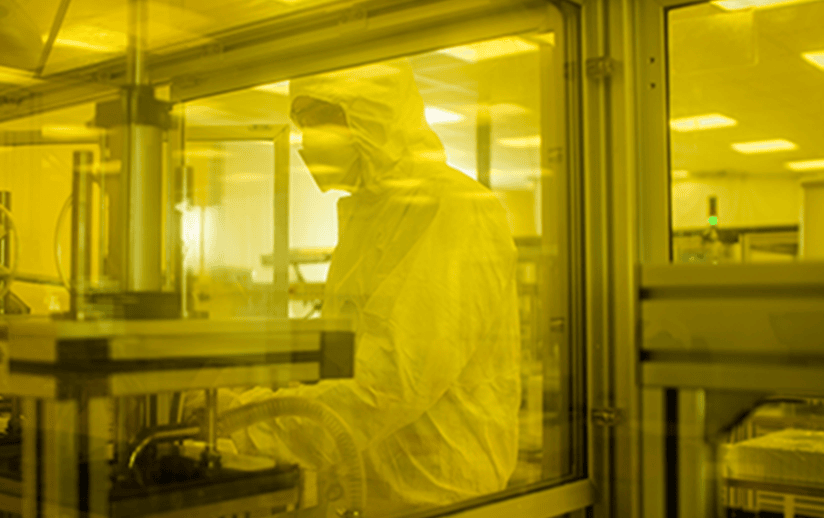

Semiconductor factory
  • 590 nm peak wavelength spectrum
  • Two sizes: 300 mm, 600 mm
  • Luminous flux: 140 lm (300 mm), 280 lm (600 mm)

Model Code

Product Lineup

Model Length of Illuminated Area Length Rated Voltage Wiring Type Luminous Color

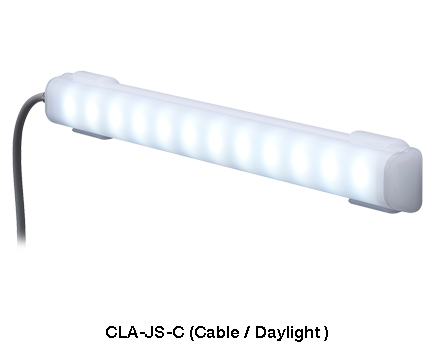

CLA1-02JSN-C 100mm 24V DC Cable Daylight
CLA1-02CSN-C 100mm 24V DC M12 Connector (4 pin) Daylight
CLA2-02JSN-C 200mm 24V DC Cable Daylight
CLA2-02CSN-C 200mm 24V DC M12 Connector (4 pin) Daylight
CLA3-02JSN-C 300mm 24V DC Cable Daylight
CLA3-02CSN-C 300mm 24V DC M12 Connector (4 pin) Daylight
CLA3-02CLN-C 300mm 24V DC M12 Connector Daisy-chain Daylight

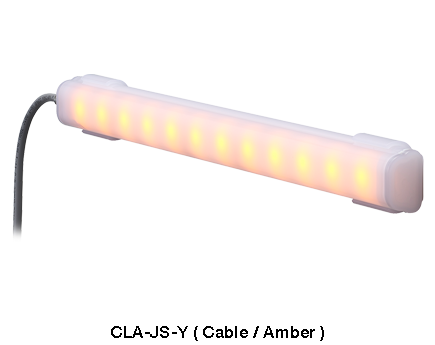

CLA3-02JSN-Y 300mm 24V DC Cable Amber
CLA6-02JSN-C 600mm 24V DC Cable Daylight
CLA6-02CSN-C 600mm 24V DC M12 Connector (4 pin) Daylight
CLA6-02JSN-Y 600mm 24V DC Cable Amber
CLA9-02JSN-C 900mm 24V DC Cable Daylight
CLA9-02CSN-C 900mm 24V DC M12 Connector (4 pin) Daylight
