Flashing Beacon
GL7

The GL7 Flashing Beacon is built with a rugged, IP69K-rated housing that resists vibration and impact. Its compact design fits tight spaces, while various flash patterns and control modes (CAN or voltage) make it ideal for status indication on outdoor equipment and compact machinery.

  • I/O Control
  • CAN communication control
  • Φ68
  • Signal Light
  • Flashing (Strobe)
  • Outdoor
  • Indoor
  • IP69K
  • Red
  • Amber
  • Green

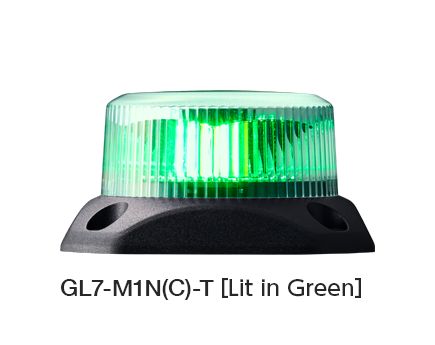

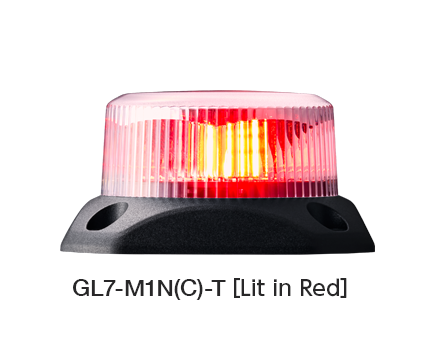

  • Flashing Beacon GL7
  • Flashing Beacon GL7
  • Flashing Beacon GL7
  • Flashing Beacon GL7
  • Flashing Beacon GL7
  • Flashing Beacon GL7
  • Flashing Beacon GL7
  • Flashing Beacon GL7

Durable Compact Signal Light Designed for Harsh Environments

Designed for Extreme Environments

Vibration Resistant
[Vibration res.] 110 m/s², [Impact res.] 1,000 m/s²
Dustproof and Watertight
IP69K -- High-Temperature, High-Pressure Washable

Compliant with international standards, including EMC (ISO 13766-1) and environmental testing (ISO 16750).

Space-saving Compact Design

Slim design requiring minimal installation space, ideal for use on compact construction machinery and forklifts.

Product Dimensions

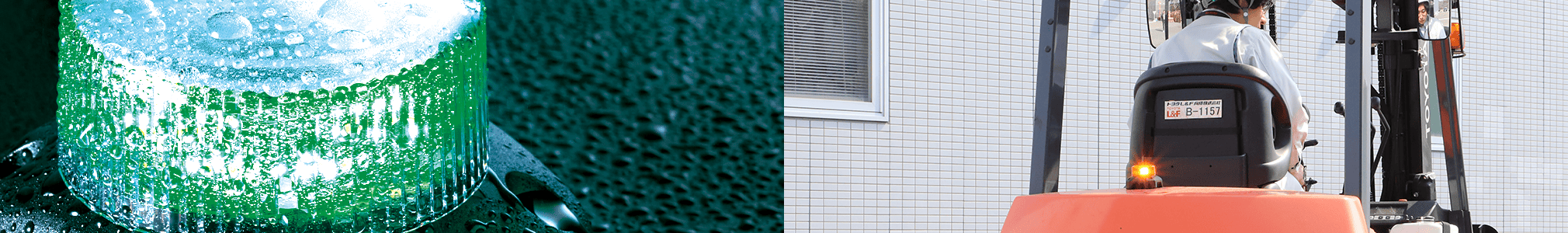

Image: GL7 IP69K Model

Multiple flash patterns available to suit your application.

  • Easily distinguish status through three-color LED and distinctive flash patterns.
  • Clear differences in flash patterns ensure visibility and accessibility for users with color vision deficiency.

>> See all flash patterns here

2 Control Options Available

CAN Communication Control

  1. Compatible with the SAE J1939 protocol, widely used in construction machinery.
  2. Allows command-based control of 13 flash patterns and 4 brightness levels.
  3. Real-time monitoring of indicator status contributes to building safer system architectures.
  4. Automatically adapts to communication speeds of 250 kbps or 500 kbps—no manual setup needed.

Wire Lead Control

  1. Non-communication type controlled with wire leads
  2. Distinct, fixed flash patterns per color help ensure visibility and support users with color vision deficiency.

Flash patterns are fixed for this model; status monitoring is not supported.

Application Examples

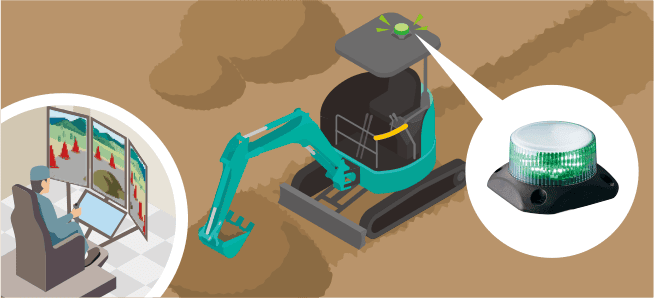

Status indication for remotely operated

Status indication for remotely operated

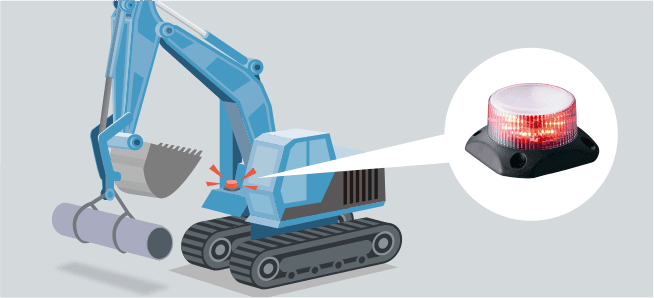

Overload prevention indication

Overload prevention indication

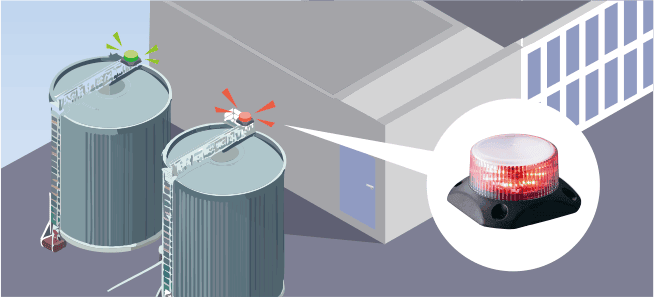

Outdoor equipment fault and status alerts

Outdoor equipment fault and status alerts

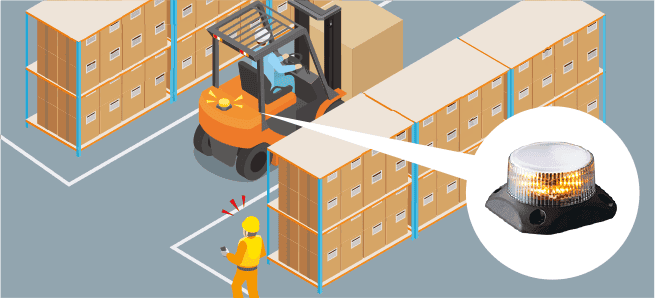

Safety measures in logistics warehouses

Safety measures in logistics warehouses
Optional Accessory

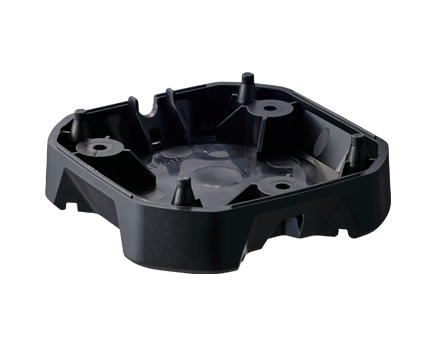

GL-001 product image

Magnetic Bracket
GL-001

Easy Magnetic Mount

With the optional magnetic bracket, you can install the unit without drilling or making any modifications*, making it ideal for use with rental equipment.

Compatible Models: GL7-M1N-T, GL7T-M1N-T, GL7-M1N-Y, GF7-48N-Y
When mounted with GL-001, the vibration resistance will be 45 m/s².

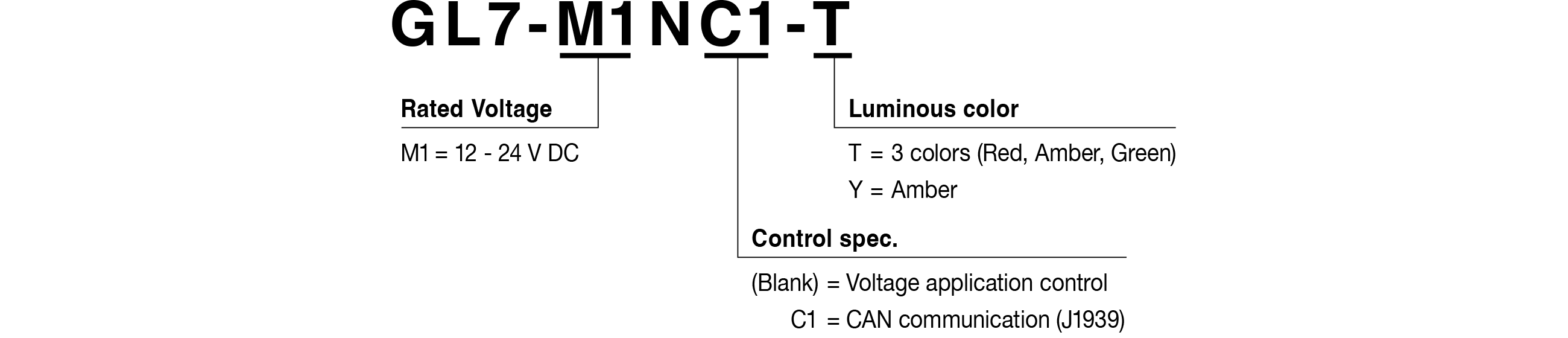

Model Code

Model Code

Product Lineup

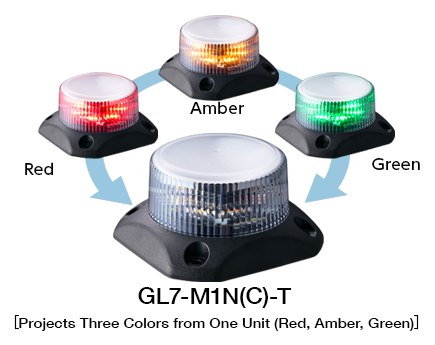

3-Color Multi-Color Models

Model Rated Voltage Control spec. Luminous Color Flash Pattern

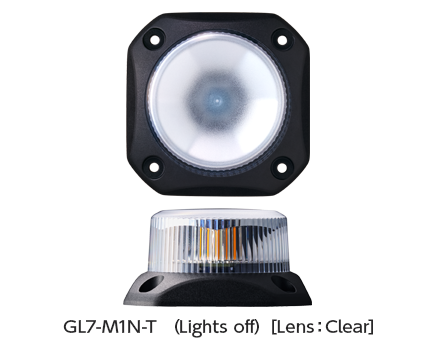

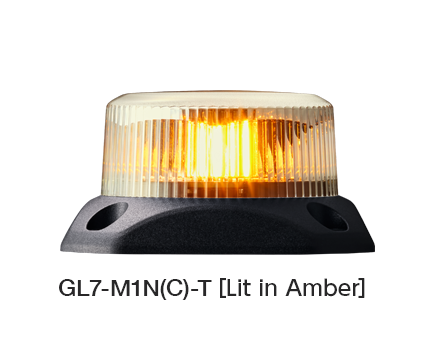

GL7-M1N-T 12–24 V DC Voltage-Controlled 3 Colors
(Red, Amber, Green)
Flashing (Fixed pattern per color)
GL7-M1NC1-T CAN Communication (J1939) Selectable: Flashing, Steady-on, Soft-blink, etc.

Single-Color Models

Model Rated Voltage Control spec. Luminous Color Flash Pattern

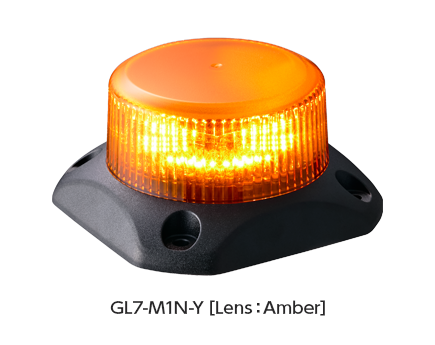

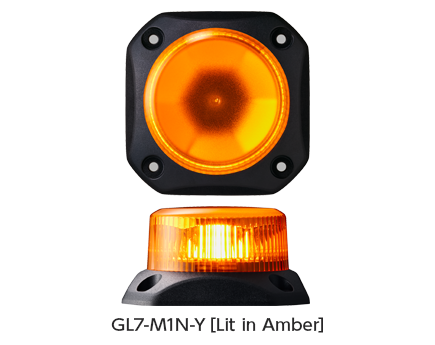

GL7-M1N-Y 12–24 V DC Voltage-Controlled Amber Flashing
