80mm Voice Synthesizer
BDV

The BDV is an MP3 voice annunciator which produces excellent sound quality from pre-recorded MP3 files. The panel mounting style results in a clean, integrated look for most any application and programming it is easily accomplished with Patlite's SD card (sold separate) and Patlite's free (downloadable) programming software.

  • I/O Control
  • □80
  • MP3 Annunciator
  • Voice
  • 87dB or more
  • Indoor
  • Outdoor
  • IP54
  • 80mm Voice Synthesizer BDV
  • Only embedded mounting style available.
  • Able to produce a loud sound of up to 87 dB (at 1m) despite its compact size
  • A volume control on the front panel provides an easy way to adjust the sound volume.
  • The use of an SD card allows message changes without dis-mounting the device.
  • Environmentally friendly since the unit complies with the EU RoHS Directives.
  • Several playback modes are available for various applications.
  • Includes binary input as a standard option for selecting up to 15 messages.
  • Supports input selection using NPN open-collector transistor.
  • The unit complies with EU Directives and includes the CE mark (BDV-15JF only)
  • Two colors are available for selecting the best color match for the installation.
  • Protection rating: IP54 (only the front when flush mounted)

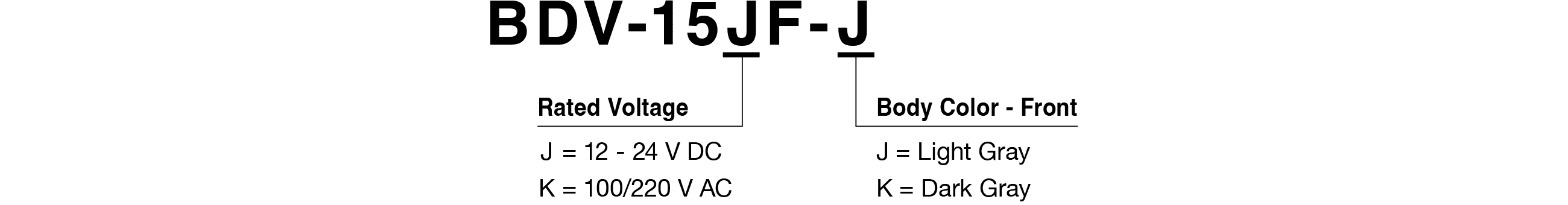

Model Specifications

DIMENSIONS - 80mm x 80mm x 94.7mm
RATED VOLTAGE - 12/24V DC
- 100/220V AC
BODY COLOR - Dark Gray
- Light Gray
VOLUME - Maximum 87dB at 1 meter
SOUND STORAGE - Approximate Recording Time: 63 seconds (Bit rate=64k/s)
CHANNEL SELECTION - Select 1 of 4 channels available by signal input to 1 or 4 terminals
- In Binary Mode, select 1 of 15 channels available by signal inputs among 4 terminals
CONFORMITY STANDARDS - CE Marking
- RoHS
- MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thompson Licensing
PROTECTION RATING - IP54
FUNCTIONS - Sound Reduction Mode reduces volume by 10dB

(*) The download service of the data on this site is deemed to have agreed to the following "".

(*) The download service of the data on this site is deemed to have agreed to the following "".

BDV  

BDV  

Replacement Parts

Category No. Part Name Part Number Required Qty Specification Approximate time of replacement
Slot Waterproof Cover
C25110015-F1 1

-

-

Terminal Cover
C15140003-F1 2

-

-

Mounting Bracket (2 pieces)
V82100001-F1 2

-

-
