120mm Voice Synthesizer
BKV

The BKV is an MP3 voice annunciator which produces excellent sound quality from pre-recorded MP3 files. The panel mounting style results in a clean, integrated look for most any application and programming it is easily accomplished with Patlite's SD card (sold separate) and Patlite's free (downloadable) programming software.

  • I/O Control
  • □120
  • MP3 Annunciator
  • Voice
  • 95dB or more
  • Indoor
  • Outdoor
  • IP54
  • 120mm Voice Synthesizer BKV
  • Only embedded mounting style available.
  • Able to produce a loud sound of up to 95 dB (at 1m) despite its compact size
  • A volume control on the front panel provides an easy way to adjust the sound volume.
  • The use of an SD card allows message changes without dis-mounting the device.
  • Environmentally friendly since the unit complies with the EU RoHS Directives.
  • Several playback modes are available for various applications.
  • Includes binary input as a standard option for selecting up to 31 messages.
  • Supports input selection using NPN open-collector transistor.
  • The unit complies with EU Directives and includes the CE mark (BKV-31JF only)
  • Two colors are available for selecting the best color match for the installation.
  • Protection rating: IP54 (only the front when flush mounted)





DIMENSIONS - 120mm x 120mm x 62.8mm

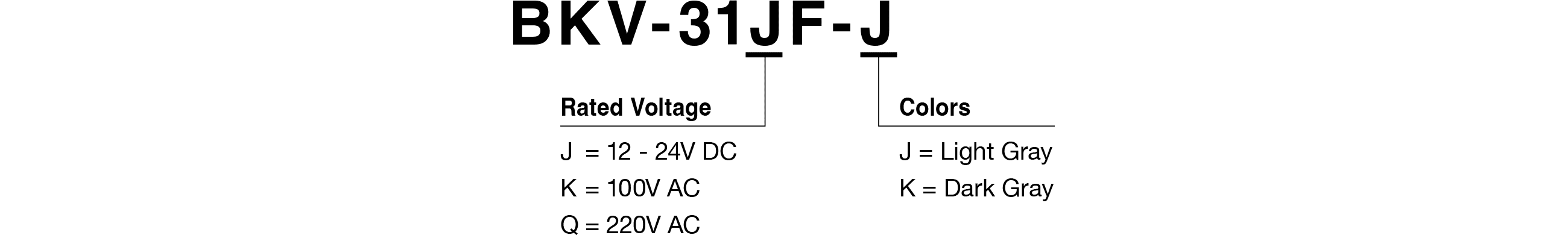

RATED VOLTAGE - DC12/24V
- AC100V
- AC220V
MOUNTING - Panel Mount
- Vertical mounting angle only
- Indoor: Upright, upside-down, sideways
- Outdoor: Upright only
BODY COLOUR - Dark Grey
- Light Grey
VOLUME - Maximum 95dB at 1 metre
- Adjustable volume control
SOUND STORAGE - Approximate Recording Time: 63 seconds (Bit rate=64k/s)
CHANNEL SELECTION - Bit Mode: Select from 1 to 5 channels available with a signal input
- Binary Mode: Select from 1 to 31 channels available with a signal input
CONFORMITY STANDARDS - CE Marking (BKV-31JF only)
- RoHS
- MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson Licensing
PROTECTION RATING - IP54 (Upright Only)
FUNCTIONS - Momentary Input: Message plays once
- Sustained Input: Message repeats until input is open
REMARKS - Dry contact closure such as switches or relay contacts
- Open-collector transistor (NPN only)
OPTIONS - Playlist Editor 2 (Free Software Version)
- SDV-2GP: SD Card (for MP3 file transfer and storage)

(*) The download service of the data on this site is deemed to have agreed to the following "".

(*) The download service of the data on this site is deemed to have agreed to the following "".

BKV  

BKV  

Replacement Parts

Category No. Part Name Part Number Required Qty Specification Approximate time of replacement
Slot Waterproof Cover
C25110015-F1 1

-

-

Terminal Cover
C15140004-F1 2

-

-

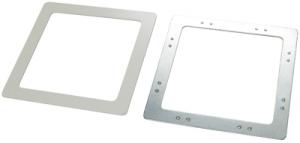

Mounting Bracket (2 pieces)
V82100001-F1 2

-

-
