Φ60mm Smart LED Signal Tower Lights
LA6 Series

This programmable device simplifies operations by consolidating 21 colors and 11 alarms into one part number. Features include continuous, flashing, or pulsing lights, a web interface for easy setup, and versatile 24V DC and 100-240V AC power options.

  • Contact control
  • Signal Tower
  • Φ60
  • Continuous on/Flashing/Pulse
  • Alarm
  • 85dB
  • Indoor
  • IP65 (DC24V, no alarm)
  • IP54
  • Multi-color
  • 21 colors
  • Φ60mm Smart LED Signal Tower Lights LA6 Series
  • Built-in web interface for quick and easy configuration
  • Includes 21 programmable LED colors
  • Continuous light, flashing, or pulsing
  • 24V DC and 100-240V AC (M2 type)
  • Click here to download [link to download] the free programming software.

Specifications

Dimensions Φ60mm
Rated Voltage 24V DC
100-240V AC (WJ Type Only)
Functions Operates in three different display modes:
Single Display
Time-trigger Display
Pulse-trigger Display
Mounting Direct Mounting (TN, WJ Type)
Steel Pole Mounting (LJ Type)
Body Color Off-white
Silver
Body Style TN : Screwless Terminal
LJ : Pole with Cable Connection
WJ : Direct Mount with Cable Connection

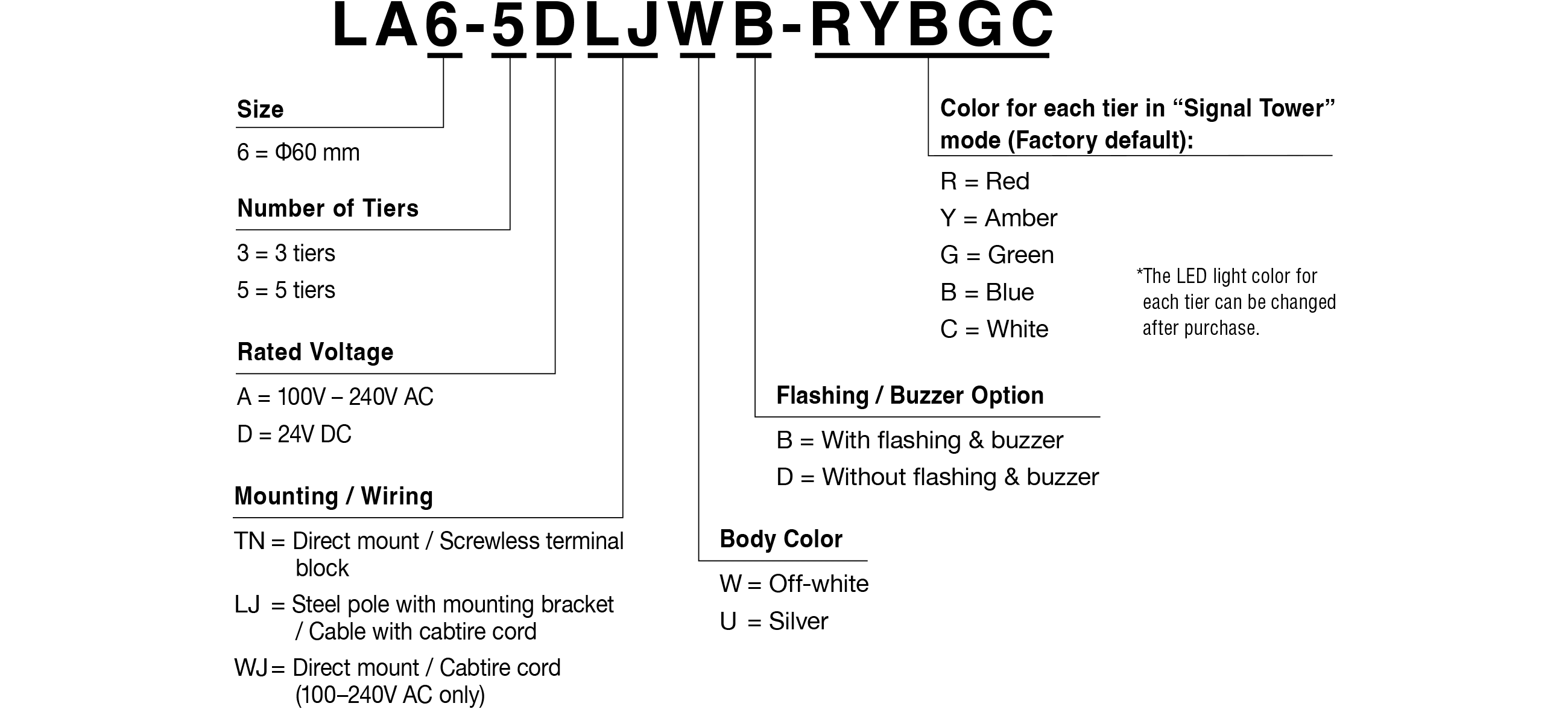

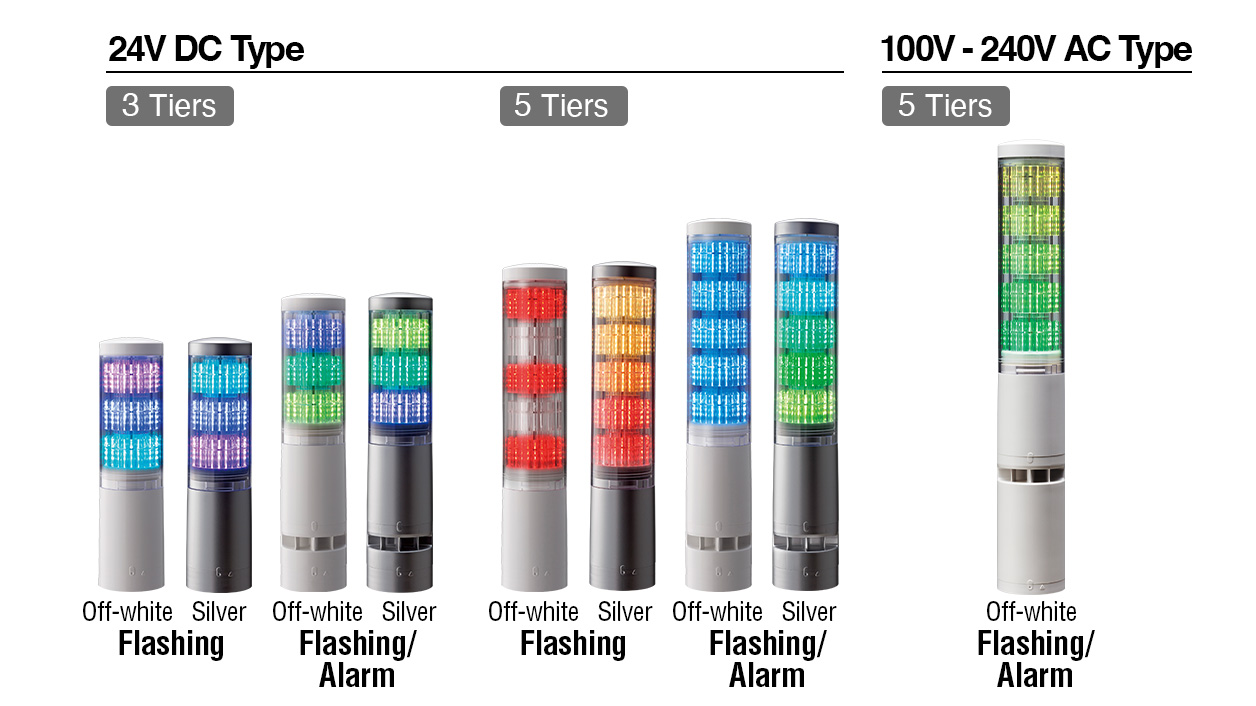

Stackable tiers 3 Tier
5 Tier
Module Colors 21 colors
Audible Style 11 alarm sounds available
Conformity Standards EMC Directive
RoHS Directive
UL 508
FCC
KC
Protection Rating IP65
IP54 (with Alarm)
Remarks Free downloadable application software
UL Recognized Components (24V type only)



Movie

To download free software from our Exclusive LA6 Webpage, click here!

(*) The download service of the data on this site is deemed to have agreed to the following "".

(*) The download service of the data on this site is deemed to have agreed to the following "".

LA6-□DLJW□(Steel Pole & L-Bracket with Cable )  

LA6-□DLJW□(Steel Pole & L-Bracket with Cable )  

Replacement Parts

Category No. Part Name Part Number Required Qty Specification Approximate time of replacement

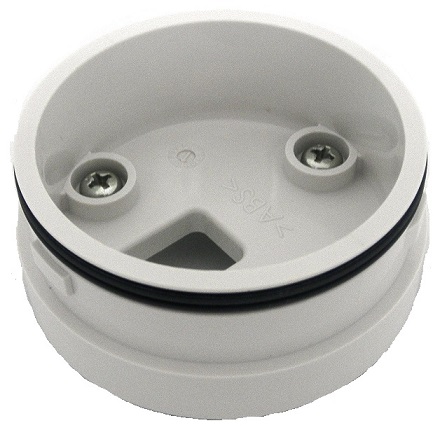

Direct-mount Bracket : Off-white
B22202027-7F1 1
Headcover: Off-white
B31310001-7F1 1
USB Cover: Off-white
B22100071-7F1 1
Waterproof Packing (2 pieces)
B25110042-F1 1

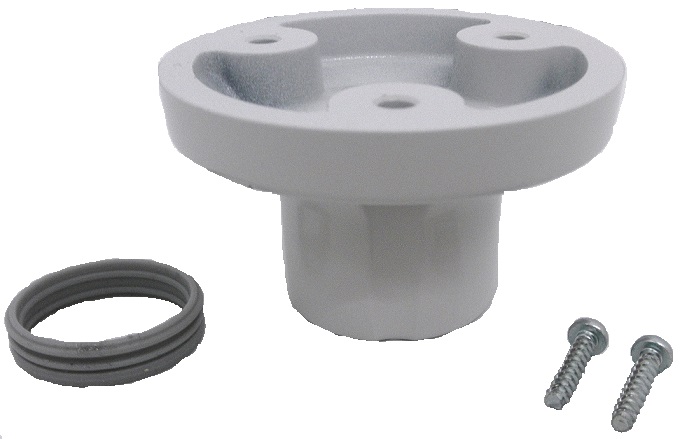

Pole Bracket with O-ring : Off-white
B22210134-7F1 1

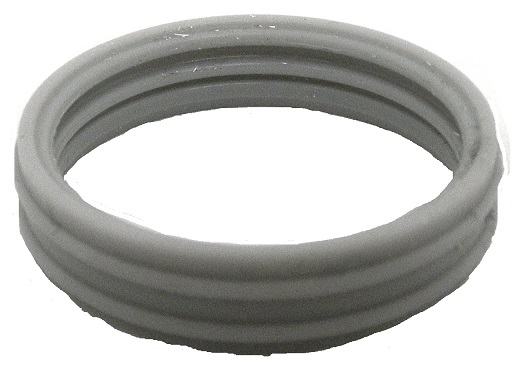

Waterproof Ring
B25110047-F1 1
Hexagonal Nut: M22
S33533110-222F1 2
Flat washer: M22
S33642010-222F1 2
LA6-□□WJW□(Direct mount with cable connection)  

LA6-□□WJW□(Direct mount with cable connection)  

Replacement Parts

Category No. Part Name Part Number Required Qty Specification Approximate time of replacement
Headcover: Off-white
B31310001-7F1 1
USB Cover: Off-white
B22100071-7F1 1
Waterproof Packing (2 pieces)
B25110042-F1 1
Direct-mount Bracket : Off-white
B22202027-7F1 1
LA6-□DTNW□(Direct mount with Screwless Terminal Block connection)    

LA6-□DTNW□(Direct mount with Screwless Terminal Block connection)    

Replacement Parts

Category No. Part Name Part Number Required Qty Specification Approximate time of replacement
Headcover: Off-white
B31310001-7F1 1
USB Cover: Off-white
B22100071-7F1 1
Waterproof Packing (2 pieces)
B25110042-F1 1

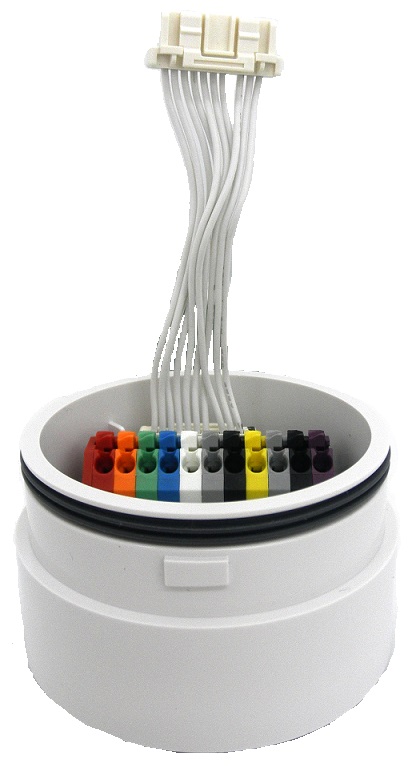

Terminal Block Bracket : Off-white
B22202028-7F1 1
LA6-□DTNU□(Direct mount with Screwless Terminal Block connection)  

LA6-□DTNU□(Direct mount with Screwless Terminal Block connection)  

Replacement Parts

Category No. Part Name Part Number Required Qty Specification Approximate time of replacement

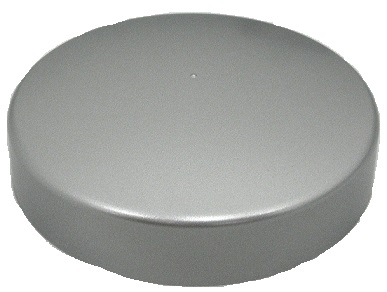

Headcover: Silver
B31310001-9F1 1

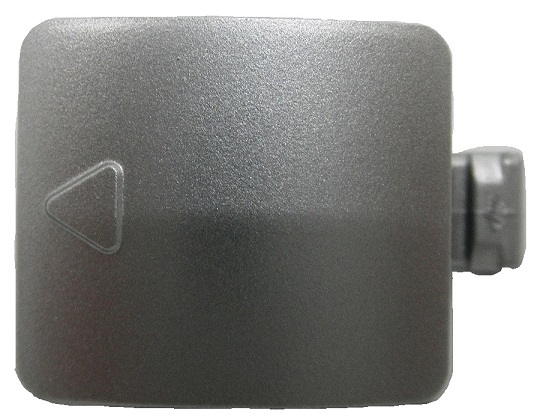

USB Cover: Silver
B22100071-9F1 1
Waterproof Packing (2 pieces)
B25110042-F1 1

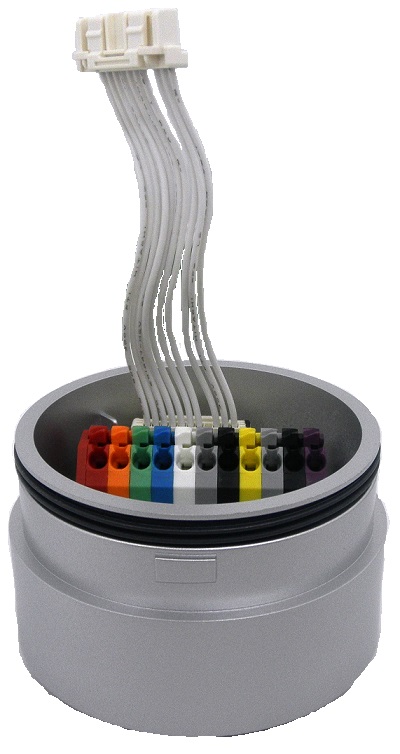

Terminal Block Bracket: Silver
B22202028-9F1 1
