Φ40mm LED Signal Tower Lights
LR4 Series

Discover the LR4 Series Φ40mm LED Signal Tower Lights, featuring ultra-bright LEDs, modular design, and diverse options to tackle the most demanding applications.

  • I/O Control
  • Signal Tower
  • Φ40
  • Continuous on
  • Flashing (Strobe)
  • Alarm
  • 85dB
  • Indoor
  • IP54
  • IP65
  • Red
  • Amber
  • Green
  • Blue
  • White

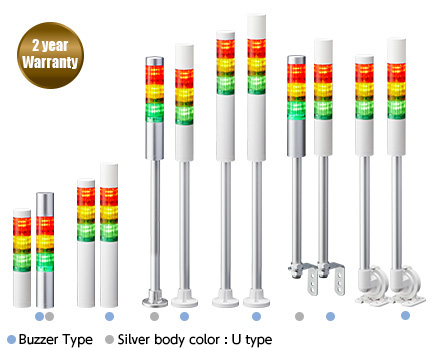

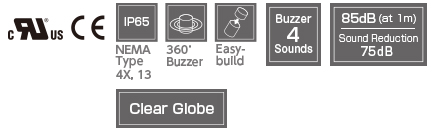

  • Φ40mm LED Signal Tower Lights LR4 Series
  • Re-designed lens and improved module construction delivering bright, even light for visibility from further distances.
  • Re-engineered, completely enclosed sound module, maintains substantial water and dust protection while producing loud, omni-directional sound. (LR5 DC12V: 80dB LR4 & LR5: 85dB, LR6: 88dB, LR7: 90dB at 1m)
  • A modular, “Twist and Lock”, design to easily customize and field configure LED units and sound modules.
  • A sleek, smooth form factor and a rugged body construction for performance in harsh environments, carrying an IP65 protection rating.
  • Four mounting options: Direct, pole with L-bracket, pole with circular bracket, and pole with folding bracket (Off-white only).
  • Available in DC24V and AC100-240V (Off-white only).
  • Available in Off-white and Silver bodies.
  • Available with Clear lens (special order).

Specifications

Operating Ambient Temperature -20℃ - +50℃
Operating Humidity Range 90% RH or less, no condensation
Storage Temperature Range -30℃ - +60℃
Storage Humidity Range 90% RH or less, no condensation
Mounting Location Indoor Use
Mounting Direction Upright Position
Protection Rating*1 IP65(IEC 60529) / NEMA TYPE 4X, 13
Environmental Conditions Upright Position
Insulation Resistance More than 1MΩ at DC500V between the power input lead and chassis
Withstand Voltage AC 500V for 1 minute between terminals and chassis without breaking insulation (M2: AC1500V for 1 min.)
Flash Rate 60 ±2 Flashes / min.
Sound Level LR4 Typ. 85dB
Sound Reduction*2 Approx. -10dB reduction
Environmental Conditions Buzzer Sound No.4 (Sweep) from all directions at 1m distance
Buzzer Sound 4 patterns*2
No.1 Rapid intermitten beep / 3378Hz
No.2 Continuous beep sound / 3378Hz
No.3 Rapid Hi-Lo / 2016Hz&3012Hz
No.4 Sweep sound / 1000Hz-4032Hz
Transistor Output NPN / PNP (AC100 - 240V is NPN only)
Conformity Standards ●UL 508, CSA-C22.2 No.14
●FCC Part 15 Subpart B Class A
●RoHS Directive (EN IEC 63000)
●EMC Directive (EN 61000-6-4, EN 61000-6-2)
●KC (KN 61000-6-4, KN 61000-6-2)*3
●Low-voltage Directive (IEC/EN 60947-5-1, EN62471)*4

*1: LJ Type is IP54
*2: Dependent on DIP Switch Settings
*3: Except KT, Assembly Model WT and M2 LJ type
*4: M2 Type Only (Except LJ Type)



LED Unit Specifications

Color Red Amber Green Blue White
Signal Wire Current (Per Unit) /
Rated Power Consumption (Per Unit)
Typ. 40mA / 1W
Max. 45mA / 1.3W



Buzzer Unit Specifications

Signal Wire Current (Buzzer Unit) /
Rated Power Consumption (Buzzer Unit)
Typ. 40mA / 1W
Max. 250mA / 1.3W

(*) The download service of the data on this site is deemed to have agreed to the following "".

(*) The download service of the data on this site is deemed to have agreed to the following "".

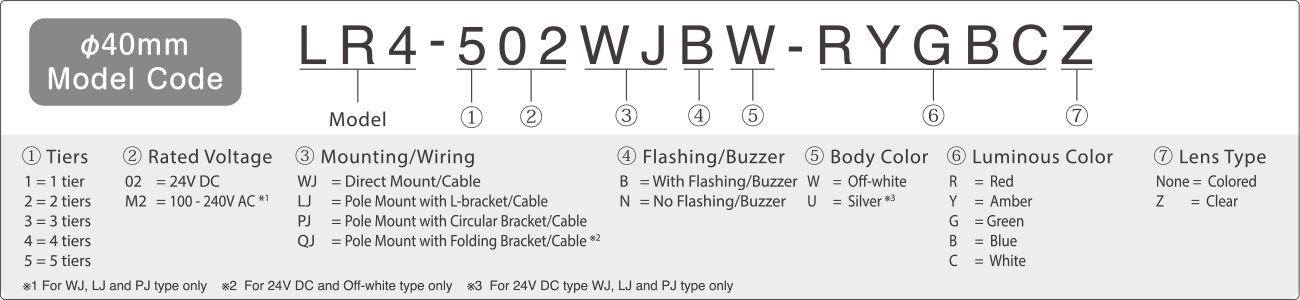

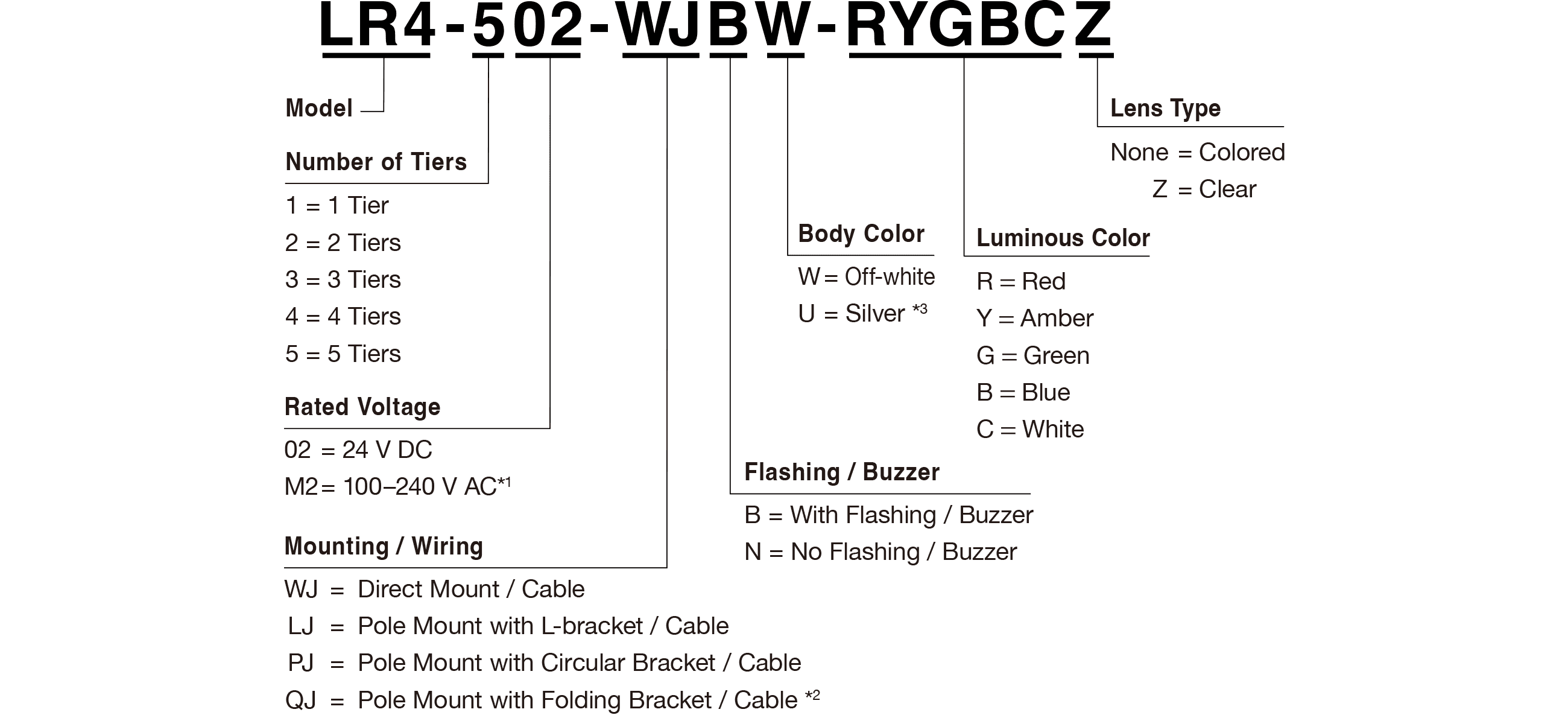

LR4  

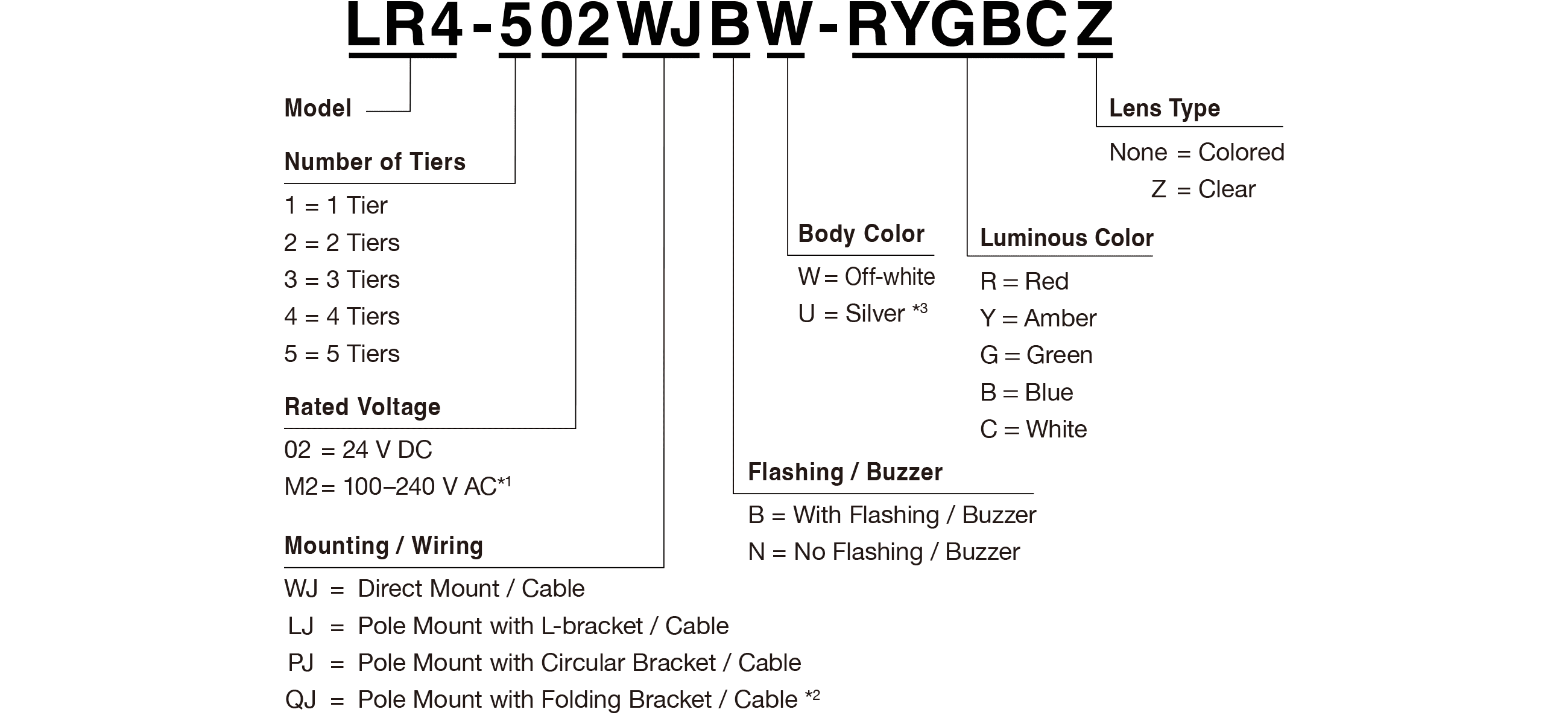

LR4  

Replacement Parts

Category No. Part Name Part Number Required Qty Specification Approximate time of replacement

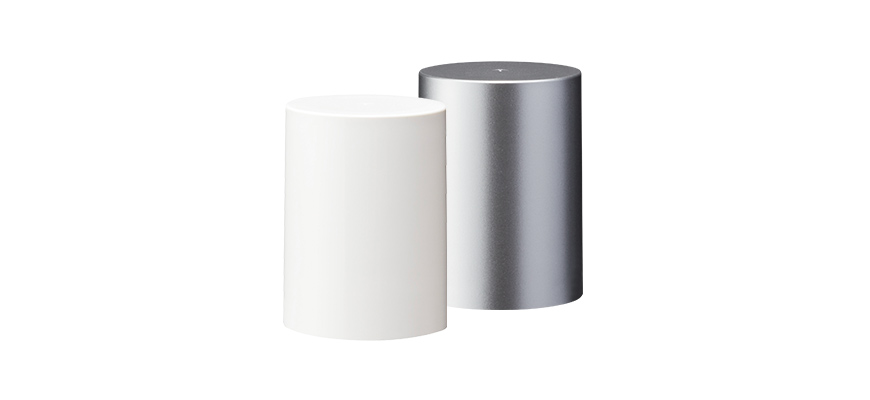

Headcover: LR4
B32310070-7F1 1

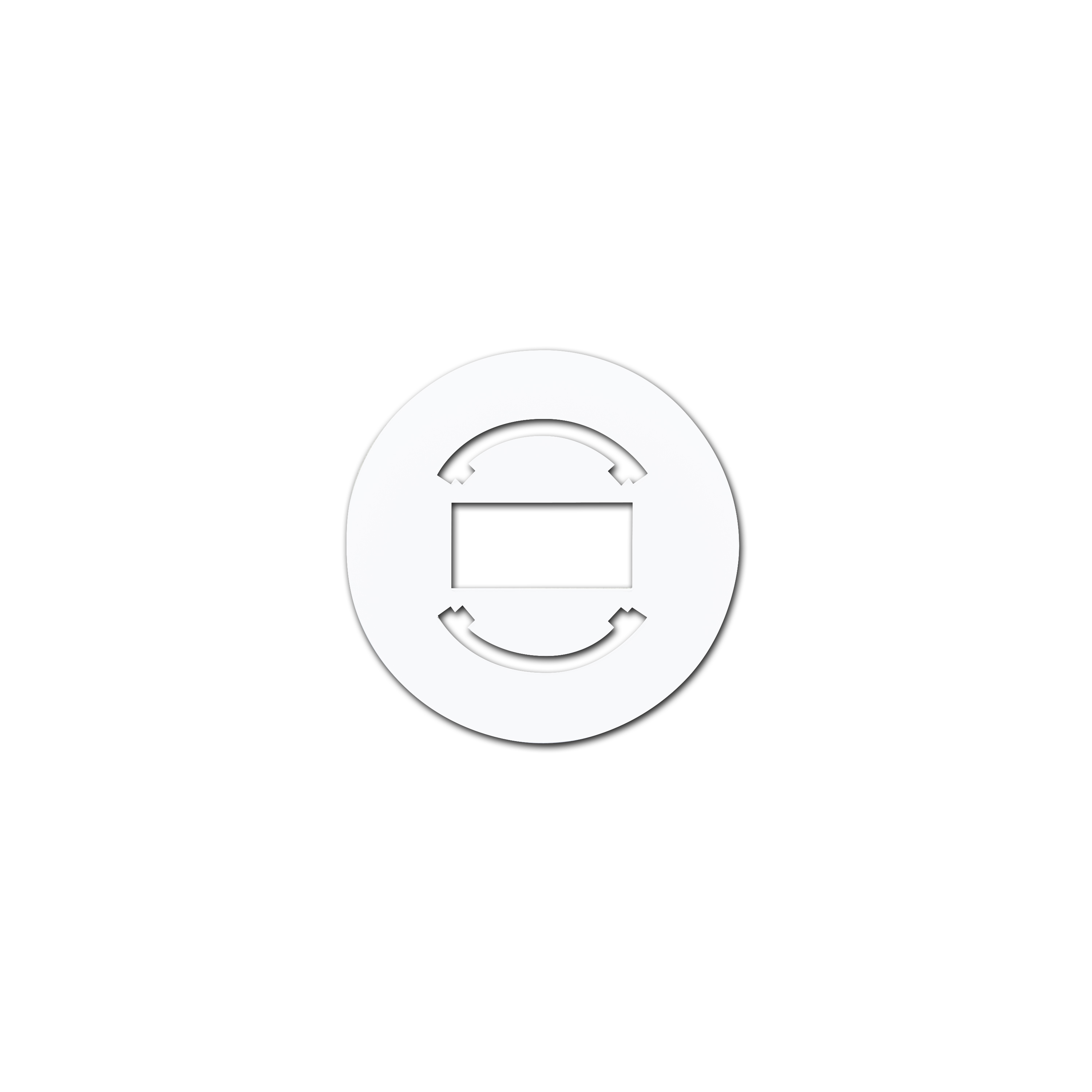

Filter Sheet: LR4 (5 pieces)
B25310067-4F1 1-5: Depends on the number of tiers.

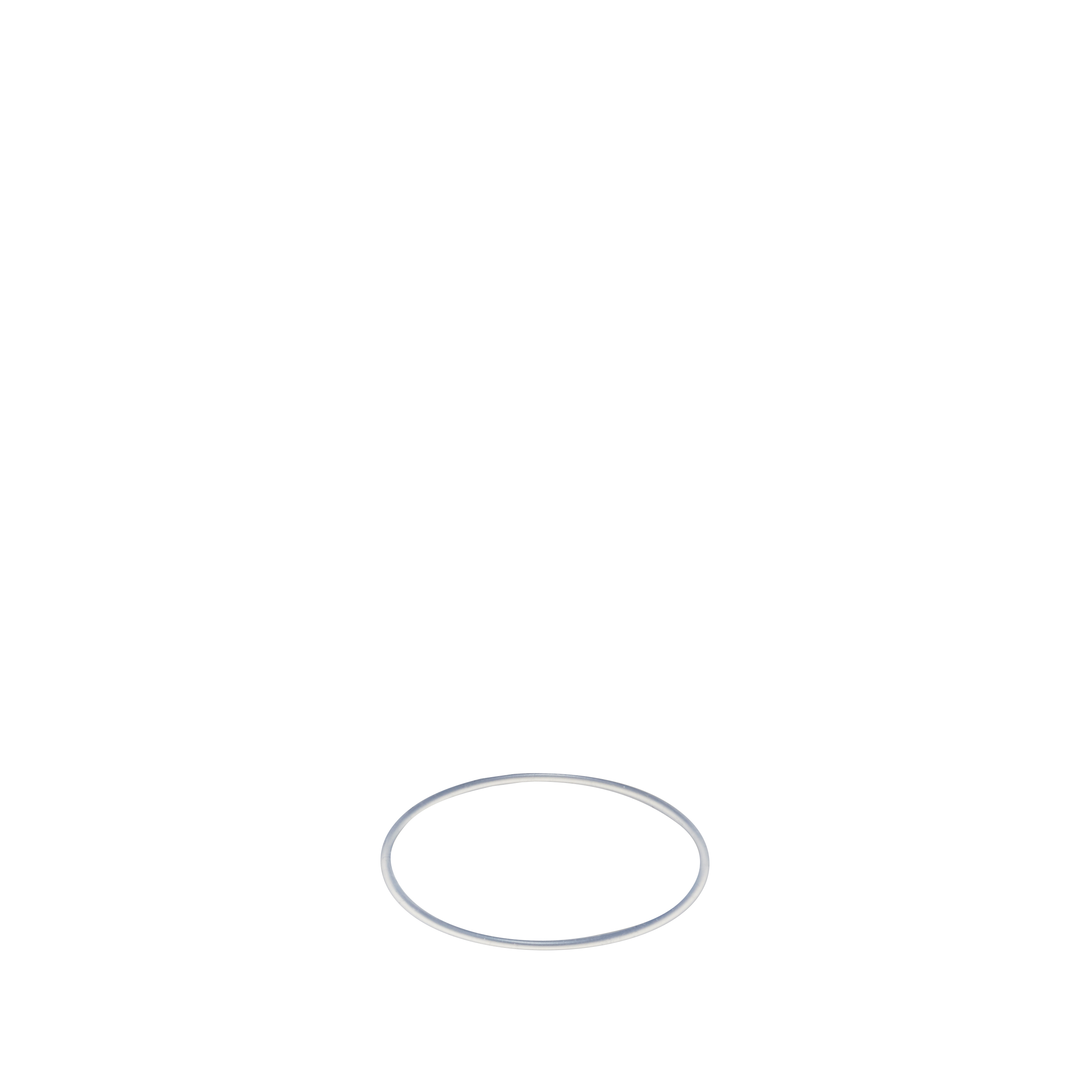

O-ring: LR4 (5 pieces)
B25110065-F1 2-7: Depends on the number of tiers.
LR4 Pole Bracket
B22210159-7F1 1
Waterproof Ring
B25110047-F1 1
Hexagonal Nut: M22
S33533110-222F1 2
Flat washer: M22
S33642010-222F1 2
