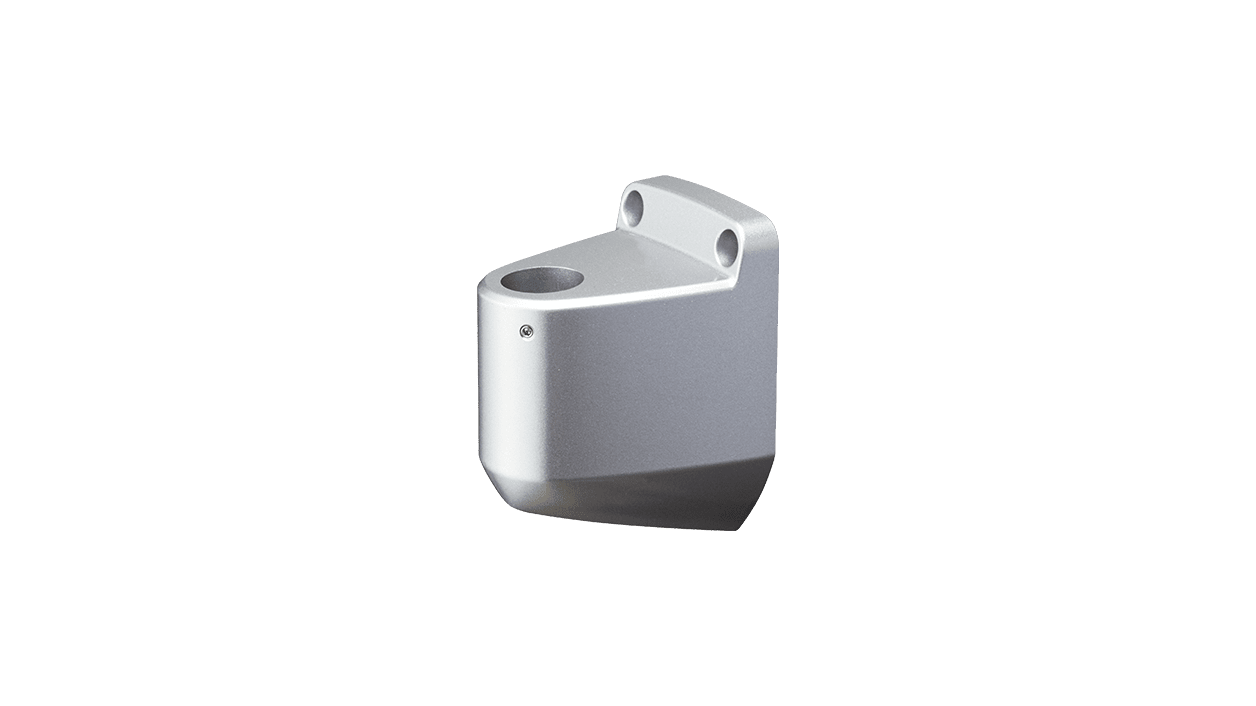

Wall Mounting Bracket
SZK-001U
Wall Mounting Bracket
Wall Mount Bracket for all LR series
NetShopURL

Product Features

■ Compatible Models:
LR4-LJ/PJ/QJ
LR5-LJ/PJ/KT
LR6-LJ/PJ/QJ
LR7-KT
■ Compatible Poles:
POLE22-0100AN
POLE22-0300AN
POLE22-0500AN
POLE22-0800AN
POLE22-1000AN
POLE22-0100AT
POLE22-0300AT
POLE22-0500AT
POLE22-0800AT
POLE22-1000AT

Available in Silver

IP 20
Material: SPHC-P
Mass: 190g

Includes
●Hexagon Socket Set Screw (2pcs.)



Specifications

ModelSZK-001U
Mounting LocationIndoor Only
Protection RatingIP20(with product attached)
Mass(Tolerance±10%)
※Accessories not included
190g
AccessoriesHexagon Socket Set Screw(2pcs.)
RemarksThere are no contents of controlled substances exceeding the threshold for the RoHS Directive.
