Ethernet Programmable LED Signal Tower with PoE
LA6-POE

Programmable Multi-color Signal Tower, 60mm LED Signal Tower with Power over Ethernet (PoE) support.

  • Network Products
  • Ethernet
  • Digital IO
  • LAN
  • Signal Tower
  • Φ60
  • Continuous on
  • Flashing (Strobe)
  • Alarm
  • 85dB or more
  • Indoor
  • IP54
  • Multi-color
  • Ethernet Programmable LED Signal Tower with PoE LA6-POE
  • Ethernet connection with PoE (Power over Ethernet) support, enabling single cable installation
  • Supports Modbus TCP/IP and HTTP protocols to work seamlessly with your existing infrastructure
  • Built-in web interface for quick and easy setup and configuration
  • Includes 21 programmable LED colors and 11 selectable alarms for unambiguous indication
  • Features a mirroring function for replicating the visual and audible statuses from a master LA6-POE on up to 8 remote slave LA6-POE
  • Built-in terminal block as an alternative control method

Model Specifications

DIMENSIONS - 60mm Diameter
OPERATING VOLTAGES - 24V DC
- Power over Ethernet (PoE): 48V DC
Controls - Wire inputs (4 digital inputs)
- Network commands
- HTTP
- Modbus TCP
- Socket (PNS, PHN - PATLITE developed protocols)

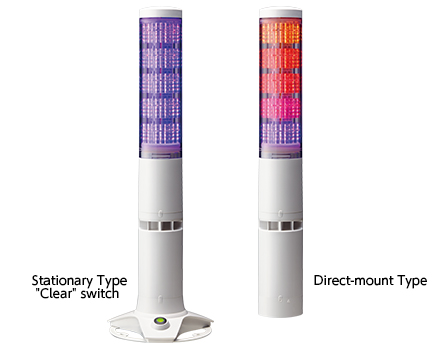

BODY STYLE TN: Direct Mount Type
SN: Stationary Type
BODY COLOR - Off-white
- Silver (America only)
STACKABLE TIERS - 5 Module
MODULE COLORS 21 colors
AUDIBLE STYLE - 11 Alarm sounds available
Volume - Max 85dBVolume
- Adjustable up to Max 85dB
CONFORMITY STANDARDS - EMC Directive
- RoHS Directive
- UL 508
- FCC
- KC
PROTECTION RATING - IP54 (IEC 60529)

(*) The download service of the data on this site is deemed to have agreed to the following "".

(*) The download service of the data on this site is deemed to have agreed to the following "".

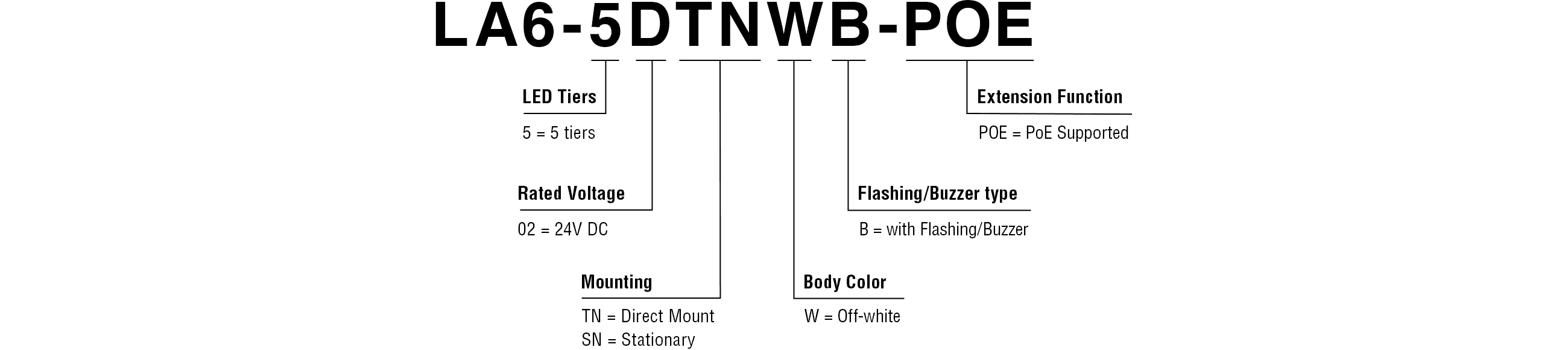

LA6-5DTNWB-POE (Direct-mount type)  

LA6-5DTNWB-POE (Direct-mount type)  

Replacement Parts

Category No. Part Name Part Number Required Qty Specification Approximate time of replacement

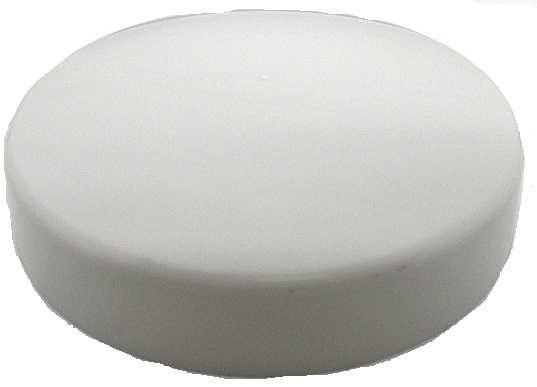

Headcover: Off-white
B31310001-7F1 1

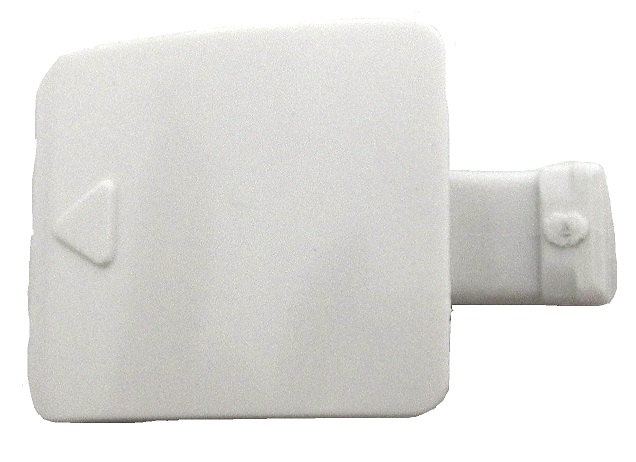

USB Cover: Off-white
B22100071-7F1 1

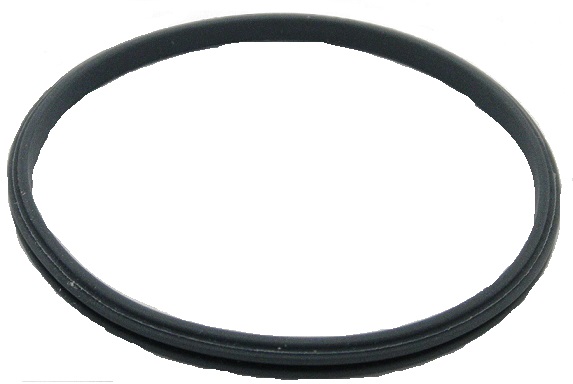

Waterproof Packing (2 pieces)
B25110042-F1 1

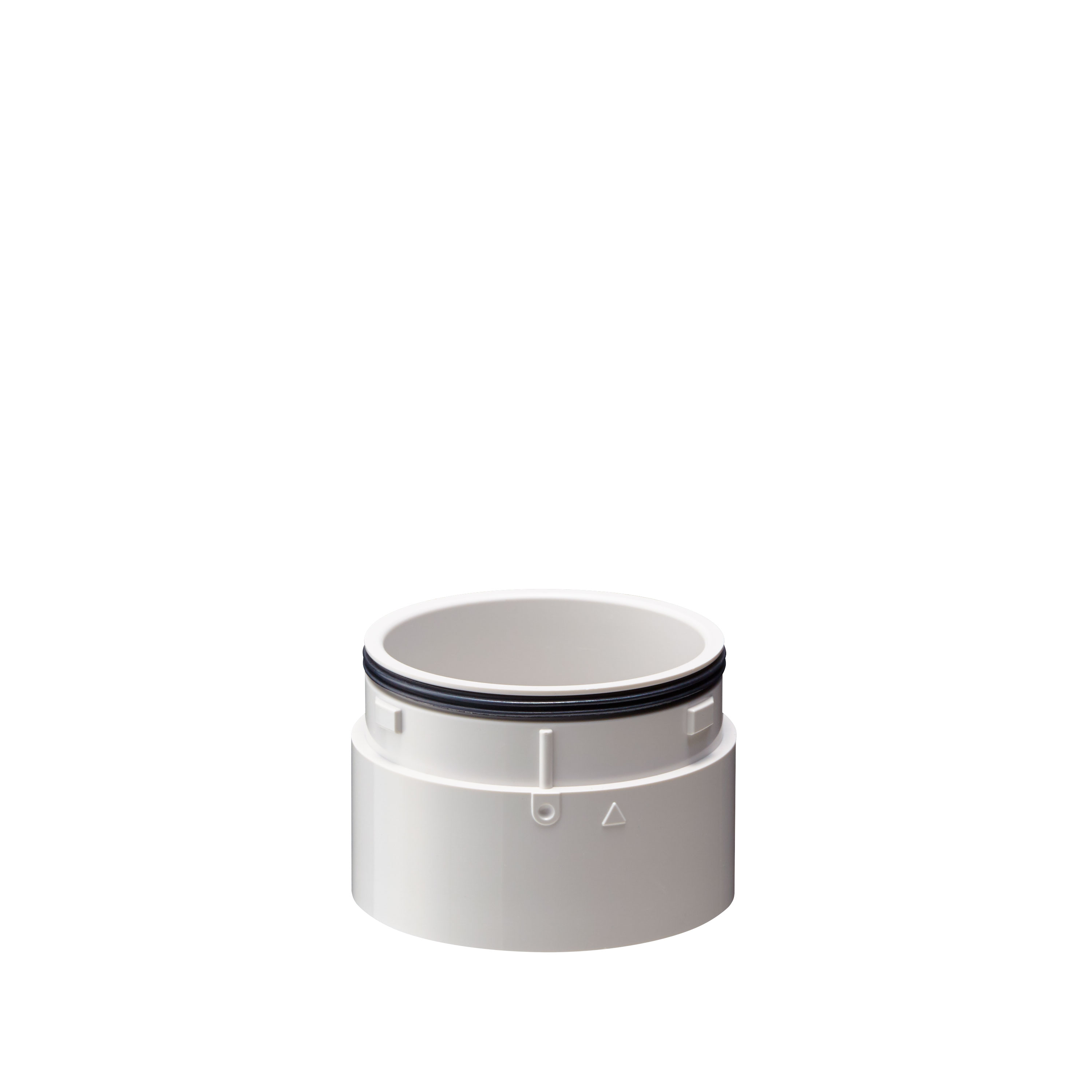

LAN Bracket Assembly
B22100082-F1 1

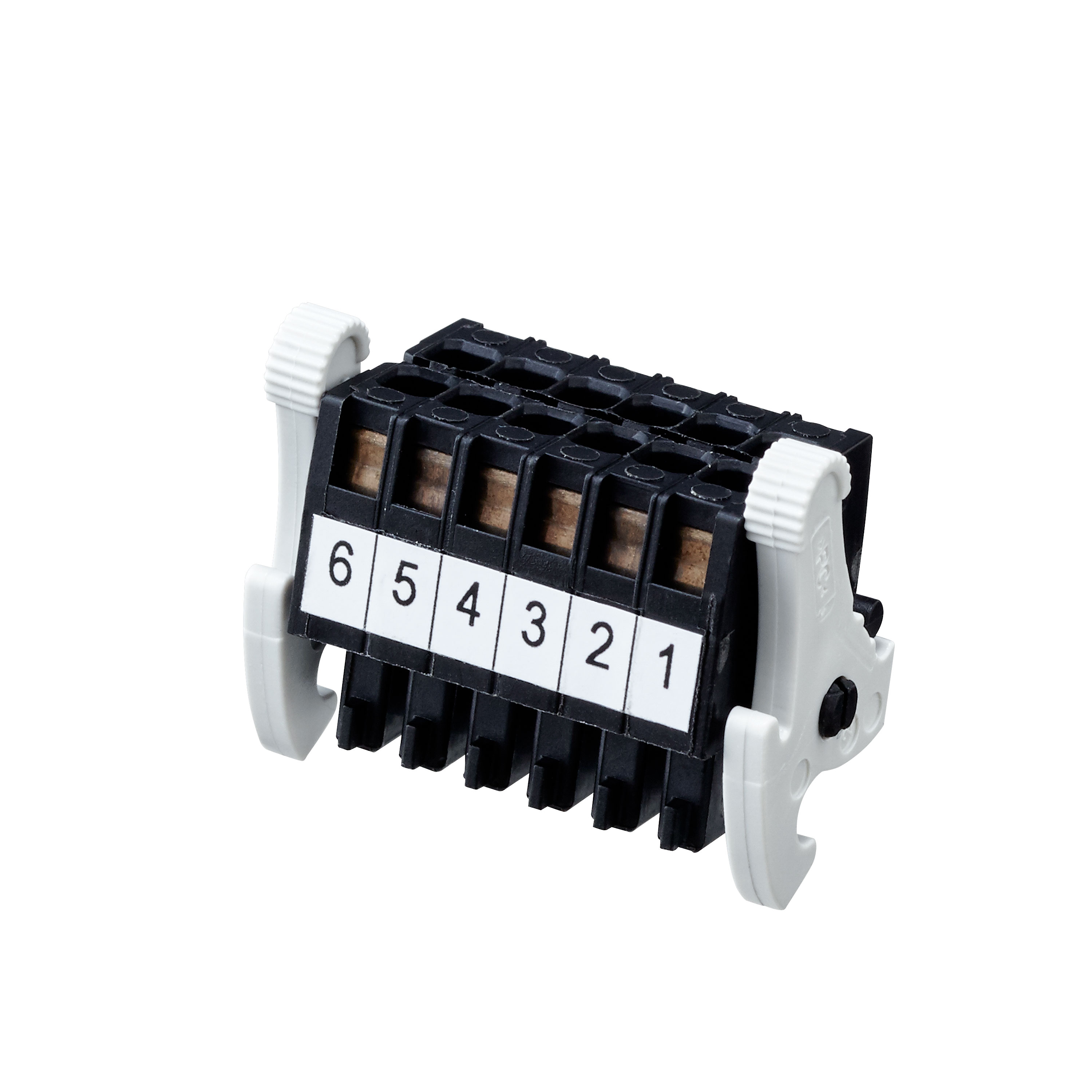

Terminal Block Connector
Z69544323-F1 1
LA6-5DSNWB-POE (Stationary Type)  

LA6-5DSNWB-POE (Stationary Type)  

Replacement Parts

Category No. Part Name Part Number Required Qty Specification Approximate time of replacement
Headcover: Off-white
B31310001-7F1 1
USB Cover: Off-white
B22100071-7F1 1
Waterproof Packing (2 pieces)
B25110042-F1 1

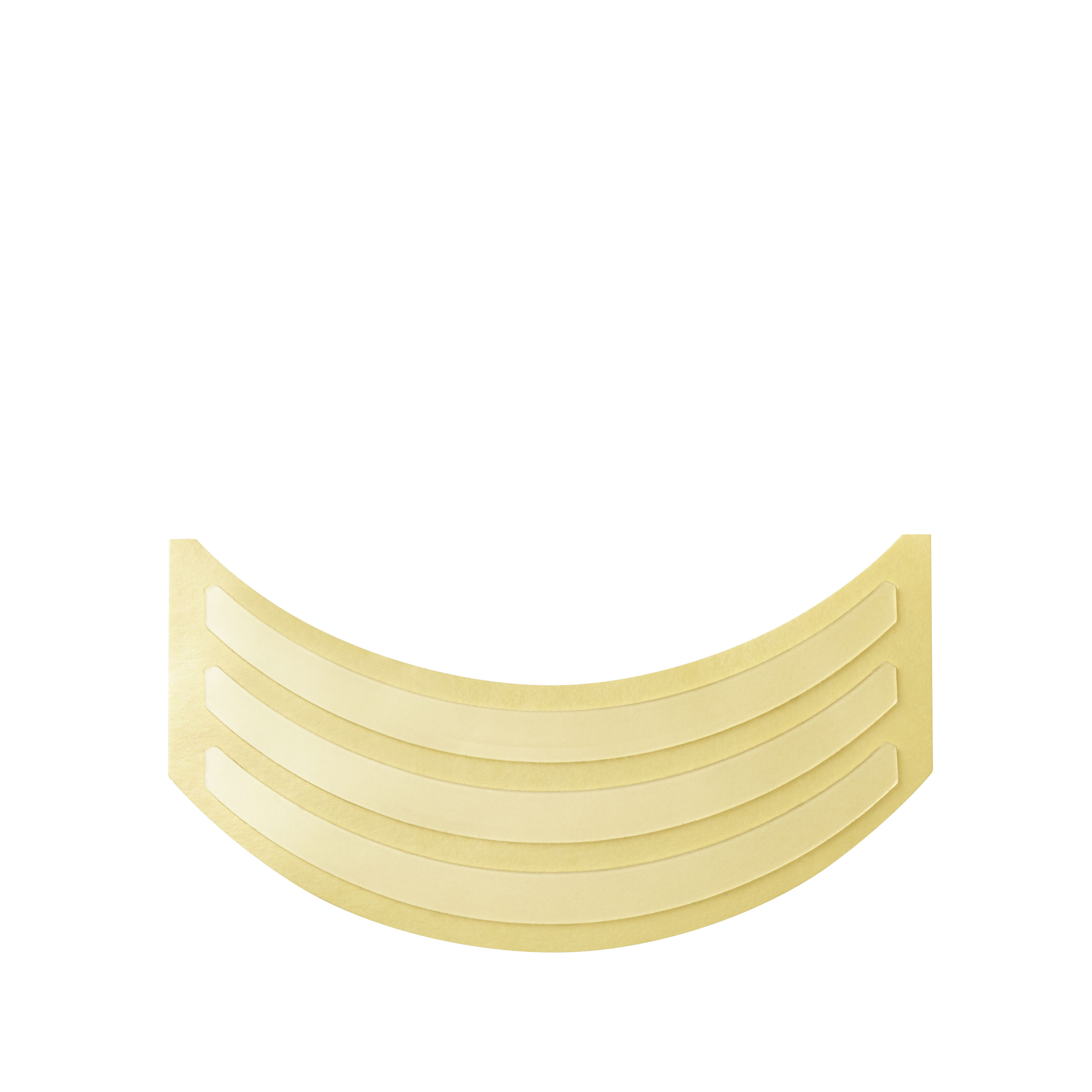

Rubber Sheet (3 sheets)
B25210060-F1 3
Terminal Block Connector
Z69544323-F1 1
