37.5mm Profile
WE
37.5mm Profile

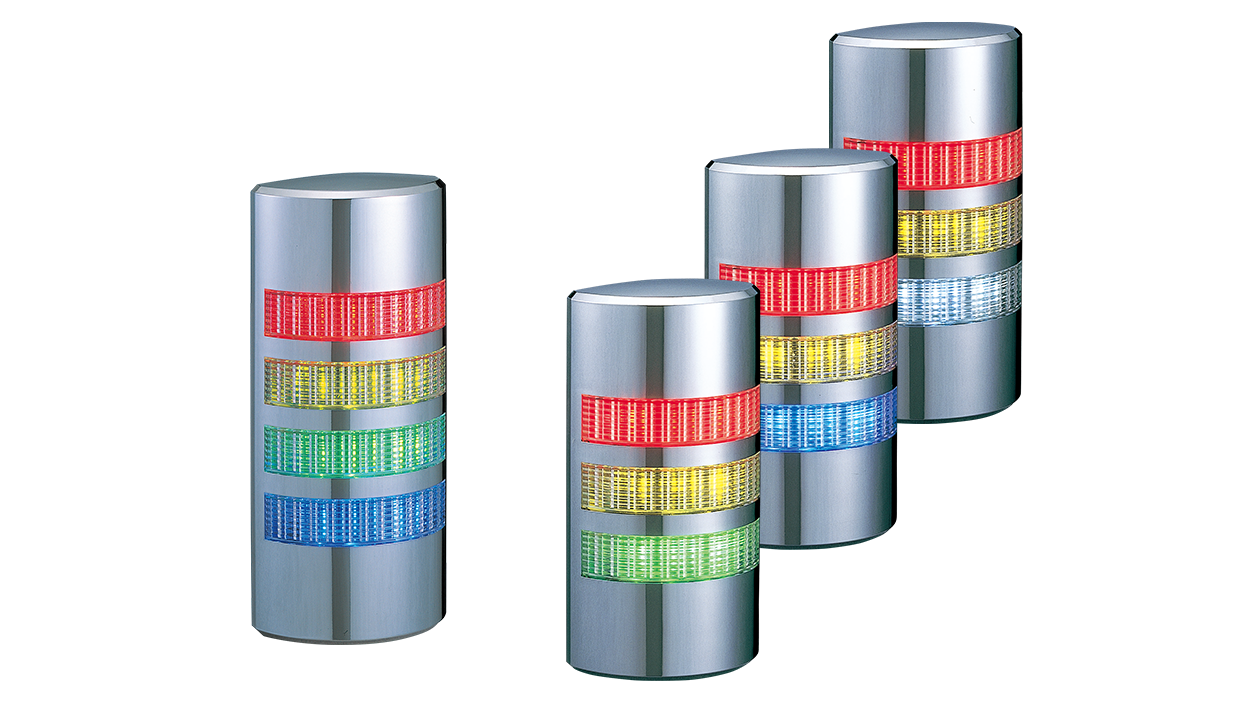

The WE Series is a chrome-plated, slim-styled body "half-moon" signal tower to integrate seamlessly with equipment.
NetShopURL

Product Features

路 Clear Vertical Cut Lens: For enhanced illumination over a wide perspective.
路 FB type: Built-in audible alarm with 90dB at 1m.
路 Installation: Vertical and horizontal.
路 Body Color: Chrome plated
路 Lens: Superior impact and heat resistant polycarbonate resin for superior durability and light transmission.
路 NPN/PNP Compatible: Direct connection to PLC (24V DC ONLY)
路 Lighting Pattern: Flashing and Continuous.
路 Dust-proof and waterproof IP65 (except for FB type: IP54).
路 Available Colors: Red, Amber, Green, Blue, Clear/White.

Model Specifications

DIMENSIONS - 37.5mm profile
RATED VOLTAGE - 24V AC/DC
FUNCTIONS - Continuous Only
- Continuous, Alarms
MOUNTING - Wall Mount
BODY STYLE - Pre-assembled, pre-wired
BODY COLOR - Body: Chrome Plated
STACKABLE TIERS - Available from 3 to 5 tier versions
MODULE COLORS - Red
- Amber
- Green
- Blue
- Clear
AUDIBLE STYLE - Alarm 1: Selectable, single-tone, intermittent (fast beep) alarm; 90dB (at 1m)
- Alarm 2: Selectable, single tone, intermittent (slow beep) alarm; 90dB (at 1m)
CONFORMITY STANDARDS - UL Listed (E215660)
PROTECTION RATING - IP65 (except for FB type: IP54)
