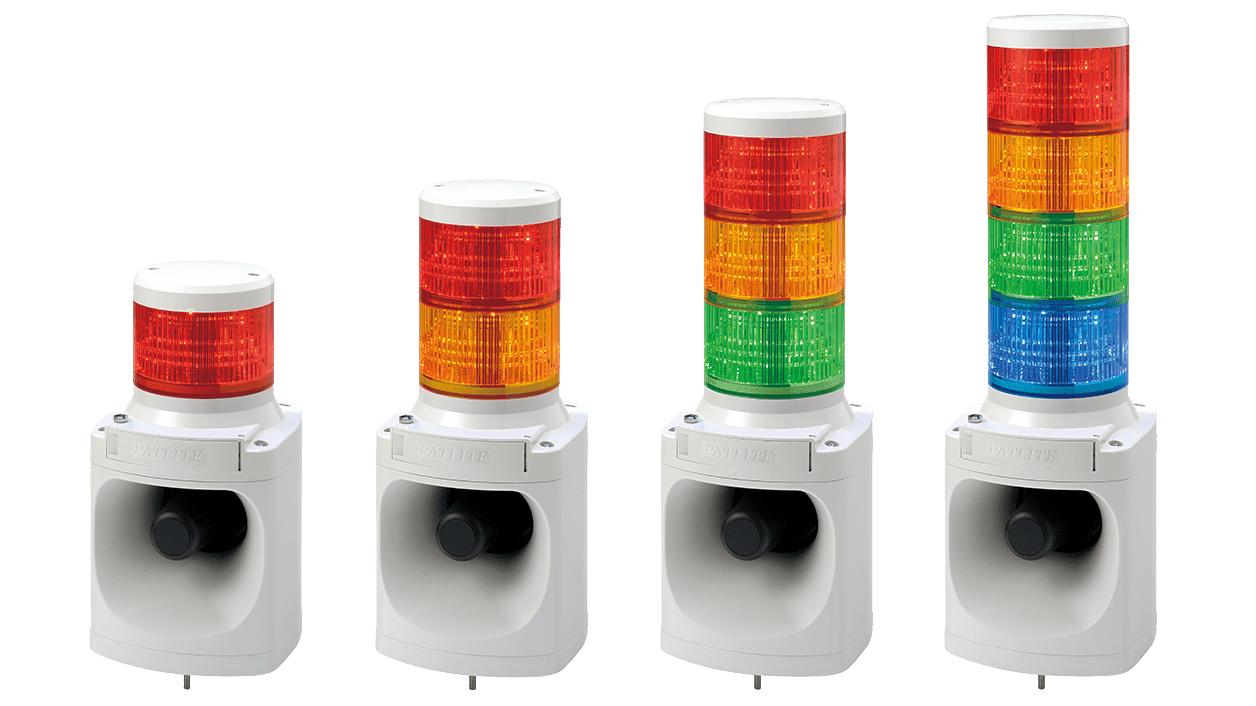

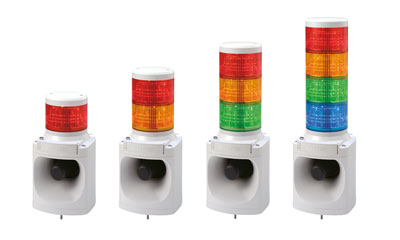

The LKEH series is a large horn and signal tower combination that supplies greater sound and capability.
• Visible from great distance with ultra bright LEDs and 100mm diameter lens.
• Safe for use at high vibration environment with robust 2G vibration resistant design.
• Easy to control with only one common wire for both LEDs and audible signals.
• CE, RoHS, IP53, (UL, c-UL pending).
• Field programmable with SD card. (Sold separately)
• Volume is adjustable from 0 to 105dB (at 1m) to fit various environments.
• Smooth LED lens surface.
※PATLITE Corporation has not applied for permission to use certain copyrighted music or songs recorded in LKEH-FA, FC and FD types outside of Japan. For additional information regarding this issue, please contact your local PATLITE sales representative.
|DIMENSIONS||- 100mm diameter|
|RATED VOLTAGE||- 24V DC
- 100V AC
- 220V AC
|AUDIBLE STYLE||- LKEH-FE available only
- Total of 32 pre-recorded sounds (See Specifications for sound list)
- Arrange in 8 selectable sound groups
- Each group has 4 pre-arranged sounds
|VOLUME||- Maximum 105dB at 1 meter with adjustable volume control|
|BODY STYLE||- Pre-assembled, pre-wired only for module colors specified, lens interchangeable after purchase|
|BODY COLOR||- Body: Beige|
|GLOBE COLORS||- Red
|GLOBE MATERIAL||- Polycarbonate Resin|
|PROTECTION RATING||- IP53|
