60mm LED Signal Tower Lights
LR6 Series

Discover the LR6 Series 60mm LED Signal Tower Lights featuring ultra-bright LEDs, modular design, smooth surface, and a variety of options for challenging applications.

  • I/O Control
  • Signal Tower
  • Φ60
  • Continuous on
  • Flashing (Strobe)
  • Alarm
  • 88dB
  • Indoor
  • IP54
  • IP65
  • Red
  • Amber
  • Green
  • Blue
  • White

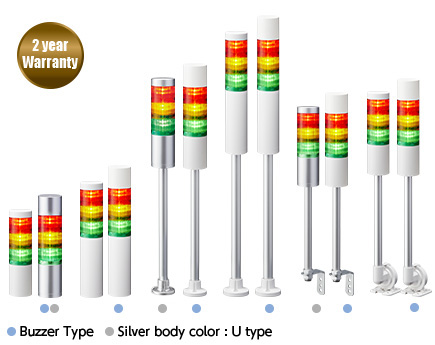

  • 60mm LED Signal Tower Lights LR6 Series
  • Re-designed lens and improved module construction delivering bright, even light for visibility from further distances.
  • Re-engineered, completely enclosed sound module, maintains substantial water and dust protection while producing loud, omni-directional sound. (LR5 DC12V: 80dB LR4 & LR5: 85dB, LR6: 88dB, LR7: 90dB at 1m)
  • A modular, “Twist and Lock”, design to easily customize and field configure LED units and sound modules.
  • A sleek, smooth form factor and a rugged body construction for performance in harsh environments, carrying an IP65 protection rating.
  • Multi-color LED module available (7 colors in one: red, amber, green, blue, light blue, purple, and white). Part Number: LR6-E-MZ.
  • Four mounting options: Direct, pole with L-bracket, pole with circular bracket, and pole with folding bracket (Off-white only)
  • Available with M12 connector, ½”NPT or 30mm through-hole mounting option (LR6-WC type).
  • Available in DC24V and AC100-240V (Off-white only)
  • Available in Off-white and Silver bodies
  • Available with Clear lens (special order)



Specifications

Operating Ambient Temperature -20℃ - +50℃
Operating Humidity Range 90% RH or less, no condensation
Storage Temperature Range -30℃ - +60℃
Storage Humidity Range 90% RH or less, no condensation
Mounting Location Indoor Use
Mounting Direction Upright Position
Protection Rating*1 IP65(IEC 60529) / NEMA TYPE 4X, 13
Environmental Conditions Upright Position
Insulation Resistance More than 1MΩ at DC500V between the power input lead and chassis
Withstand Voltage AC 500V for 1 minute between terminals and chassis without breaking insulation (M2: AC1500V for 1 min.)
Flash Rate 60 ±2 Flashes / min.
Sound Level LR6 Typ. 88dB
Sound Reduction*2 Approx. -10dB reduction
Environmental Conditions Buzzer Sound No.4 (Sweep) from all directions at 1m distance
Buzzer Sound 4 patterns*2
No.1 Rapid intermittent beep / 3378Hz
No.2 Continuous beep sound / 3378Hz
No.3 Rapid Hi-Lo / 2016Hz&3012Hz
No.4 Sweep sound / 1000Hz-4032Hz
Transistor Output NPN / PNP (AC100 - 240V is NPN only)
Conformity Standards ●UL 508, CSA-C22.2 No.14
●FCC Part 15 Subpart B Class A
●RoHS Directive (EN IEC 63000)
●EMC Directive (EN 61000-6-4, EN 61000-6-2)
●KC (KN 61000-6-4, KN 61000-6-2)*3
●Low-voltage Directive (IEC/EN 60947-5-1, EN62471)*4

*1: LJ Type is IP54   *2: Dependent on DIP Switch Settings   *3: Except KT, Assembly Model WT and M2 LJ type   *4: M2 Type Only (Except LJ Type)



LED Unit Specifications

Color Red Amber Green Blue White
Signal Wire Current (Per Unit) / Rated Power Consumption (Per Unit) Typ. 40mA / 1W
Max. 45mA / 1.3W



Buzzer Unit Specifications

Signal Wire Current (Buzzer Unit) / Rated Power Consumption (Buzzer Unit) Typ. 40mA / 1W
Max. 250mA / 1.3W

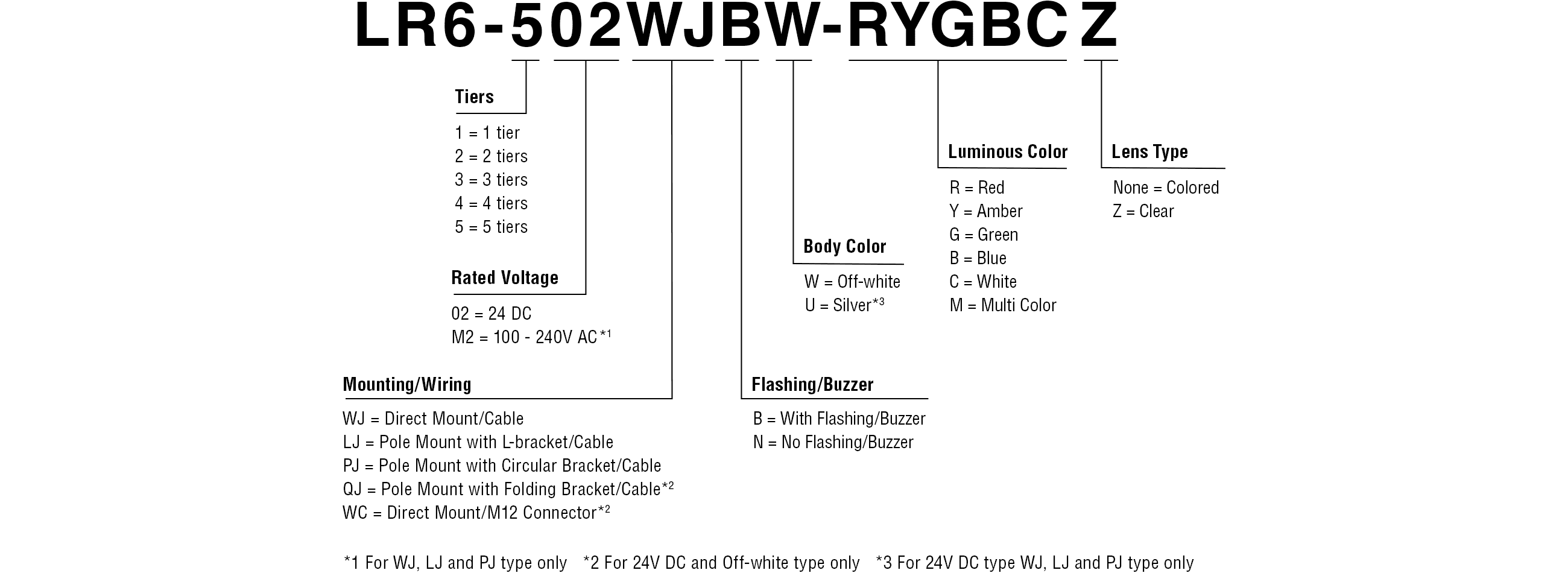

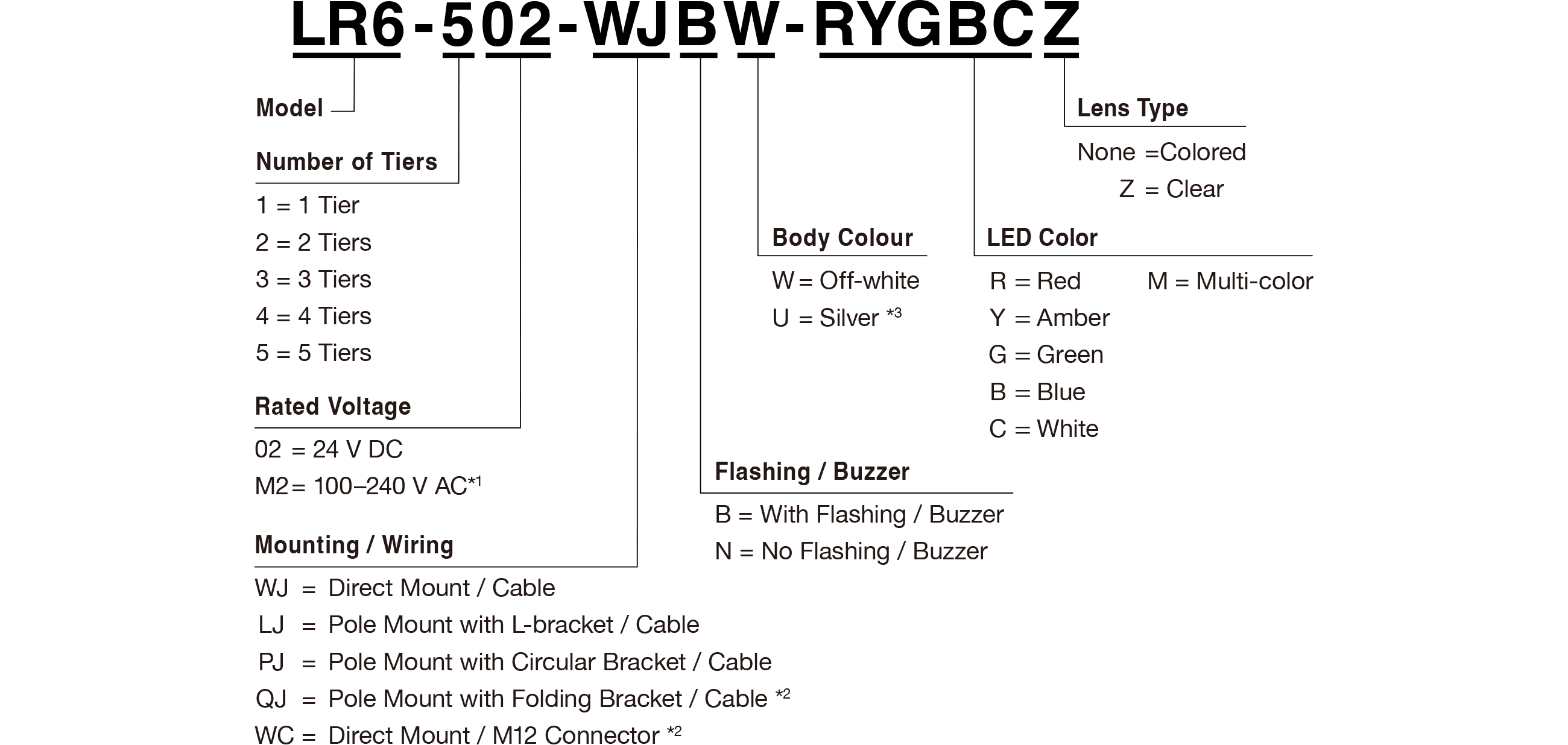

model code
