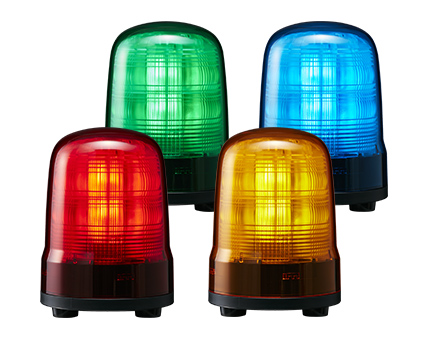

Multi-Function Beacons | SF Series
22 Light Patterns
| Rotary Switch |
Wiring | CH1 | CH2 | CH1 | CH2 | CH1 | CH2 | CH1 | CH2 |
| OFF | OFF | ON | OFF | OFF | ON | ON | ON | ||
| 0 | Off | Rotating (120rpm) | Triple-flash | Rotating (120rpm) | |||||
| 1 | Off | Rotating (180rpm) | Triple-flash | Rotating (180rpm) | |||||
| 2 | Off | Triple-flash | Pulse pattern | Triple-flash | |||||
| 3 | Off | Rotating (60rpm) | Rotating (120rpm) | Rotating (180rpm) | |||||
| 4 | Off | Single-flash | Double-flash | Triple-flash | |||||
| 5 | Triple-flash | Triple-flash | Triple-flash | Triple-flash | |||||
| 6 | Pulse pattern | Pulse pattern | Pulse pattern | Pulse pattern | |||||
| 7 | Rotating (60rpm) | Rotating (60rpm) | Rotating (60rpm) | Rotating (60rpm) | |||||
| 8 | Rotating (120rpm) | Rotating (120rpm) | Rotating (120rpm) | Rotating (120rpm) | |||||
| 9 | Rotating (180rpm) | Rotating (180rpm) | Rotating (180rpm) | Rotating (180rpm) | |||||
