Light Bar
CLA-A

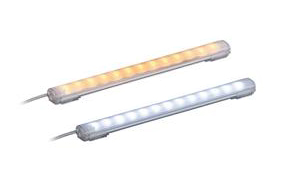

Light Bar
IP69K Conformity, Ultra-bright Uniform LED Illumination, six Different Sizes, Waterproof

Product Features

The CLA Series LED Light Bar produces bright, uniform lighting in an IP-69K enclosure for high-temperature washdown applications for food and pharmaceutical applications, as well as illumination for control panels and workstations. The 4 different mounting options and 6 different lengths from 100mm to 1200mm make this product and ideal consideration for fluorescent tube replacement as well.




Specifications

DIMENSIONSOverall dimensions without brackets
・ 124mm x 30mm x 19.5mm
・ 224mm x 30mm x 19.5mm
・ 324mm x 30mm x 19.5mm
・ 624mm x 30mm x 19.5mm
・ 924mm x 30mm x 19.5mm
・ 1224mm x 30mm x 19.5mm
RATED VOLTAGE24V DC
FUNCTIONSContinuous Only
MOUNTING・ Snap-in screw mounted bracket
・ Snap-in magnetic mounted bracket
・ Side mounted brackets
・ Indoor, any direction
BODY STYLE・ Polycarbonate housing
・ Pre-assembled, pre-wired
BODY COLORBody: Translucent-white
LIGHT SOURCE・ High-intensity LED chip, Daylight
・ High-intensity LEDchip, Amber (324mm sizes only)
・ Average Service Life (specified when brightness dereases to 70%) : 40,000 hours
LENS MATERIALTranslucent-white Polycarbonate Resin
CONFORMITY STANDARDS・ CE Marking
・ UL
・ RoHS
PROTECTION RATING・ IP66
・ IP67
・ IP69K
