WD Series Lineup

01

Optional Parts

Signal tower

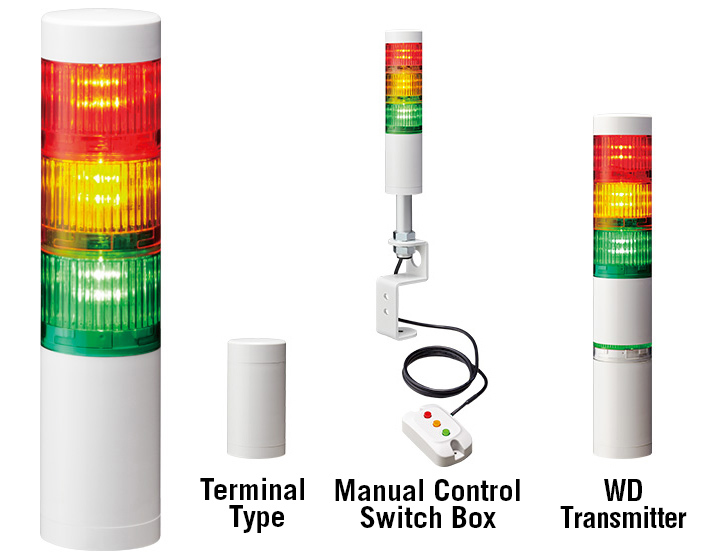

LR5 50mm

LR5
● Product Features
  • Φ50
  • Modular
  • 4 Alarm Sounds
  • 85dB at 1m
  • Open Collector
  • IP65
● Model Specifications
Rated Voltage:
DC12V, DC24V
Mounting Type:
Direct Mount ( WJ ), Pole Mount with Circular Bracket
( PJ ), Pole Mount with L-Bracket ( LJ )
Wiring:
Cable, Terminal block (24V DC only)
Product Material:
Polycarbonate Resin
LED Globe Color:
Colored Globe, Clear Globe
Wireless Data Acquisition:
Yes
Product Details

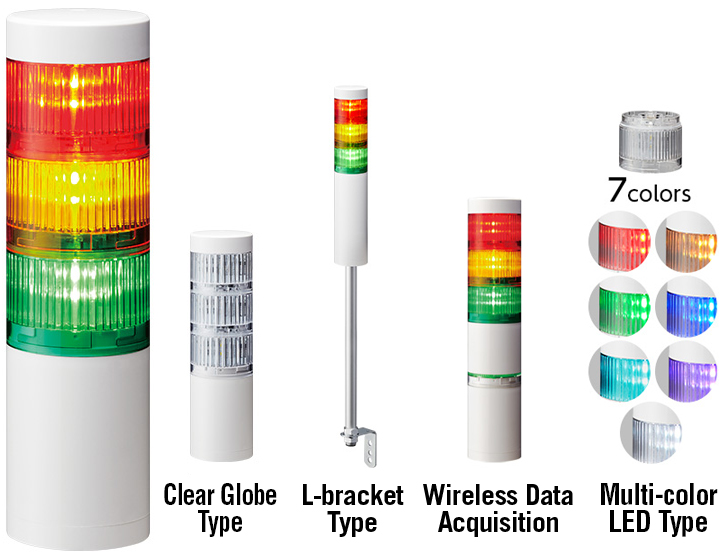

LR6 60mm

LR5
● Product Features
  • Φ60
  • Modular
  • 4 Alarm Sounds
  • 88dB at 1m
  • Open Collector
  • IP65
● Model Specifications
Rated Voltage:
DC24V, AC100-240V
Mounting Type:
Direct Mount ( WJ ), Pole Mount with Circular Bracket ( PJ ),
Pole Mount with L-Bracket ( LJ ), Folding Bracket ( QJ )(for DC24V only)
Wiring:
Cable, Terminal block (DC24V only)
Product Material:
Polycarbonate Resin
Lens Color:
Colored Globe, Clear Globe, Multi-color LED Unit
Wireless Data Acquisition:
Yes
Product Details

WDT-5LR-Z2, WDT-6LR-Z2 WD System Setup Kit

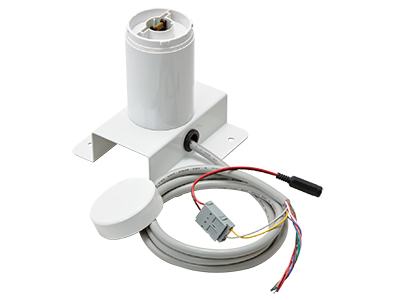

WDX-5LRB

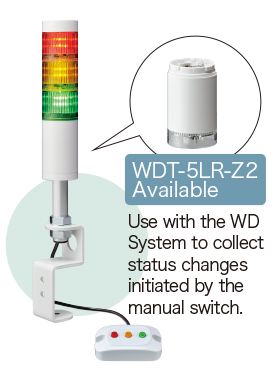

For WDT-5LR-Z2

01

※ AC adapter not included.

Product Details

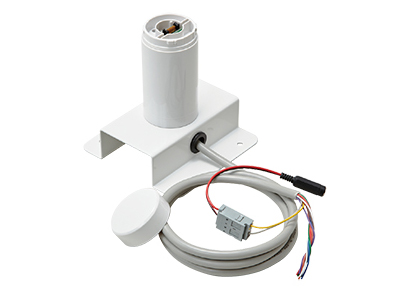

WDX-6LRB

For WDT-6LR-Z2

07

※ AC adapter not included.

Product Details

WDR-LE-Z2 adapter

ADP-001

08

● Compatible models
NH series、NBM-D88、PHE-3FB3、PHC-D08、
WDR、WDX-5LRB、WDX-6LRB
● Compatible regions
Japan, Europe, United States, China, Korea, Taiwan, Thailand, Indonesia, Canada, the Philippines and Vietnam

Product Details

Signal Tower with Switch Box

HSST-3M2-RYG
HSST-3M2N-RYG+FB278

09
10 11 12
Product Details

WD PRO Optional Parts

WDX-SC01

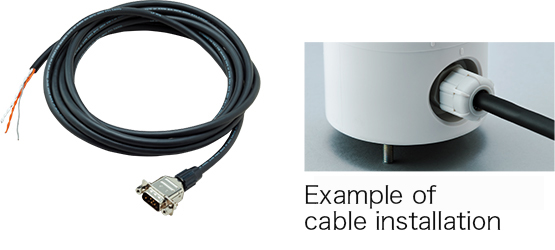

Serial Cable

13
Product Details

Signal Tower Optional Parts

Optional Parts

SZP-001W
Circular Multi-mount Bracket

SZP-001W
● Compatible models
LR4-PJ/QJ, LR5-PJ, LR6-PJ/QJ
● Compatible poles
POLE22-0100AN, POLE22-0300AN

Product Details

SZP-002U
Circular Bracket

SZP-002U
● Compatible models
LR4-PJ/QJ, LR5-PJ, LR6-PJ/QJ
● Compatible poles
POLE22-0100AN, POLE22-0300AN,
POLE22-0500AN, POLE22-0800AN, POLE22-1000AN
Product Details

SZP-003W/U/K
Circular Bracket

SZP-003W/U/K
● Compatible models
LR4-PJ/QJ, LR5-PJ, LR6-PJ/QJ
● Compatible Poles
POLE22-0100AN, POLE22-0300AN


* W = Off-white, U = Silver, K = Black

Product Details

SZ-016A
Pole Mounting Bracket

SZ-016A
● Compatible models
LR4-PJ/QJ, LR5-PJ, LR6-PJ/QJ
● Compatible Poles
POLE22-0100AN, POLE22-0300AN, POLE22-0500AN,
POLE22-0800AN, POLE22-1000AN

* W = Off-white, U = Silver, K = Black

Product Details

SZ-010
Pole Mounting Bracket

SZ-010
● Compatible models
LR4-PJ/QJ, LR5-PJ, LR6-PJ/QJ
● Compatible Poles
POLE22-0100AN, POLE22-0300AN, POLE22-0500AN,
POLE22-0800AN, POLE22-1000AN
POLE22-0100AT, POLE22-0300AT, POLE22-0500AT,
POLE22-0800AT, POLE22-1000AT
Product Details

SZW-001W
Circular Bracket

SZW-001W
● Compatible models
LR4-WJ, LR5-WJ/WT, LR6-WJ





Product Details

SZP-090U
1/2" NPT Pole Adapter

SZP-090U
● Compatible models
LR4-WJ, LR50WJ/WT
Product Details

SZP-091U
1/2" NPT Pole Adapter

SZP-091U
● Compatible models
LR6-WJ, LR7-WJ/WT
Product Details

SZK-001U
Wall-mount Bracket

SZK-001U
● Compatible models
LR4-PJ/QJ, LR5-PJ, LR6-PJ/QJ
● Compatible Poles
POLE22-0100AN, POLE22-0300AN, POLE22-0500AN,
POLE22-0800AN, POLE22-1000AN
POLE22-0100AT, POLE22-0300AT, POLE22-0500AT,
POLE22-0800AT, POLE22-1000AT
Product Details

SZ-020
Wall-mount Bracket

SZ-020
● Compatible models
LR4-PJ/QJ, LR5-PJ, LR6-PJ/QJ
● Compatible Poles
POLE22-0100AN, POLE22-0300AN,
POLE22-0100AT, POLE22-0300AT


Product Details

SZK-002W/U/K
Wall-mount Bracket

SZK-002W/U/K
● Compatible models
LR4-WJ, LR50WJ/WT

* W = Off-white, U = Silver, K = Black

Product Details

SZK-003W/U/K
Wall-mount Bracket

SZK-003W/U/K
● Compatible models
LR6-WJ, LR7-WJ/WT

* W = Off-white, U = Silver, K = Black

Product Details

SZK-004W
Wall-mount Bracket

SZK-004W
● Compatible models
LR6-WJ, LR7-WJ/WT


Product Details

SZQ-001W
Angle Bracket

SZQ-001W
● Compatible models
LR4-PJ/QJ, LR5-PJ, LR6-PJ/QJ
● Compatible Poles
POLE22-0100AN, POLE22-0300AN
Product Details

SZL-001
L-Bracket

SZL-001
● Compatible models
LR4-LJ, LR5-LJ, LR6-LJ
● Compatible Poles
POLE22-0100AT, POLE22-0300AT, POLE22-0500AT,
POLE22-0800AT, POLE22-1000AT
Product Details

SZ-904
3/4" NPT Pole Adapter

SZ-904
● Compatible models
LR4-LJ, LR5-LJ, LR6-LJ
● Compatible Poles
POLE22-0100AT, POLE22-0300AT, POLE22-0500AT,
POLE22-0800AT, POLE22-1000AT
Product Details

POLE22-AT
Threaded Pole

POLE22-T
● Compatible models
LR4-PJ/QJ/LJ, LR5-PJ/LJ/KT, LR6-PJ/QJ/LJ
● Compatible Bracket
SZL-001
Product Details

POLE22-AN
Non-threaded Pole

POLE22-N
● Compatible models
LR4-PJ/QJ/LJ, LR5-PJ/LJ, LR6-PJ/QJ/LJ
● Compatible Brackets

　 SZP-001W SZP-002U SZP-003W SZQ-001W SZK-001U
POLE22-0100AN Y Y Y Y Y
POLE22-0300AN Y Y Y Y Y
POLE22-0500AN N Y N N Y
POLE22-0800AN N Y N N Y
POLE22-1000AN N Y N N Y
Product Details
