Transmitter

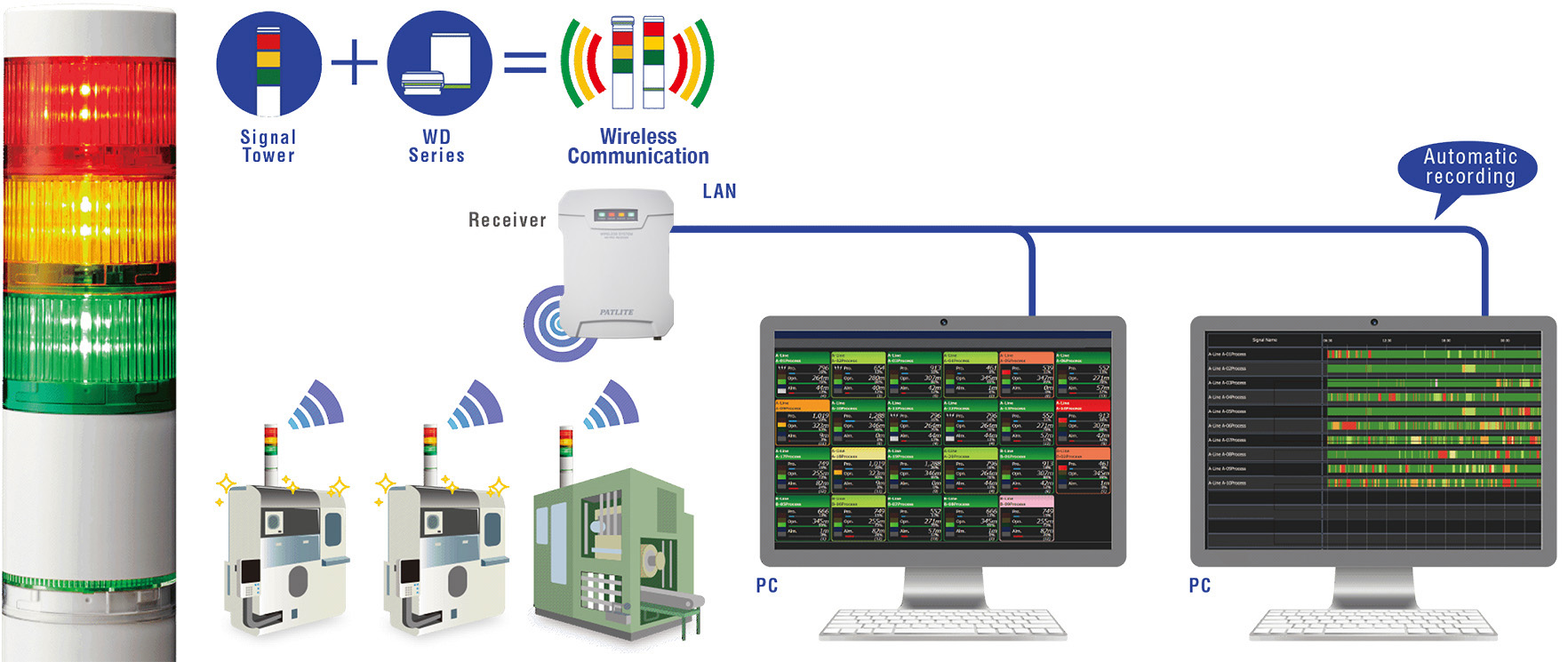

WD series

WD-Z2 transmitter

This transmitter can be installed in the Signal Tower LE series and LME series,
which have been sold for 20 years since 1998.

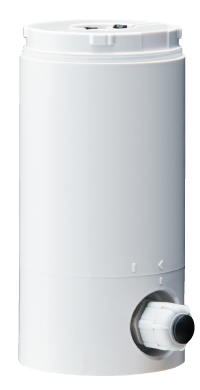

Signal Tower LME Type Dedicated Transmitter

WDT-6M-Z2

Applicable Signal Tower model : LME series*1

Current consumption : typ.20mA

Line-of-sight radio range : 20m*2

Product Details

Signal Tower LE Type Dedicated Transmitter

WDT-5E-Z2

Applicable Signal Tower model : LE series※1

Current consumption : typ.20mA

Line-of-sight radio range : 20m※2

Product Details

※1 There are some restrictions on applicable Signal Towers. Contact CKD for details.
※2 Due to the characteristics of radio waves, numerical values are for reference only.

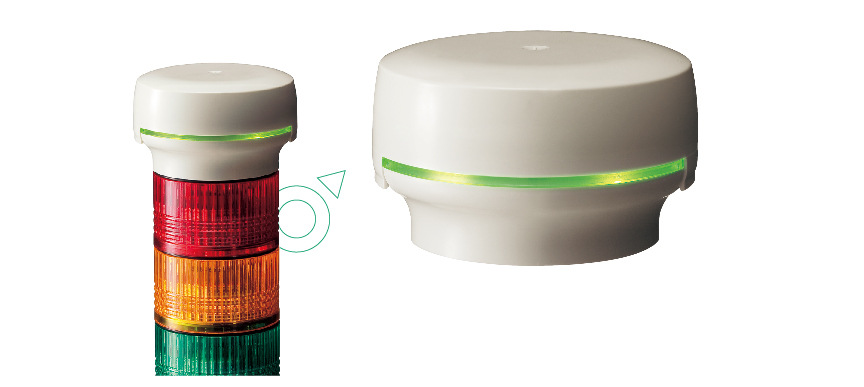

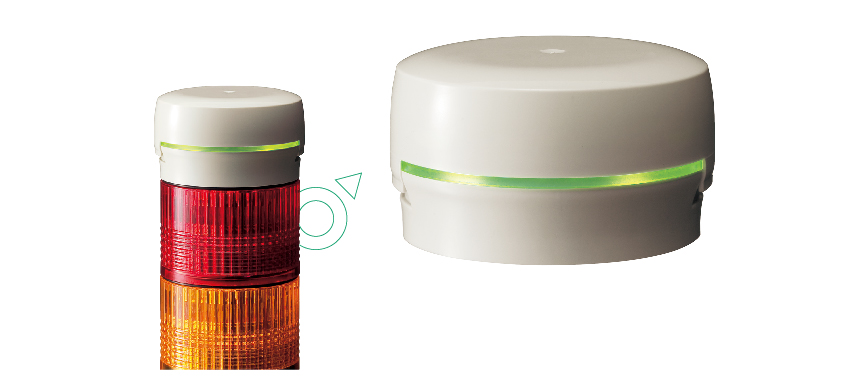

Remote Controller Installation

"Attach the transmitter bracket part A to the signal lamp and fix it with the signal lamp center screw, Simple mounting by simply assembling the top cover B ."
(To supply power to the transmitter, it is necessary to change the wiring of a part so that a single signal line can be connected at all times.)

WD-LR-Z2 transmitter

This transmitter can be installed in the Signal Tower LR series launched in October 2016.

Signal Tower LR6 type dedicated transmitter

WDT-6LR-Z2

Applicable Signal Tower model : LR6 series

Current consumption : typ.20mA

Line-of-sight radio range : 20m

Product Details

Signal Tower LR5 type dedicated transmitter

WDT-5LR-Z2

Applicable Signal Tower model : LR5 series

Current consumption : typ.20mA

Line-of-sight radio range : 20m

Product Details

※ Due to the characteristics of radio waves, numerical values are for reference only.

Remote Controller Installation

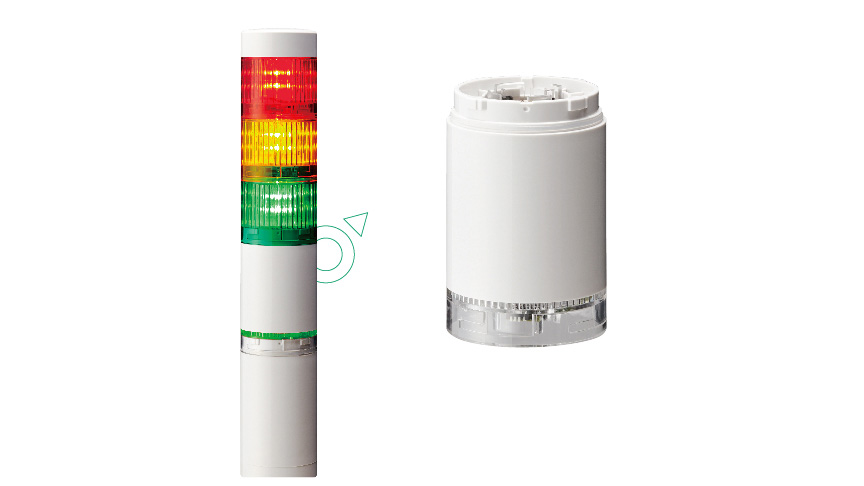

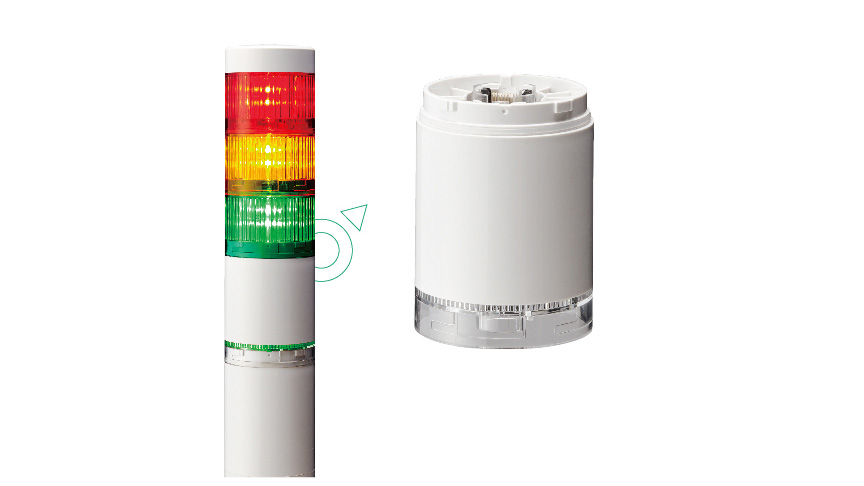

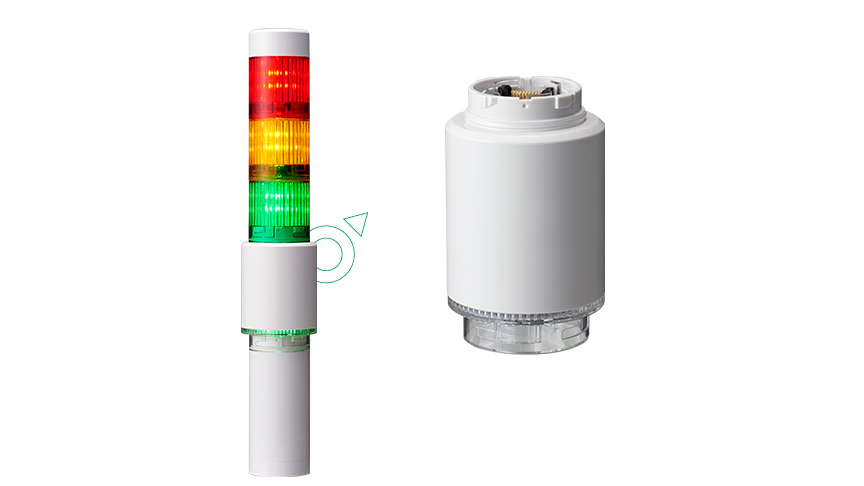

The LED unit can be easily mounted with one touch by turning it. Conventional products require the use of tools, but WD-LR-Z2 eliminates the need and reduces man-hours.

Specifications
Transmitter Specifications
Model WDT-5LR-Z2 WDT-6LR-Z2 WDT-5E-Z2 WDT-6M-Z2
Connected models LR5 type laminated signalling lamp LR6 type laminated signalling lamp LE type laminated signalling lamp※1 LME type laminated signalling lamp※1
Rated Voltage DC24V
Permissible range of voltage DC19.0~DC26.4V DC21.6V~DC26.4V
Rated current 55mA 20mA
Ambient temperature -10℃~+50℃ -10℃~+60℃
Storage Humidity 85%RH or less, non-condensing
Ambient temperature for storage -20℃~+60℃ -20°C to 70°C (no freezing)
Storage Humidity 85%RH or less, non-condensing
Mounting position Body unit top mounting Laminated signal lamp top mounted
Mounting location Indoor
Mounting direction Positive direction
Protection Rating IP65( IEC 60529)、NEMA TYPE 4X,13 Compliant with Mounting Laminated Signal Towers (LE Type) Compliant with mounting laminated signal lamp (LME type)
Mass 74g 85g 52g
Number of contacts that can be transmitted 6 points (Red, Amber, Green, Blue, White, Buzzer) 4 points (4 points from red, Amber, green, blue, and white)*2
Input judgment time 100msec or more
Display Status Indicator
Operation unit Dip switch for setting
External control input Input a control signal

※1 Some models may become unusable.
※ 2 1 point is for power supply, so the number of contacts that can be used is 4.

WD PRO series

Wireless Data Acquisition SystemWD PRO Series

Easy visualization of 4M based on facility operation analyses.

WD PRO transmitter

WDT-6LR-Z2-PRO

Applicable Signal Tower model : LR6 Series

Current consumption : MAX110mA
Total value of transmitter and base unit

Line-of-sight radio range : 20m

※ Due to the characteristics of radio waves, numerical values are for reference only.

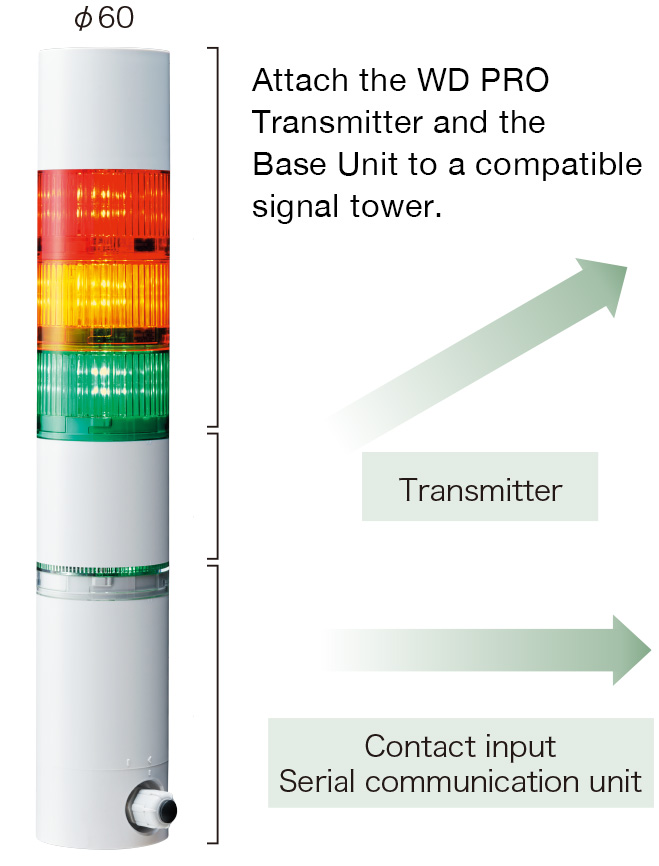

WD PRO base unit

WDB-D80S-PRO

RS-232C

Parallel : 8-point input

Clear input

NOTE) A WDT-6LR-Z2 cannot be connected to the WDB-PRO.

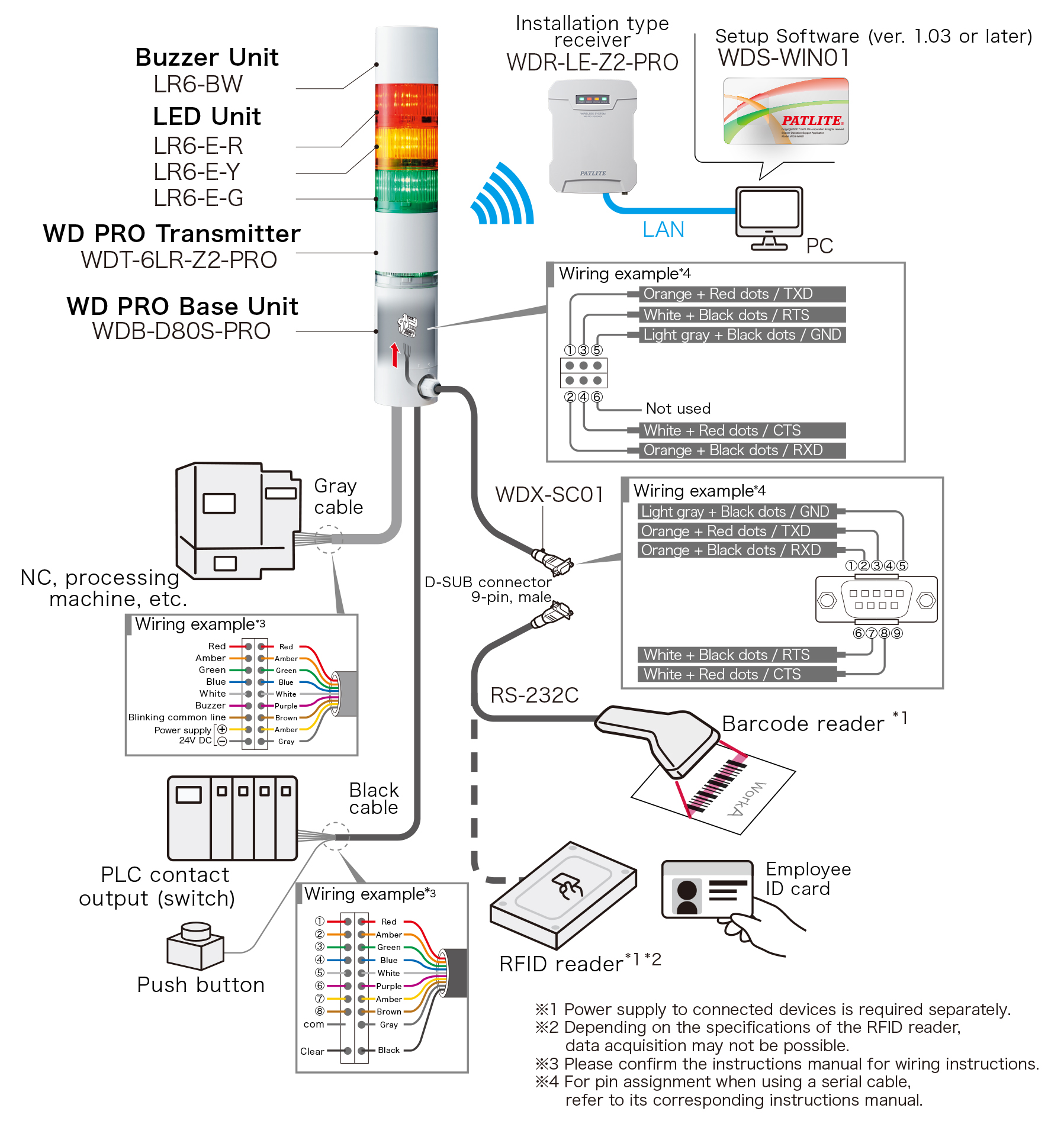

Configuration of WD PRO systems
Specifications
Transmitter Specifications
Model WDT-6LR-Z2-PRO
Connected models WDB-D80S-PRO
Rated Voltage DC24V
Permissible range of voltage DC24V ±10%
Rated current 110mA max.*When WDT-6LR-Z2-PRO is connected, when DC24V is applied
Ambient temperature -10℃~+50℃
Ambient Humidity 85%RH or less, non-condensing
Ambient temperature for storage -20℃~+60℃
Storage Humidity 85%RH or less, non-condensing
Mounting position WDB-D80S-PRO top mounting
Mounting location Indoor
Mounting direction Positive direction
Protection Rating IP65 (IEC 60529)、NEMA TYPE 4X,13
Mass 90g
Number of contacts that can be transmitted 6 points (Red, Amber, Green, Blue, White, Buzzer) + 8 points (Binary control 255 points) + Clear input 1 point
Input judgment time 100msec or more
Display Status Indicator
Operation unit Dip switch for setting
External control input Input a control signal
