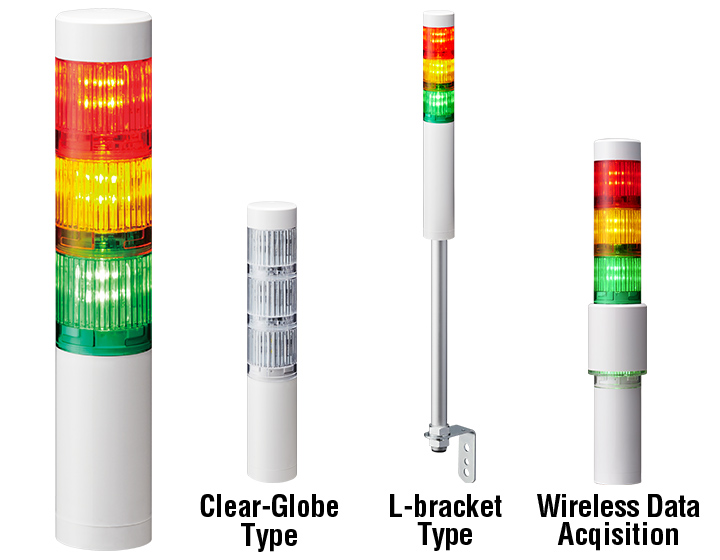

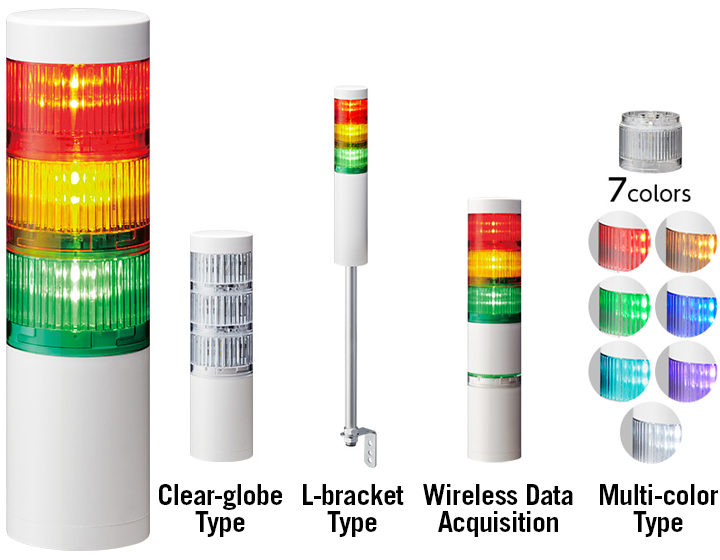

Lineup

LR Series

LR440mm

LR4
Product Features
  • Φ40
  • Modular

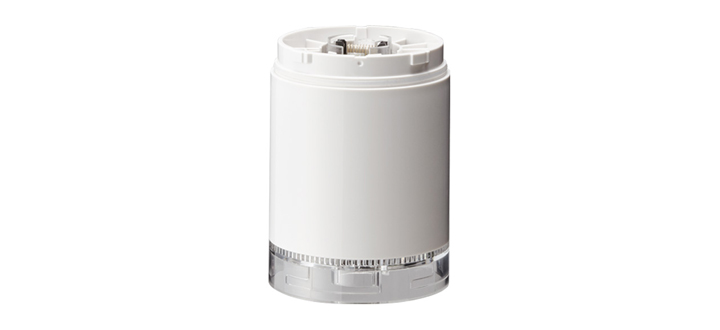

  • 4 Sounds
  • 85dB at 1m
  • M-12 Connector
  • IP65
Model Specifications
Rated Voltage:
DC24V, AC100-240V
Mounting Type:
Direct Mount ( WJ ), Pole Mount with Circular Bracket ( PJ ),
Pole Mount with L-Bracket ( LJ ), Folding Bracket ( QJ )(for DC24V only)
Wiring:
Cable
Product Material:
Polycarbonate Resin
Lens Color:
Colored Lens, Clear Lens
Wireless Data Acquisition:
No

LR550mm

LR5
Product Features
  • Φ50
  • Modular

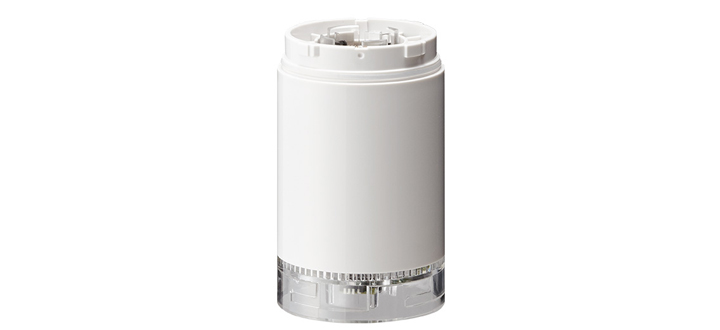

  • 4 Sounds
  • 85dB at 1m
  • Open Collector
  • IP65
Model Specifications
Rated Voltage:
DC12V, DC24V
Mounting Type:
Direct Mount ( WJ ), Pole Mount with Circular Bracket
( PJ ), Pole Mount with L-Bracket ( LJ )
Wiring:
Cable, Terminal block (DC24V only)
Product Material:
Polycarbonate Resin
Lens Color:
Colored Lens, Clear Lens
Wireless Data Acquisition:
Yes

LR660mm

LR6
Product Features
  • Φ60
  • Modular
  • 4 Sounds
  • 88dB at 1m
  • Open Collector
  • IP65
Model Specifications
Rated Voltage:
DC24V, AC100-240V
Mounting Type:
Direct Mount ( WJ ), Pole Mount with Circular Bracket ( PJ ),
Pole Mount with L-Bracket ( LJ ), Folding Bracket ( QJ )(for DC24V only)
Wiring:
Cable, Terminal block (DC24V only)
Product Material:
Polycarbonate Resin
Lens Color:
Colored Lens, Clear Lens, Multi-Color LED Unit
Wireless Data Acquisition:
Yes

LR770mm

LR7
Product Features
  • Φ70
  • Modular
  • 4 Sounds
  • 90dB at 1m
  • Open Collector
  • IP65
Model Specifications
Rated Voltage:
DC24V
Mounting Type:
Direct Mount ( WJ ), Pole Mount with Circular Bracket ( PJ ),
Pole Mount with L-Bracket ( LJ )
Wiring:
Cable, Terminal block (DC24V only)
Product Material:
Polycarbonate Resin
Lens Color:
Colored Lens, Clear Lens
Wireless Data Acquisition:
No

IoT

WDT-5LR-Z2
Wireless Data Transmitter

WDT-5LR-Z2
Compatible with LR5

WDT-6LR-Z2
Wireless Data Transmitter

WDT-6LR-Z2
Compatible with LR6

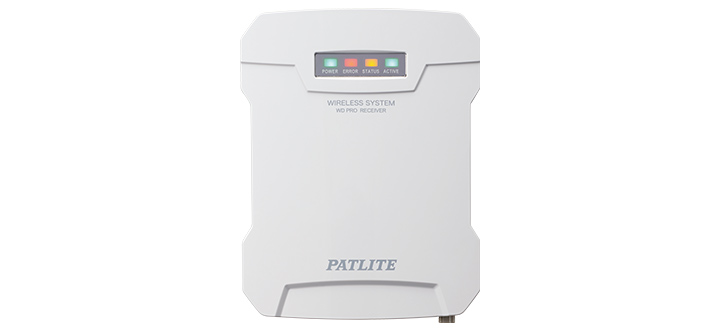

WDR-LE-Z2
Wireless Data Receiver

WDR-LE-Z2

Optional Parts

SZP-001W
Circular Bracket

SZP-001W
Compatible Models:
LR4-PJ/QJ, LR5-PJ, LR6-PJ/QJ
Compatible Poles:
POLE22-0100AN, POLE22-0300AN


SZP-002U
Circular Bracket

SZP-002U
Compatible Models:
LR4-PJ/QJ, LR5-PJ, LR6-PJ/QJ
Compatible Poles:
POLE22-0100AN, POLE22-0300AN,
POLE22-0500AN, POLE22-0800AN, POLE22-1000AN

SZP-003W/U/K
Circular Bracket

SZP-003W/U/K
Compatible Models:
LR4-PJ/QJ, LR5-PJ, LR6-PJ/QJ
Compatible Poles:
POLE22-0100AN, POLE22-0300AN


* W = Off-white, U = Silver, K = Black

SZ-016A
Circular Bracket

SZ-016A
Compatible Models:
LR4-PJ/QJ, LR5-PJ, LR6-PJ/QJ
Compatible Poles:
POLE22-0100AN, POLE22-0300AN, POLE22-0500AN,
POLE22-0800AN, POLE22-1000AN

* W = Off-white, U = Silver, K = Black

SZ-010
Circular Bracket

SZ-010
Compatible Models:
LR4-PJ/QJ, LR5-PJ, LR6-PJ/QJ
Compatible Poles:
POLE22-0100AN, POLE22-0300AN, POLE22-0500AN,
POLE22-0800AN, POLE22-1000AN
POLE22-0100AT, POLE22-0300AT, POLE22-0500AT,
POLE22-0800AT, POLE22-1000AT

SZW-001W
Circular Bracket

SZW-001W
Compatible Models:
LR4-WJ, LR5-WJ/WT, LR6-WJ






SZP-090U
1/2" NPT Pole Adapter

SZP-090U
Compatible Models:
LR4-WJ, LR50WJ/WT

SZP-091U
1/2" NPT Pole Adapter

SZP-091U
Compatible Models:
LR6-WJ, LR7-WJ/WT

SZK-001U
Wall-mount Bracket

SZK-001U
Compatible Models:
LR4-PJ/QJ, LR5-PJ, LR6-PJ/QJ
Compatible Poles:
POLE22-0100AN, POLE22-0300AN, POLE22-0500AN,
POLE22-0800AN, POLE22-1000AN
POLE22-0100AT, POLE22-0300AT, POLE22-0500AT,
POLE22-0800AT, POLE22-1000AT

SZ-020
Wall-mount Bracket

SZ-020
Compatible Models:
LR4-PJ/QJ, LR5-PJ, LR6-PJ/QJ
Compatible Poles:
POLE22-0100AN, POLE22-0300AN,
POLE22-0100AT, POLE22-0300AT



SZK-002W/U/K
Wall-mount Bracket

SZK-002W/U/K
Compatible Models:
LR4-WJ, LR50WJ/WT

* W = Off-white, U = Silver, K = Black

SZK-003W/U/K
Wall-mount Bracket

SZK-003W/U/K
Compatible Models:
LR6-WJ, LR7-WJ/WT

* W = Off-white, U = Silver, K = Black

SZK-004W
Wall-mount Bracket

SZK-004W
Compatible Models:
LR6-WJ, LR7-WJ/WT



SZQ-001W
Angle Bracket

SZQ-001W
Compatible Models:
LR4-PJ/QJ, LR5-PJ, LR6-PJ/QJ
Compatible Poles:
POLE22-0100AN, POLE22-0300AN

SZL-001
L-Bracket

SZL-001
Compatible Models:
LR4-LJ, LR5-LJ, LR6-LJ
Compatible Poles:
POLE22-0100AT, POLE22-0300AT, POLE22-0500AT,
POLE22-0800AT, POLE22-1000AT

SZ-904
L-Bracket

SZ-904
Compatible Models:
LR4-LJ, LR5-LJ, LR6-LJ
Compatible Poles:
POLE22-0100AT, POLE22-0300AT, POLE22-0500AT,
POLE22-0800AT, POLE22-1000AT

POLE22-AT
Threaded Pole

POLE22-T
Compatible Models:
LR4-PJ/QJ/LJ, LR5-PJ/LJ/KT, LR6-PJ/QJ/LJ
Compatible Bracket:
SZL-001

POLE22-AN
Non-Threaded Pole

POLE22-N
Compatible Models:
LR4-PJ/QJ/LJ, LR5-PJ/LJ, LR6-PJ/QJ/LJ
Compatible Brackets:

  SZP-001W SZP-002U SZP-003W SZQ-001W SZK-001U
POLE22-0100AN Y Y Y Y Y
POLE22-0300AN Y Y Y Y Y
POLE22-0500AN N Y N N Y
POLE22-0800AN N Y N N Y
POLE22-1000AN N Y N N Y

Replacement Parts

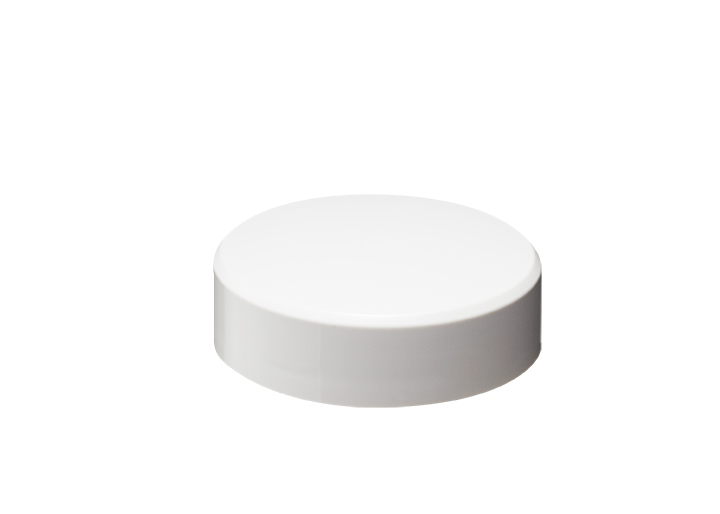

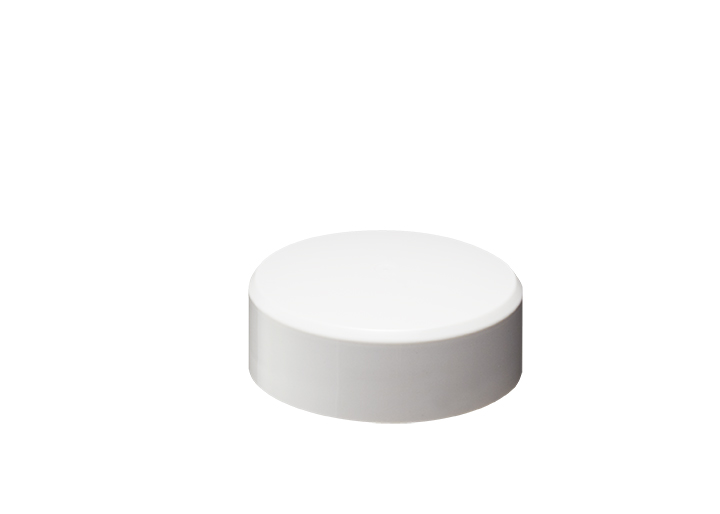

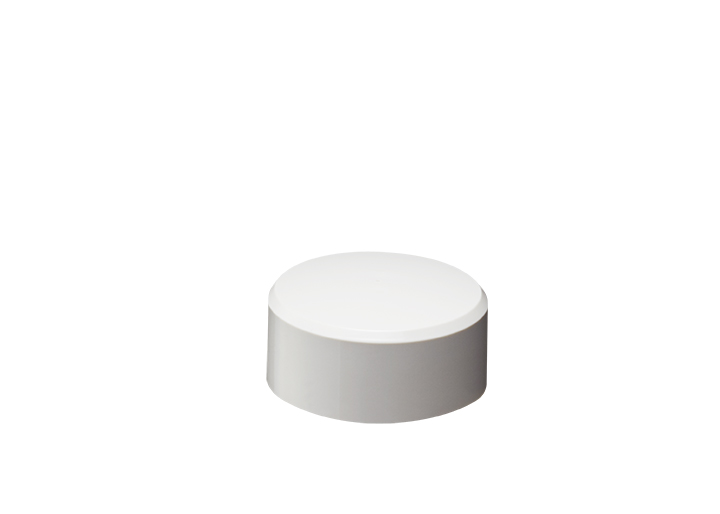

Headcover 40

Headcover 40
Off White:
B32310070-7F1
Silver:
B32310070-9F1

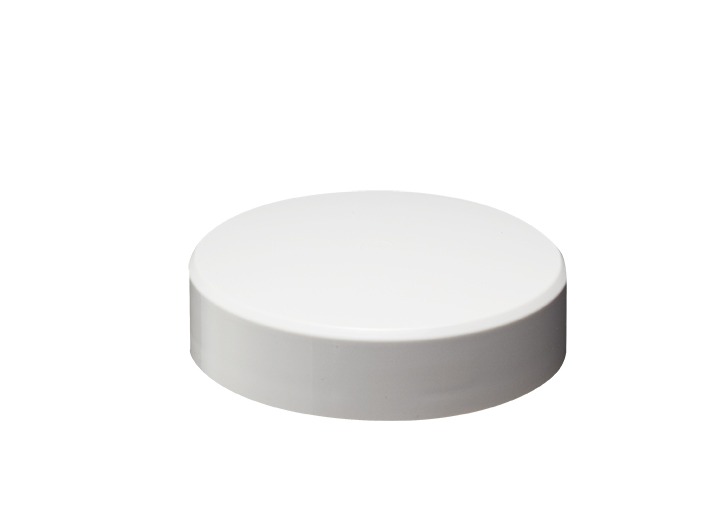

Headcover 50

Headcover 50
Off White:
B32310071-7F1
Silver:
B32310071-9F11
Black:
B32310071-8F1

Headcover 60

Headcover 60
Off White:
B32310072-7F1
Silver:
B32310072-9F1


Headcover 70

Headcover 70
Off White:
B32310073-7F1
Silver:
B32310073-9F1
Black:
B32310073-8F1

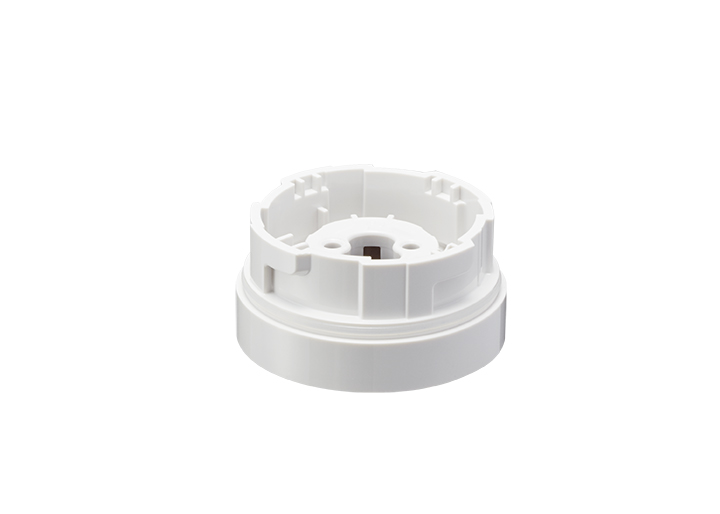

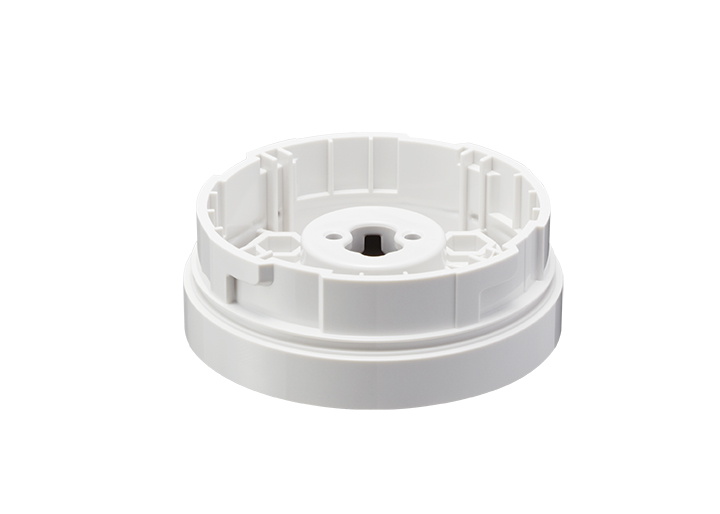

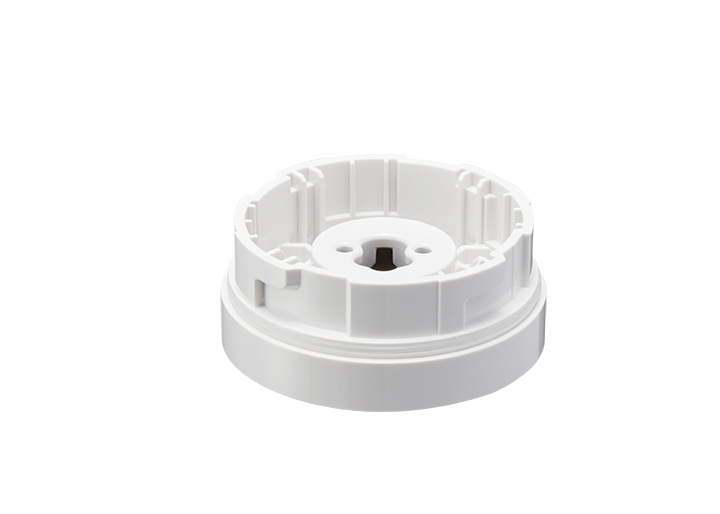

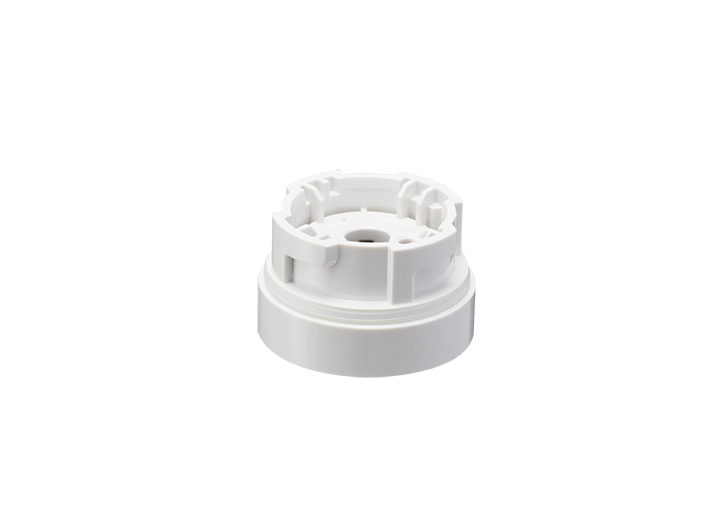

LR4 Pole Adaptor

LR4 Pole Adaptor
Off White:
B22210159-7F1
Silver:
B22210159-9F1


LR5 Pole Adaptor

LR5 Pole Adaptor
Off White:
B22210160-7F1
Silver:
B22210160-9F1
Black:
B22210160-8F1

LR6 Pole Adaptor

LR6 Pole Adaptor
Off White:
B22210161-7F1
Silver:
B22210161-9F1

LR7 Pole Adaptor

LR7 Pole Adaptor
Off White:
B22210178-7F1
Silver:
B22210178-9F1
Black:
B22210178-8F1

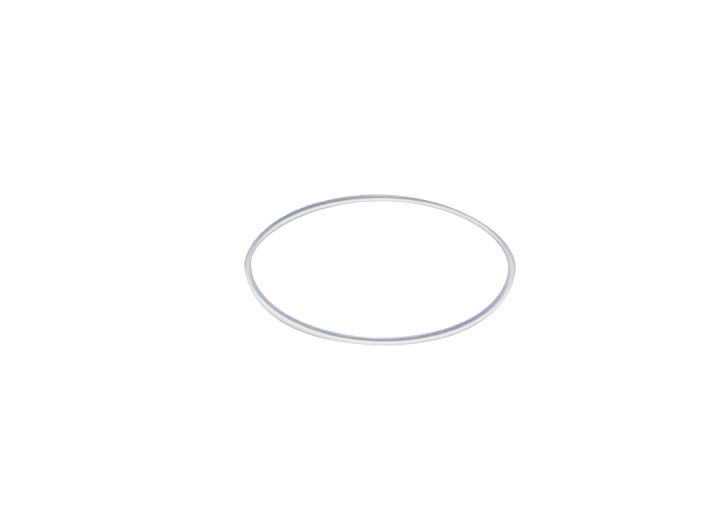

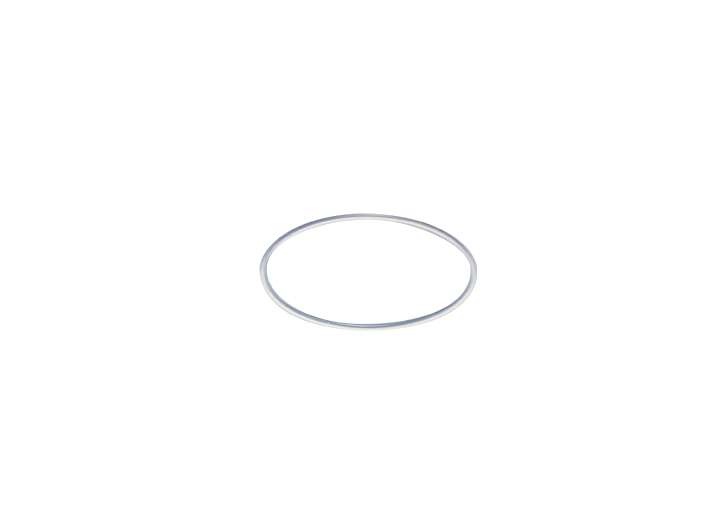

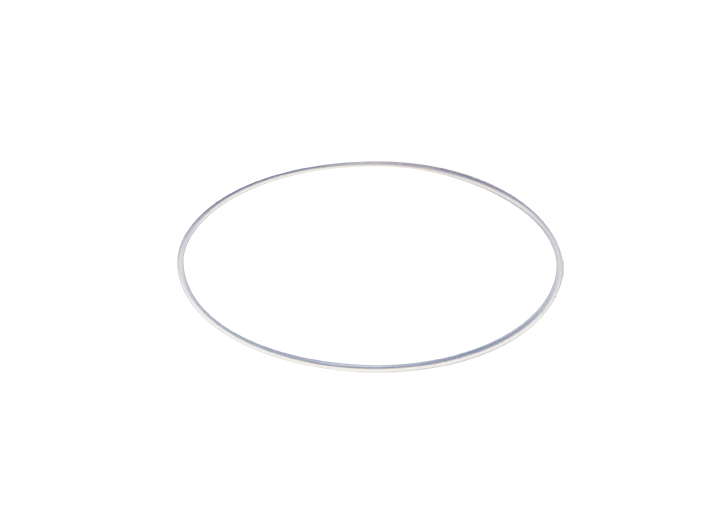

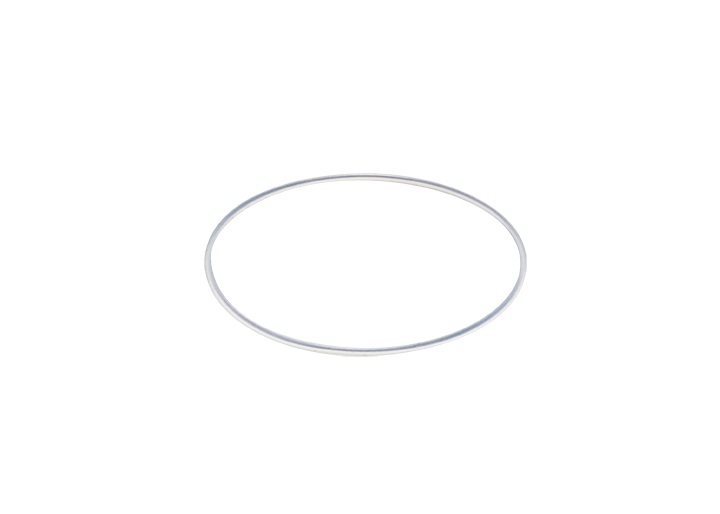

O-Ring 40

O-Ring 40

B25110065-F1

O-Ring 50

O-Ring 50

B25110066-F1

O-Ring 60

O-Ring 60

B25110067-F1

O-Ring 70

O-Ring 70

B25110068-F1

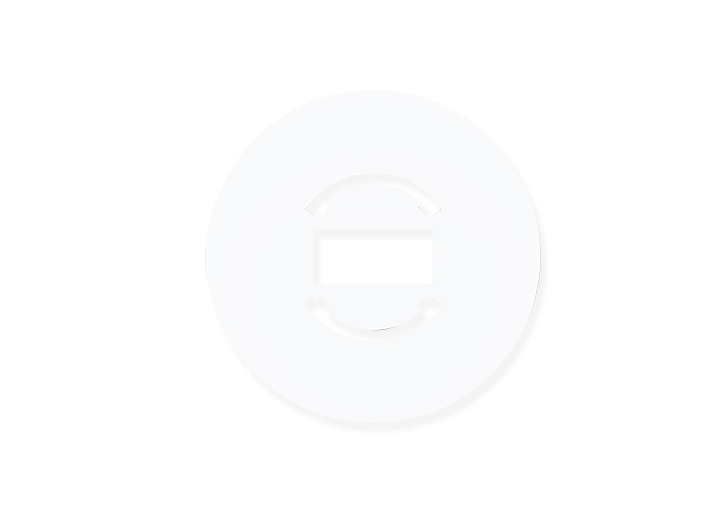

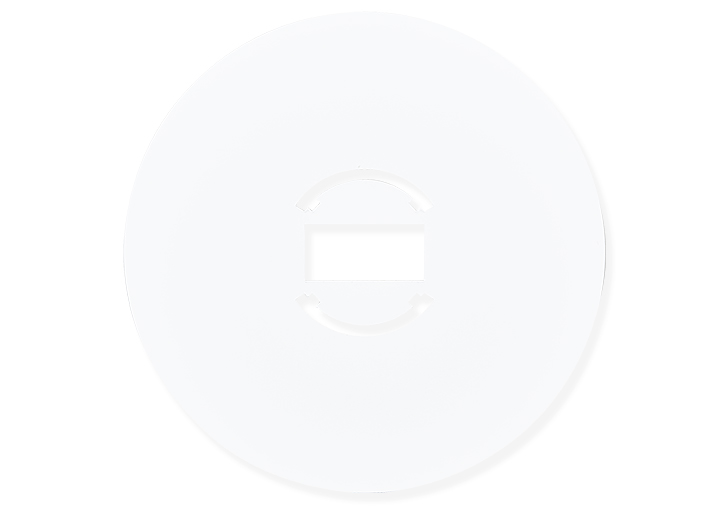

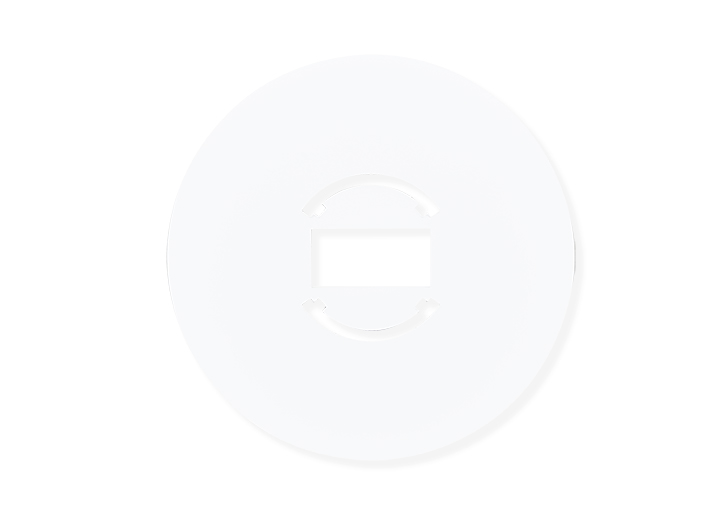

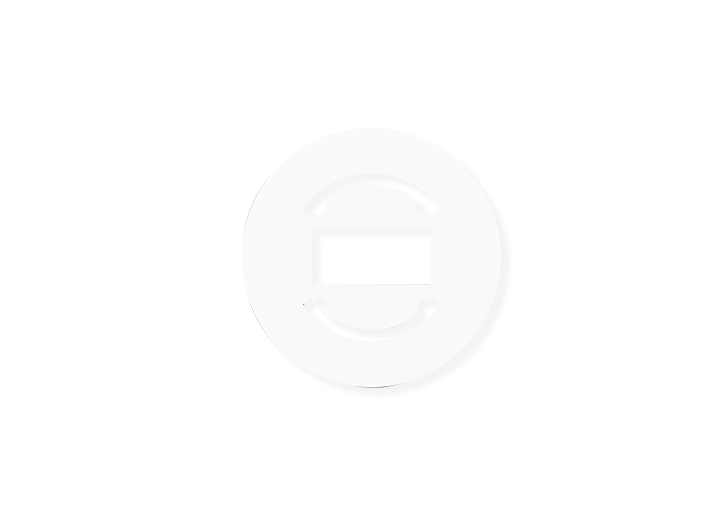

LR4 Filter Sheet

LR4 Filter Sheet

B25310067-4F1

LR5 Filter Sheet

LR5 Filter Sheet

B25310067-5F1

LR6 Filter Sheet

LR6 Filter Sheet

B25310067-6F1

LR7 Filter Sheet

LR7 Filter Sheet

B25310067-7F1

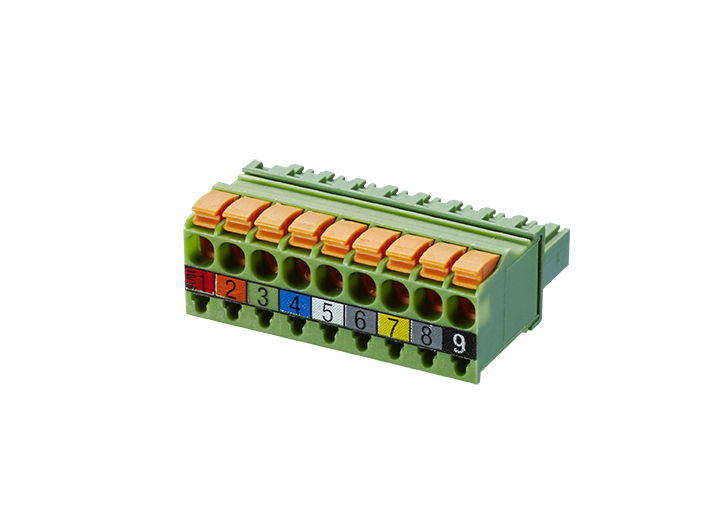

Terminal Block

Terminal Block
For LR5 & LR7 only:
Z69544511-F1
