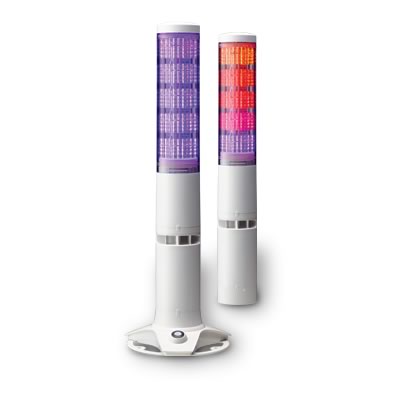

LA6-POE

Fully Customizable, PC Programmable LED Signal Tower with Ethernet Connectivity

The LA6-POE supports PoE (Power over Ethernet), eliminating the need for input and output modules for PLCs or running wires. A free, easy to use PC programming interface is available to configure the light and sound patterns of the signal tower for customization to your specific signaling needs.

  • Φ60mm
  • 21 Colors
  • 11 Alarm Sounds
  • Power over Ethernet
  • IP54/IP20
Rated Voltage: 24V DC / 48V DC (PoE)
Tiers: 5
Body Color: Off-white
Mounting: Direct Mount / Stationary
IP Rating: IP54 / IP20 (Stationary Type)
Protocol: Modbus TCP UDP / HTTP
Sound Pressure: 85dB (at 1m)
  • Features
  • Function

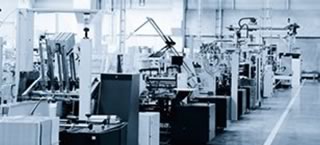

  • Applications

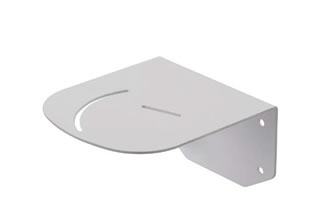

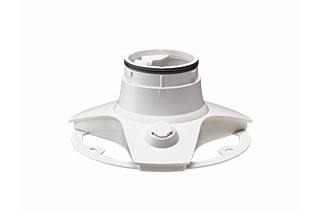

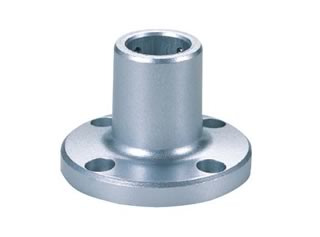

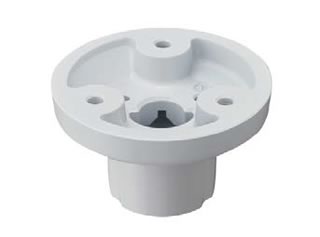

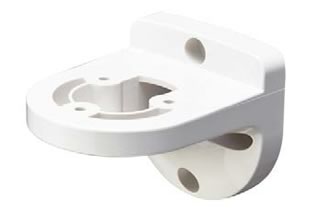

  • Optional Parts
  • Programmable, multi-color signal tower designed to replace standard stack lights
  • Features 21 LED colors and 11 alarm types
  • Ethernet connection with PoE (Power over Ethernet) support, enabling single cable installations
  • Supports a range of communication protocols
  • Built-in web interface for quick and easy configuration

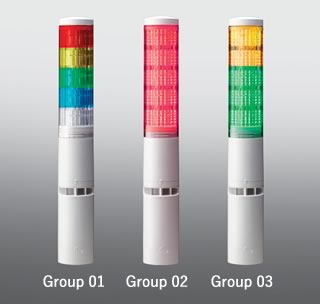

  • Mirroring function: Replicates signals on up to 8 slave devices in remote locations
Connects easily to an existing network
Alarm volume toggle switch
Water-resistant alarm structure
Lens design optimizes light emission

1. Smart Mode

The EDITOR software for the LA6 series allows you to quickly configure your LA6 signal tower.

  • * Animations: Light color cycling resembling flashing, pulsing, running lights, etc.; can also include an audible alarm
  • * Patterns: Any combination of solid colors and/or audible alarm.

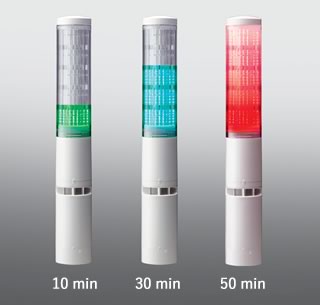

  1. 1. Time Trigger Mode

    Display animations that transition at preset timings.

    Animations are initially triggered by an input command and then run based on set timings. Common Applications: Production Cycle Time, Takt Time System

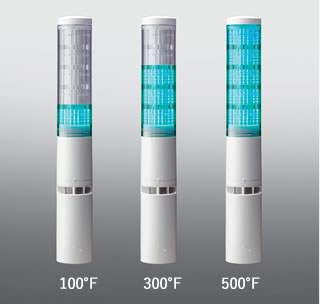

  2. 2. Pulse Trigger Mode

    Display animations or patterns in fixed sequences. Sequences are triggered by inputs, commands or setting elapsed times.

    Common Applications: Pressure or Temperature Display

  3. 3. Single Light Mode

    Display a single pattern at a time and trigger pattern transitions by input or command.

    Common Applications: Status Indication, Level Monitoring

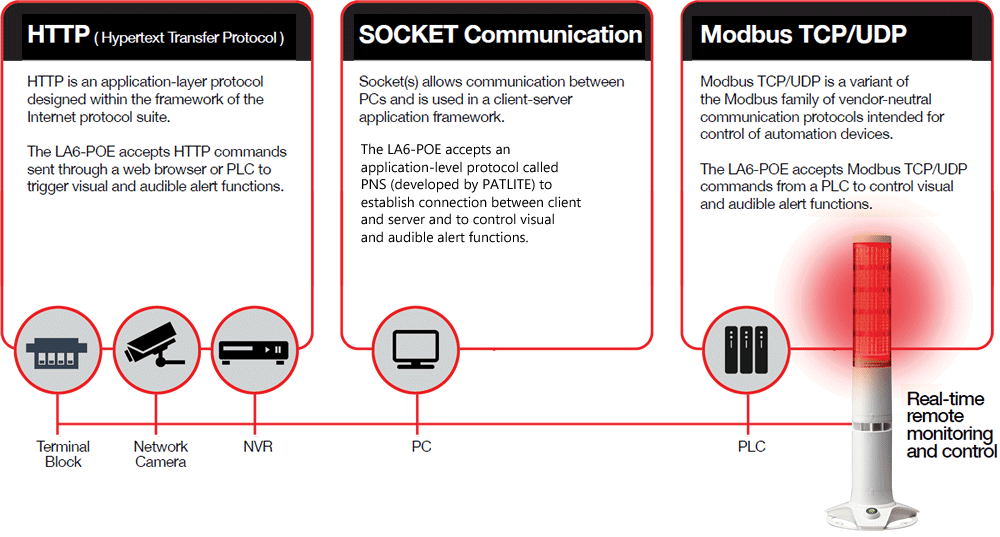

2. Input Methods

The LA6-POE supports a variety of communications protocols or it can also be triggered through the terminal block.
