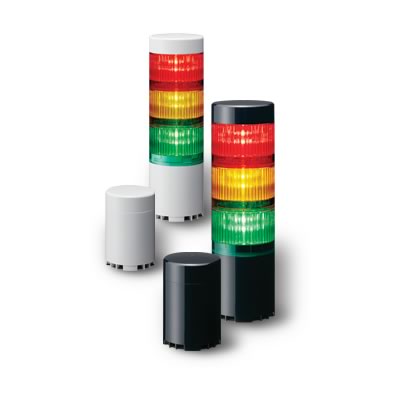

USB-Controlled Signal Tower

Directly triggered and powered via USB interface, the LR6-USB allows for easy single cord installation. With open architecture for custom programming compatible with Windows® and Linux, the USB-enabled signaling can be used for a variety of applications.

  • Φ60mm
  • Windows®
  • Linux
  • USB
  • 5 Alarm Sounds
Rated Voltage: 5V DC
Tiers: Up to 5 tiers
Body Color: Off-white / Black
Mounting: Direct Mount / Wall Mount / Pole Mount
IP Rating: IP65
Sound Pressure: 80dB (at 1m)
  • Features
  • Function

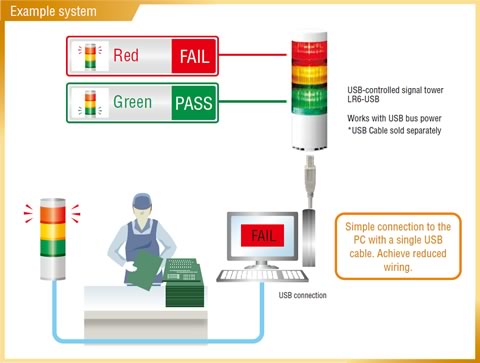

  • Applications

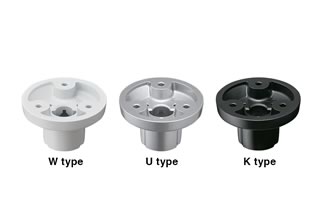

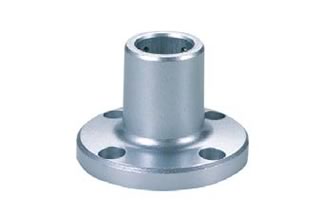

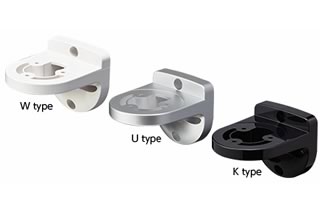

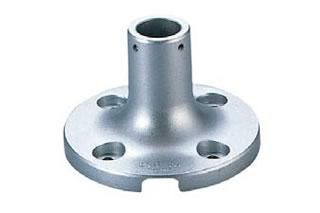

  • Optional Parts
  • Powered over USB for single cable installation
  • Compatible with Windows® and Linux
  • DLL software library included
  • Dedicated driver is not required as it is USB HID class compatible
  • Modular LED units
  • Built in flash function
  • Image

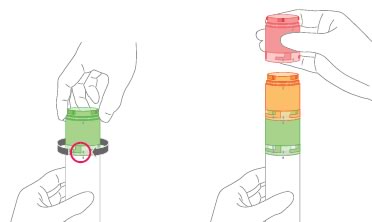

    Easy LED Reconfiguration
  • Image

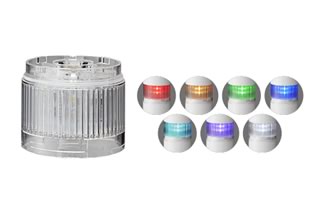

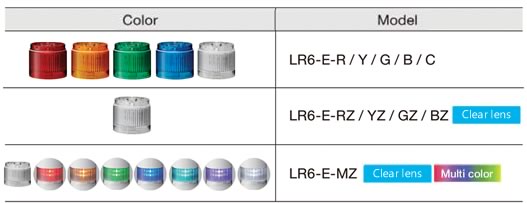

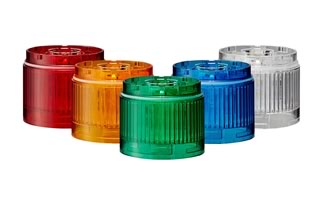

    LR6 LED Units
  • Open architecture for custom programming (Windows/Linux)
  • Use the DLL library to easily develop software to trigger various signaling functions on the LR6-USB
  • Select from 4 sound patterns
  • PC or HMI controlled
