PHE-3FB3-RYG

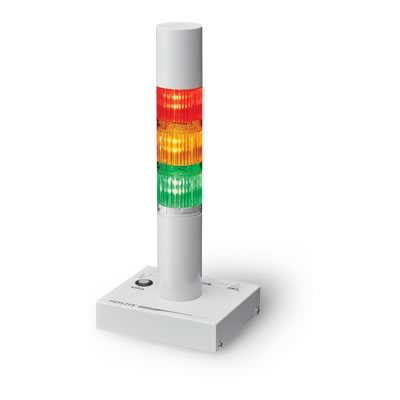

Interface Converter with Signal Tower

Send commands from remote locations to PATLITE signal towers or audible alarms

  • Φ40mm
  • USB
  • RS-232C
  • ASCII
  • 4 Alarm Sounds
Rated Voltage: 24V DC (Main Unit) / 5V DC (USB Bus Power)
Tiers: Up to 5 tiers
Body Color: Off-white
Mounting: Stationary
Flashing: 2 flash patterns
Sound Pressure: 80dB (at 1m)
  • Features
  • Function

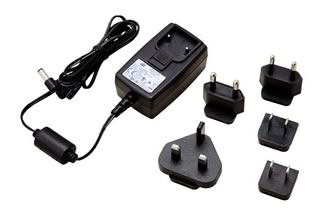

  • Optional Parts
  • Receive power over USB or a 24V DC supply source
  • Modular LED units
  • 2 built-in flash functions
  • 4 built-in alarm sounds with adjustable volume up to 80 dB
  • Image

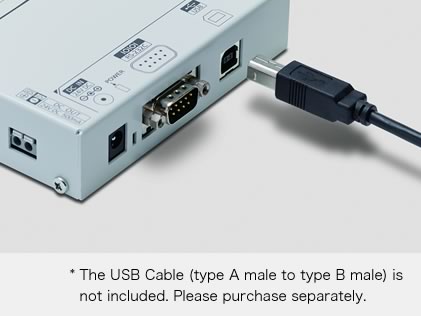

    Detail of Ports
  • Image

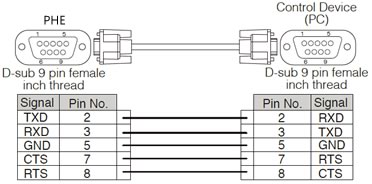

    Wiring for RS-232C Port
  • Image

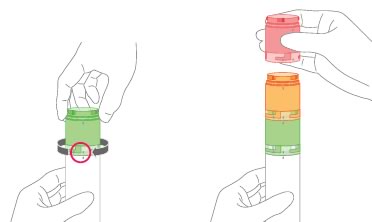

    Easy LED Reconfiguration
  • Send ASCII Commands over USB/RS-232C to control PATLITE signaling devices
  • Clear switch to reset visual and audible alerts once an alert is confirmed
