WE-LAN

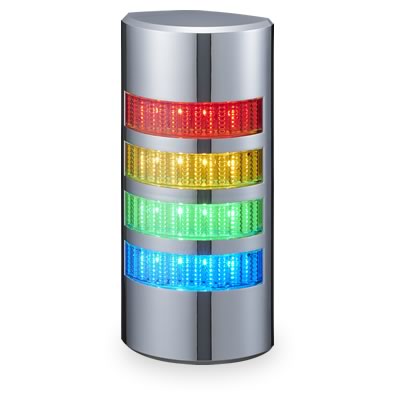

Wall-mounted slim-type signal tower that provides a variety of information using a network

WE-LAN can be controlled by communication via Ethernet cable (RJ-45). The multi-color LEDs and increased number of light emission patterns enable a variety of expressions. Although a separate power supply line is required, it reduces wiring man-hours compared to conventional discrete-wire type products.

  • W90mm
  • D37.5mm
  • 9 Colors
  • 9 Lighting patterns
  • IP23
Rated Voltage: 24V DC
Tiers: 4
Body Color: Silver
Mounting: Direct Mount
IP Rating: IP23
Protocol: Modbus TCP / HTTP / SOCKET
Sound Pressure: 88 dB (at 1m)
  • Features
  • Function
  • Various expressions for different usage scenarios
  • Easy and secure use with general-purpose protocols Supports HTTP, Modbus/TCP, and socket communications
  • Communication via RJ-45 female connector from WE-LAN main unit
  • Pursuit of thinness has reduced the depth to 37.5 mm, improving the sense of integration with equipment and facilities
  • Detailed main unit settings including IP address can be configured on a web browser
  • Various standards acquired, can be used globally
Wall Mounting
Compact and slim design
Ethernet (RJ-45) control
Easy web browser setup

1. Light patterns

●Various expressions according to usage scenarios (All steps illuminated in the same color / 9 different color expressions / Flowing display / Firefly-like blinking)

All steps illuminated in the same color
Flowing display
9 different color expressions
Firefly-like blinking

2. Input method

The WE-LAN supports a variety of communications protocols.
