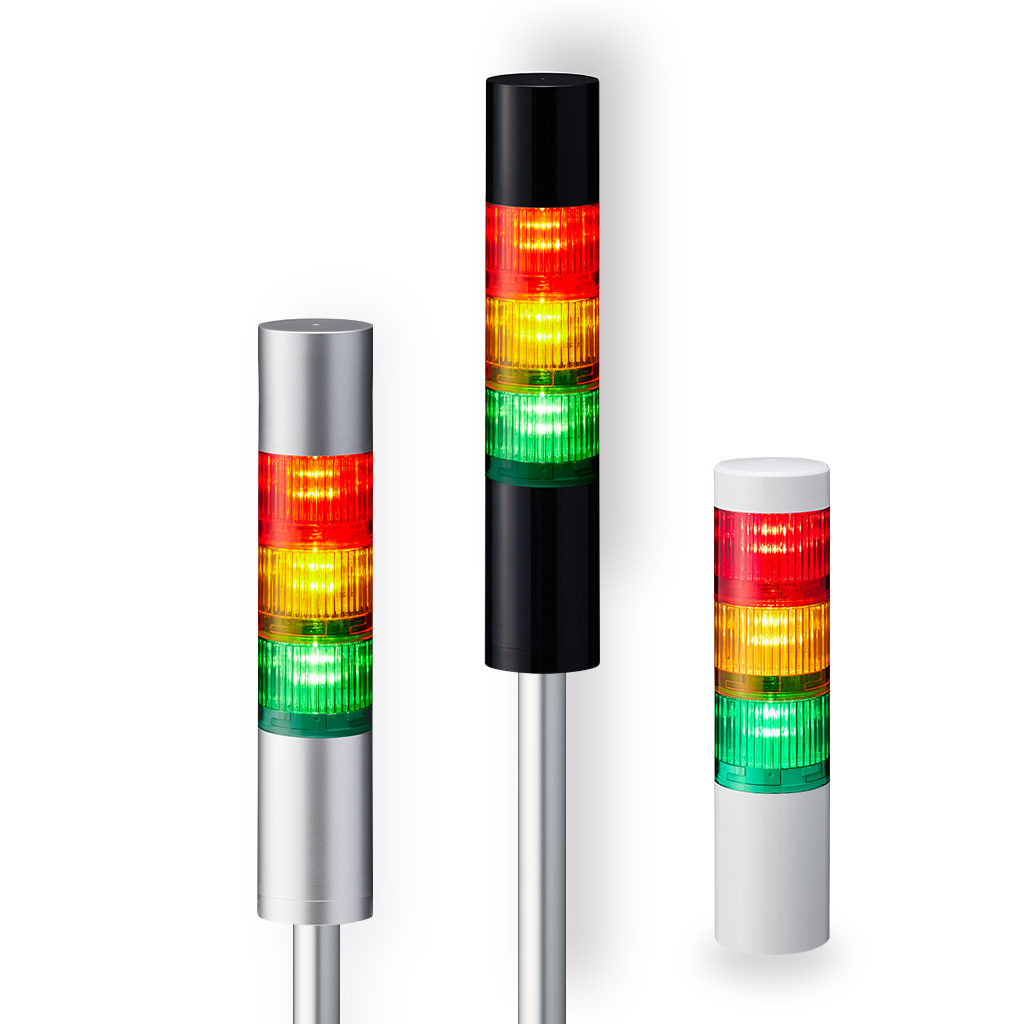

LR5-LAN

Direct LAN Control from Industrial PC/PLC

Simple Configuration & Easy Notification Setup

Φ50mm
HTTP(S)
Modbus/TCP
SOCKET
EtherNet/IP
IP65/IP54

Rated Voltage:	24V DC
Tiers:	Up to 5
Body Color:	Off-white / Silver / Black

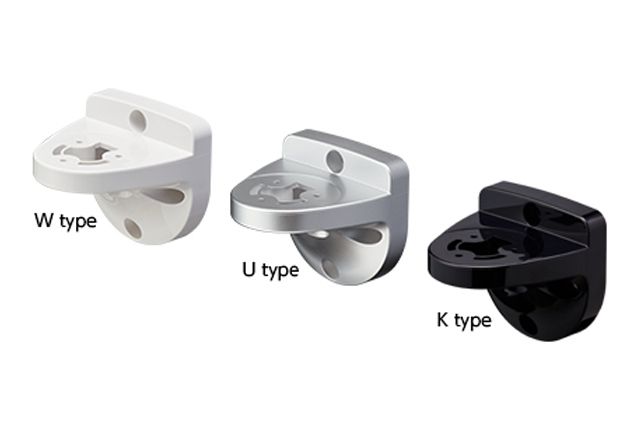

Mounting:	Direct Mount / Pole Mount with L-bracket / Short Pole Mount with L-bracket
IP Rating:	IP65 (Direct Mount) / IP54 (Pole Mount / Short Pole Mount)
Protocol:	HTTP(S) / Modbus TCP / SOCKET (LR5-LAN) EtherNet/IP (LR5-LAN EtherNet/IP)
Sound Pressure:	85 dB (at 1m)

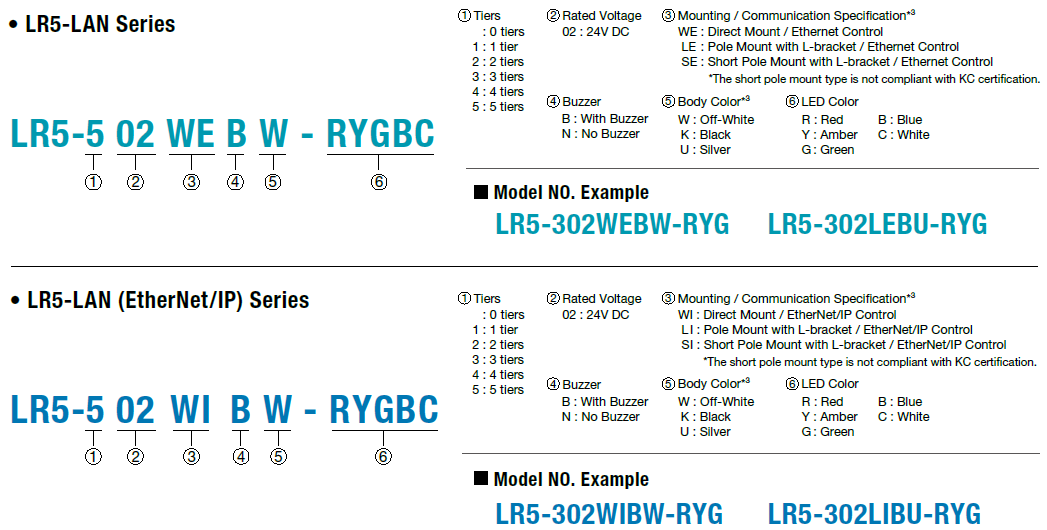

Model Number Configuration

Features
Function
Applications

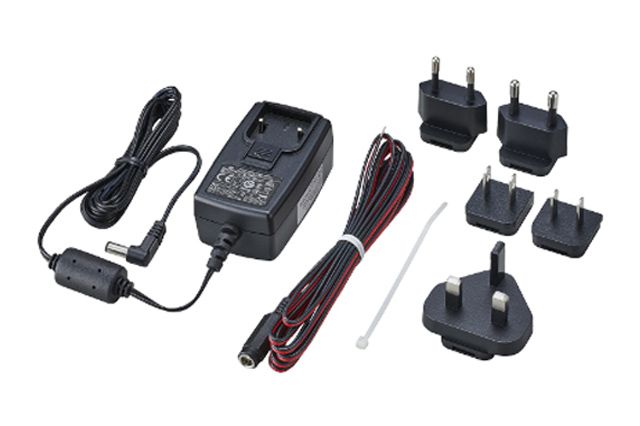

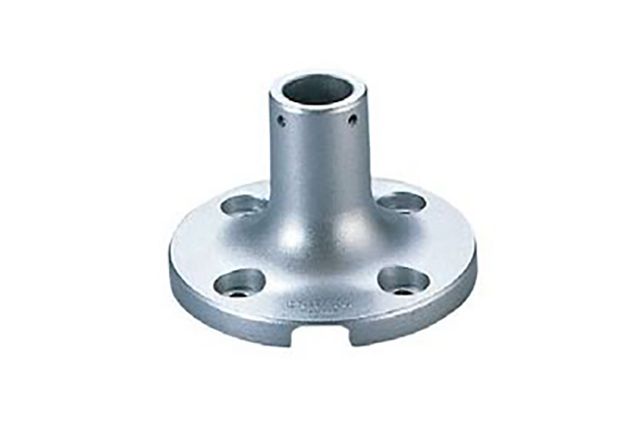

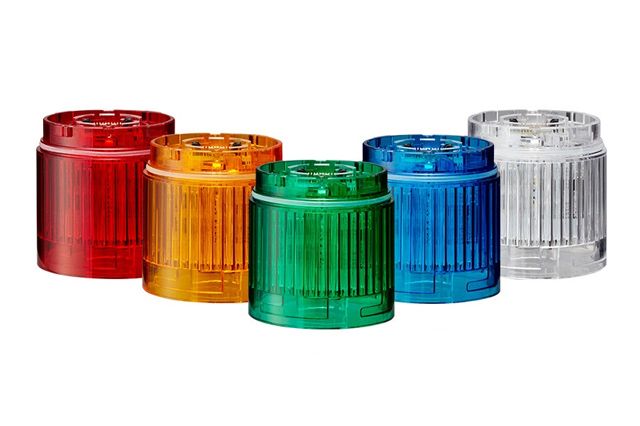

Optional Parts

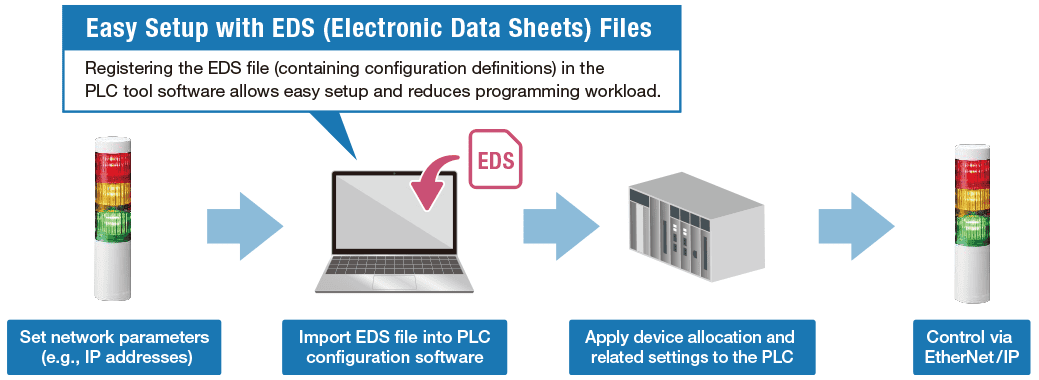

Compatible with EtherNet/IP, widely used in industrial networks

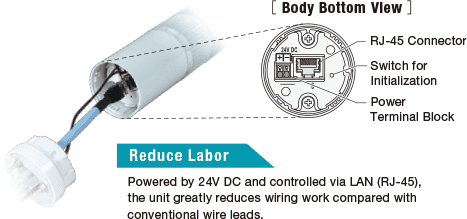

Significantly reduces wiring work
LAN connection removes the need for I/O, lowering overall costs
Enables remote diagnostics for status checks and data logging
Ensures real-time performance with PLC control
Allows flexible control setup through software

LR5-LAN Compatible Functions
Protocol	Socket	✔
	Modbus/TCP	✔
	HTTP(S)	✔
	EtherNet/IP	—
Monitoring	PING	✔
Monitoring	Modbus/TCP	✔

LR5-LAN EtherNet/IP Compatible Functions
Protocol	Socket	—
	Modbus/TCP	—
	HTTP(S)	—
	EtherNet/IP	✔
Monitoring	PING	✔
Monitoring	Modbus/TCP	—

Eliminating the need for an output board reduces both costs and maintenance effort by simplifying system components.

By enabling direct LAN control, LR5-LAN removes the need for additional output boards, reducing system complexity and lowering overall installation and maintenance costs.
