Network Monitor Signal Tower

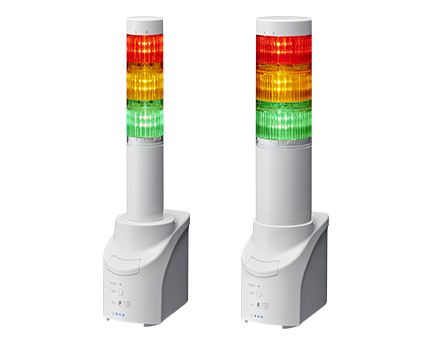

NHL-3FB2/NHP-3FB2
Network Monitor Signal Tower
Monitor your network and be notified in real-time of predesignated events and device failures via visual and audible alarm signals, and email alerts.
NetShopURL

Product Features

【Quicker Response】


  • Ping up to 24 devices and notify operators of ping failures in real-time with unambiguous visual and audible alerts.



【Know You're Connected】


  • The green LED unit can be configured to indicate the NHL's connection to your network.



【Customizable to Fit Your Application】


  • Standard configuration consists of a light tower with three LED segments and a programmable audible alarm with volume settings. Add up to 5 LED units for highly effective visual signaling.



【Email Notifications】


  • Alarms can trigger emails to be sent to up to 8 addresses per event so you will never miss a network signal.



【Protocol Support】


  • The NHL supports SNMP, HTTP, PNS (Developed by PATLITE), Socket Transmission command protocols. Alarms can send SNMP traps to network management systems.










Model Specifications

DIMENSIONSTower diameter: 60mm (NHL), 40mm (NHP)
OPERATING VOLTAGES24V DC (AC Adaptor 100V AC ~ 240V AC)
PROTOCOLS・Physical Layer: 10 BASE-T/100 BASE-TX
・Data Link Layer: CSMA/CD
・Network Layer: IP/ICMP/ARP
・Transport Layer: TCP/UDP
・Application Layer: HTTP/RSH/SMTP/SNMP/POP/DNS/Socket/NTP/DHCP
FUNCTIONS・Ping Device Monitor
・RSH Command
・SNMP v1・v2
・Self-diagnosis
・Application Monitor
・SOCKET
・ E-mail Transmission
BODY STYLE・Interface Converter Base: Off-white
・Tower: Off White
STACKABLE TIERS・3 tiers only
MODULE COLORS・LED source Color: Red / Amber / Green
・Lens Color: clear Lens
AUDIBLE STYLE・Alarm 1: selectable, Slow Intermittent
・Alarm 2: selectable, Fast Intermittent
・Alarm 3: Fast Burst
・Alarm 4: Continuous
CONFORMITY STANDARDS・RoHS Directive (EN 50581)
・EMC Directive (EN 55032, EN 55024)
・FCC Part15 Subpart B Class B, ICES-003 Class B
・UL 1638, UL 464 CSA C22.2 No.205
・KC (KN 61000-6-2, KN 61000-6-4)*1
・PSE Compliant AC Adaptor

*1：Only N type and W type
 CE Marking
 UL/cUL Listed
 W type is an international model.
